Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe
Specifications
Brand Name :
TORICH
Model Number :
ASTM A312
Certification :
ISO14001:2008,TS16949
Place of Origin :
ZHEJIANG,CHINA
MOQ :
5 Tons
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
60000 Tons/Year
Delivery Time :
30-45 work days
Packaging Details :
In bundles or in wooden boxes packaging.as per clients' options.
Delivery State :
Hot Rolled, Cold Drawn
Application :
liquid, water, gas, oil, boiler project, etc.
Surface :
Bright annealed, pickled, blasted or passivated.
OD :
10.3mm-609.6mm
WT :
0.2mm-60mm
Length :
5-12m or as you required
Brand :
TORICH
Description

ASTM A312 Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes

Product Description:

The standard specifications include seamless, straight seam welded and heavily cold welded austenitic stainless steel tubing for high temperature and general corrosive service. There are several grades in this standard, and each steel grade shall confirm to the required chemical composition of C, Mn, P, S, Si, Cr and Cr, Ni, Mo, etc. All the pipes shall be furnished in the heat-treated condition in accordance with the required heat treating temperature and cooling/testing requirements. And also need to comply to the required tensile strength and yield strength.

Chemical Composition:

Steel Grade ASTM A312 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 … … … . …
TP304H 0.04-0.10 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 … … … …
TP304L 0.035 D 2.00 0.045 0.030 1.00 18.0-20.0 8.0-13.0 … … … …
TP310S 0.08 2.00 0.045 0.030 1.00 24.0-26.0 19.0-22.0 0.75
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 11.0-14.0 2.00-3.00 … … …
TP316L 0.035 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 … … …
TP316H 0.04-0.10 2.00 0.045 0.030 1.00 16.0-18.0 11.0-14.0 2.00-3.00 … … …
TP316Ti 0.08 2.00 0.045 0.030 0.75 16.0-18.0 10.0-14.0 2.00-3.00 0.10 … 5x(C+N)-0.70
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 … 0.10 … 5C-0.70
TP321H 0.04-0.10 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 … … … 4C-0.60
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-13.0 10xC-1.00 …
TP347H 0.04-0.10 2.00 0.045 0.030 1.00 17.0-19.0 9.0-13.0 … … 8xC-1.00 …

Mechanical Property:

Grade UNS Tensile Strength
Min, Ksi [MPa]		 Yield Strength
Min, Ksi [MPa]
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]
TP304H S30409 75 [515] 30 [205]
TP304N S30451 80 [550] 35 [240]
TP304LN S30453 75 [515] 30 [205]
TP309S S30908 75 [515] 30 [205]
TP310S S31008 75 [515] 30 [205]
TP316 S31600 75 [515] 30 [205]
TP316L S31603 70 [485] 25 [170]
TP316H S31609 75 [515] 30 [205]
TP316N S31651 80 [550] 35 [240]
TP316LN S31653 75 [515] 30 [205]
TP317 S31700 75 [515] 30 [205]
TP317L S31703 75 [515] 30 [205]

Equivalent Steel Grade:

ASTM A312 JIS G3459 DIN 17440 BS NF
TP304 SUS 304 TP X5CrNi 18 9 304S18 A 49-230
TP304H SUS 304 HTP 304S59 A 49-214
TP310 304 LTP X2 CrNi 19 9 304S14 A 49-230
TP316 SUS 304L TP
TP316H 310STP X5 CrNiMo 18 10 316S18 A 35-573
TP316L SUS 316 TP 316S59 A 49-230
TP321 SUS 316 LTP X2 CrNiMo 18 10 316S14 A 49-230
TP347 316 HTP x10 CrNiTi 18 9 321S18 A 49-230
TP347H SUS 316 LTP X5 CrNiNb 18 9 347S18 A 35-573

Key Words:

Welded Pipes And Tubes

Austenitic Stainless Steel

Corrosive Service Applications Forming

Seamless Welded Tubes

Heavily Cold Worked Steel Tubes

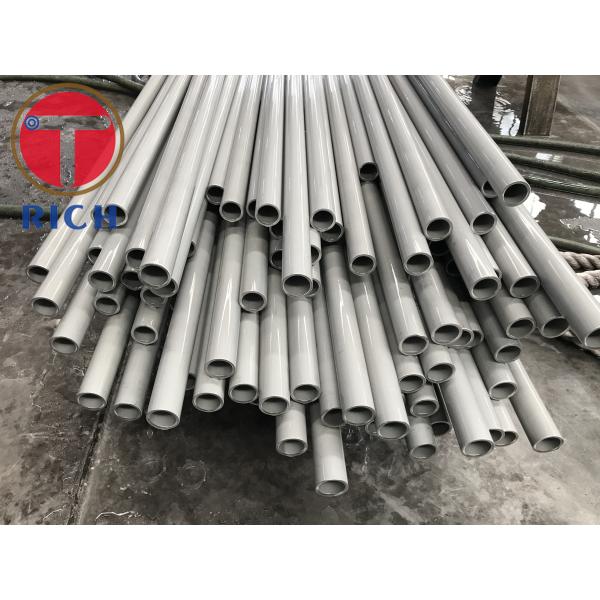

Product Pictures:

Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe

Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe

Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe

Packing and Delivery :

Cold Drawn OD 609.6mm ASTM A312 Stainless Welded Pipe

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

ASTM A312 Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipes
