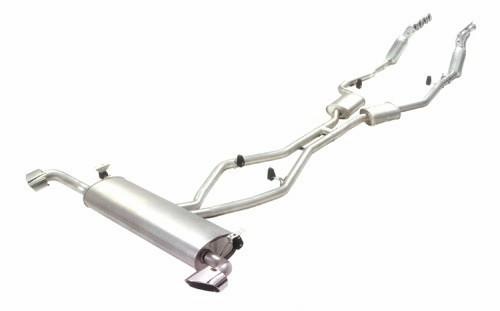

Automotive Cold Drawn Tubes Precision Steel Tubes For Car Exhaust System
Automotive Cold Drawn Tubes Precision Steel Tubes For Car Exhaust System
Specifications
Brand Name :
TORICH
Model Number :
ASTM A312
Certification :
ISO9001, ISO14001, TS16949
Place of Origin :
ZHEJIANG, CHINA
MOQ :
7 Tons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000Tons per Year
Delivery Time :
30-45 work days
Packaging Details :
Tubes are packed in wooden boxes or hexagonal bundles.
Keyword :
Stainless Steel Exhaust Tubing
Material :
316L/304/304L/310S
OD :
34 - 127 mm
WT :
0.8 - 2.5 mm
Length :
max 12000mm
Technique :
SEAMLESS or WELDED
Application :
Car Exhaust System
Surface finish :
Polishing
Description

ASTM A312 COLD DRAWN SEAMLESS PRECISION AUTOMOTIVE STEEL TUBES PIPE STAINLESS STEEL EXHAUST TUBING

1) Diameters: 4 - 76.2mm
2) W.T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S,etc.

4) standard:GB/ISO/EN/ASTM/JIS,etc.

5) application range:widely use in the foodstuff,medical equipment,power,boiler,cooler,auto,condenser etc.

6) packing: inner packing:1 pc/plastic bag;outer packing:bundles in weaving bags or in plywooden case.

Size accuracy


The outside path admission deviation that solder take care of includes the elliptical park a cent Ⅰ , Ⅱ two class, see the table 3, table 4.

ⅠOutside path in class deviation mm table 3 Outside path inⅡ class deviation mm table 4
Outside path Admission deviation
<25 ±0.10
≥25~38.1 ±0.15
>38.1~50 ±0.20
≥50~63.5 0.25
>63.5~76 ±0.30
≥76~102 ±0.40
Outside path Admission deviation
≤10 ±0.15
>10~32 ±0.20
>32~50 ±0.30
>50 ±0.8%

The thick the deviation of admission( do not include the weld sew) in wall of the weld tube is for ruling the wall thick 10% of ±, but minimum admission deviation is the 0.02 mms of ±.
The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.

The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.


2, The machine function sees the table 5 table 5

Steel number Card number The heat handles
Make degree		 The anti- pulls the strength
MPa		 Accept defeat the strength
MPa		 Extension rate% Degree of hardnessHRB
0Cr19N19 304 ≥1010°C
Nasty and cold		 ≥520 ≥205 40 ≤90
00Cr19Ni11 304L " " ≥480 ≥175 40 ≤90
0Cr17Ni12M02 316 " " ≥520 ≥205 40 ≤90
0Cr17Ni14M02 316L " " ≥480 ≥175 40 ≤90
0Cr18Ni11Ti 321 ≥920°C
Nasty and cold		 ≥520 ≥205 40 ≤90

QUALITY CONTROL:
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
