DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
Specifications
Brand Name :
TORICH
Model Number :
DIN2391
Certification :
ISO9001, TS16949
Place of Origin :
CHINA
MOQ :
5 tons
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
6000 ton/year
Delivery Time :
45-60 days
Packaging Details :
in bundles with seaworthy packing
Price :
Negotiable
Product name :
DIN2391 St52 Galvanized Precision Steel Tube for Automotive System
Standard :
DIN2391
Surface :
BA/Black Phosphating/Galvanizing
Key Words :
Hydraulic seamless steel tubes
Technique :
Cold Drawn
Delivery Condition :
NBK/BKS/+N
Section shape :
Round
Description

DIN2391 St52 Galvanized Precision Steel Tube for Automotive System

Material:E215 E235 E355 ST35,ST37.4,ST45,ST52.4 etc

Size: OD:4-76mm, Wall thickness:0.5-8mm

Surface:NBK, Galvanization/Galvanized/Zinc Coated, Blue White Zinc (Trivalent Chromium Passivation),

Plating Colour Zinc(Trivalent Chromium Passivation), Yellow, Army-Green, Phosphated/Black Phosphated

Surface quality:Without oxidization, No crack, No fold, No rolling fold, No scar, No laminar defect

Tolerance

Name Scope mm DIN seriesmm
OD 04-30 ±0.08
OD 31-40 ±0.15
OD 41-50 ±0.20
OD 51-60 ±0.25
Wall 0.5-7 ±10%

Hydraulic steel tube
Standard Material Delivery Surface Sizes
DIN 2391/1630/2445 ST37.4 ST52.4 NBK

1) BA

2) 2)Black phosphating 3)Galvanizing

OD2 -60mm

WT0.3-10mm
EN 10305-4 E235 E355 (+)N
BS 3602 CFS 360

Zinc Layer,

thickness more than 8um
Other steel grades also available upon request

Delivery Condition: BK(+C), BKW(+LC), BKS(+SR), GBK(+A),NBK( +N)

BK (+C) Cold finished/hard No heat treatment after the last cold forming process.
BKW (+LC) Cold finished/soft After the last heat treatment there is a light finishing pass (cold drawing).
BKS (+SR) Cold finished/stress relieve annealed. After the final cold forming process the tubes are stress relieve annealed.
GBK (+A) Annealed. After the final cold forming process the tubes are annealed in a controlled atmosphere.
NBK (+N) Normalized. After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere

Product Display Galvanized Precision Steel Tube for Automotive System

DIN2391 St52 Galvanized Precision Steel Tube for Automotive System DIN2391 St52 Galvanized Precision Steel Tube for Automotive System

Manufacturing Process

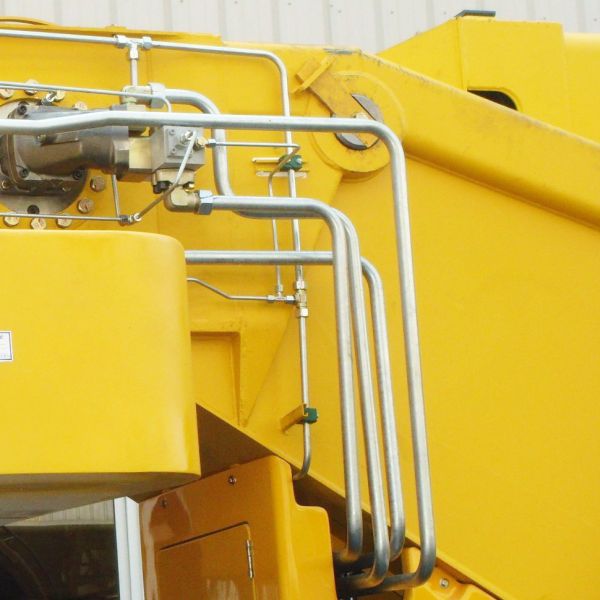

Application: Hydraulic system, Automobile

DIN2391 St52 Galvanized Precision Steel Tube for Automotive System DIN2391 St52 Galvanized Precision Steel Tube for Automotive System

Packing & Delivery

Packing Details : In bundles or in wooden boxes packaging

DIN2391 St52 Galvanized Precision Steel Tube for Automotive System DIN2391 St52 Galvanized Precision Steel Tube for Automotive System

Our Certifications

DIN2391 St52 Galvanized Precision Steel Tube for Automotive System

FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider


Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


If you have another question, pls feel free to contact us.
