17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
Specifications
Brand Name :
TORICH
Model Number :
DIN 2391
Certification :
ISO9001 TS16949
Place of Origin :
Zhejiang,CN
MOQ :
1 tons
Price :
888 USD per ton
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 tons per month
Delivery Time :
30-45 days
Packaging Details :
packing in standard seaworthy packages
Product name :
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
Keyword :
17mm High Precision Steel Tube
Application :
Hydraulic system,Automobile
Standard :
DIN 2391
Technique :
NBK
Surface treatment :
Galvanized, customerized, Copper Coated, Null, polished
Description

17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519

TORICH is a professional steel tubes supplier from China with over 23 years manufacturing and exporting experience.
Our main products are seamless precision pipe,carbon steel seamless precision pipe,alloy steel seamless precision pipe, stainless steel seamless precision pipe.The material we usually use for producing Seamless Honed Precision Steel Tube is10#,20#,1010,1020,1026,ST37,ST44,E235,E215,E355

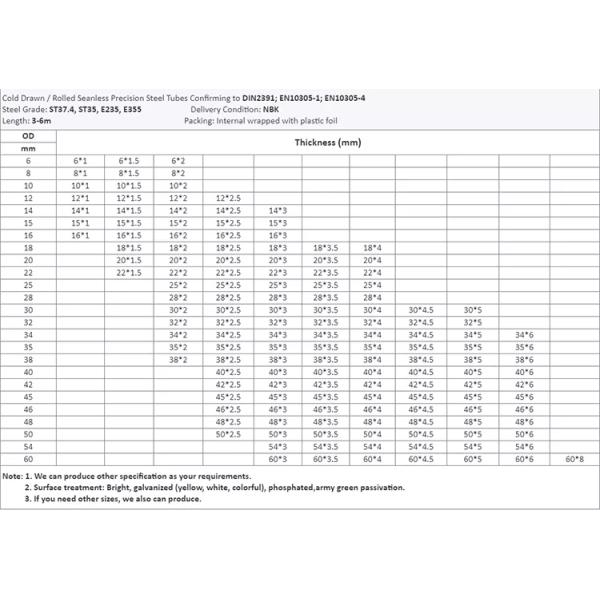

Size range
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519


Tolerance


Name		Scope mmDIN seriesmm
OD04-30±0.08
OD31-40±0.15
OD41-50±0.20
OD51-60±0.25
Wall0.5-7±10%
Delivery condition
DesignationSymbolDescription
Cold finished (hard)BK(+C)
Tubes do not undergo heat treatment following the final cold forming and, thus, have a rather high resistance to deformation
Cold finished (Soft)BKW
(+LC)
The final heat treatment is followed by cold drawing involving limited deformation. Appropriate further processing allows a certain degree of cold forming (e.g. bending, expanding)
Cold finished and stress-relievedBKS(+SR)
Heat treatment is applied following the last cold forming process. Subject to appropriate processing conditions, the increase in the residual stresses involved enables both forming and machining to a certain degree.
AnnealedGBK(+A)The last Cold forming process is followed by annealing in a controlled atmosphere.
NormalizedNBK(+N)The last cold forming process is followed by annealing above the upper transformation point in a controlled atmosphere.


Main feature:
High precision
Excellent brightness
No oxidization on outer and inner walls after heat treatment
High cleanness of inside wall
High pressure
No deformation after clod bending
No crack after flaring and flattening

Color : Gray with white

Application:
Hydraulic system
Automobile
Surface:
NBK
Galvanization/Galvanized/Zinc Coated
Blue White Zinc (Trivalent Chromium Passivation)
Plating Colour Zinc(Trivalent Chromium Passivation)
Yellow, Army-Green
Phosphated/Black Phosphated

Surface quality
Without oxidization
No crack
No fold
No rolling fold
No scar
No laminar defect

What we can do in our testing center
Physis laboratory
Chemical spectrometer
Pressure blasting machine
Metallographic analysis
Salt Spray Test
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
17mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A51917mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A51917mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A51917mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A51917mm High Precision Steel Tube DIN2391 EN10305-1 ASTM A519
