Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Specifications
Brand Name :
Torich
Model Number :
ASTM A270
Certification :
ISO 9001 TS16949 ISO14001
Place of Origin :
CHINA
MOQ :
2 Tons
Price :
USD 3800 - 5000 per Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Tons per Year
Delivery Time :
30 - 45 days
Packaging Details :
Stainless Steel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing.
Product name :
Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes
Key word :
sanitary steel pipe
Standard :
ASTM
Section shape :
Round
Thickness :
5 - 40 mm
Outer diameter :
25 - 300 mm
Alloy or not :
Is Alloy
Special pipe :
Precision steel tube,precision seamless pipe
Description

Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes

Product Description:

This specification covers grades of seamless, welded, and heavily cold worked welded austenitic and ferritic/austenitic stainless steel sanitary tubing intended for use in the dairy and food industry and having special surface finishes. Pharmaceutical quality may be requested, as a supplementary requirement.

Standard:ASTM A270

Material:TP304/304L, TP316/316L other material is also available.

Size Range: O.D.: 25 - 300 mm W.T.: 5 - 40 mm Length: As per client requested.

Chemical Composition

Element
TP304
TP304L
TP316
TP316L
2205
C, max
0.08
0.035
0.08
0.035
0.030
Mn, max
2.00
2.00
2.00
2.00
2.00
P, max
0.045
0.045
0.045
0.045
0.030
S, max
0.030
0.030
0.030
0.030
0.020
Si, max
1.00
1.00
1.00
1.00
1.00
Ni
8.0-11.0
8.0-12.0
10.0-14.0
10.0-14.0
4.5-6.5
Cr
18.0-20.0
18.0-20.0
16.0-18.0
16.0-18.0
22.0-23.0
Mo
2.0-3.0
2.0-3.0
3.0-3.5
N
0.14-0.20
Cu

Tensile and hardness requirements

Grade
UNS Designation
Tensile Strength min, ksi [MPa]
Yield Strength min, ksi [MPa]
Elongation in 2 in
min, %
Rockwell Hardness Number, max
TP304
S30400
75 [515]
30 [205]
35
B90
TP304L
S30403
70 [485]
25 [170]
35
B90
TP316
S31600
75 [515]
30 [205]
35
B90
TP316L
S31603
70 [485]
25 [170]
35
B90
2205
S32205
95 [655]
70 [485]
25
C30.5

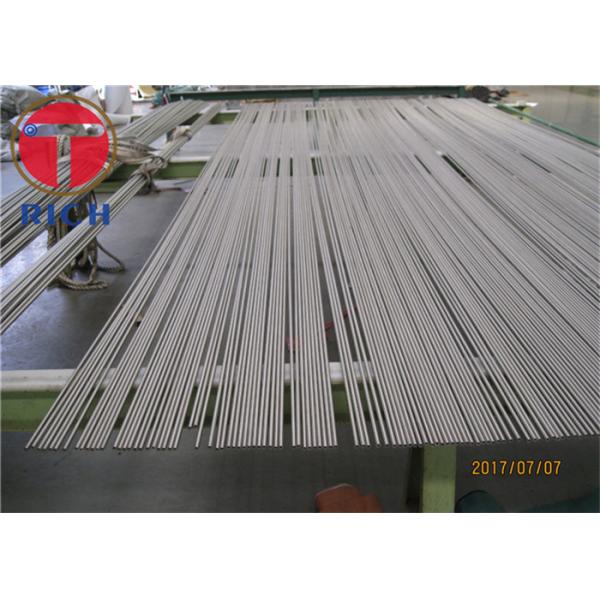

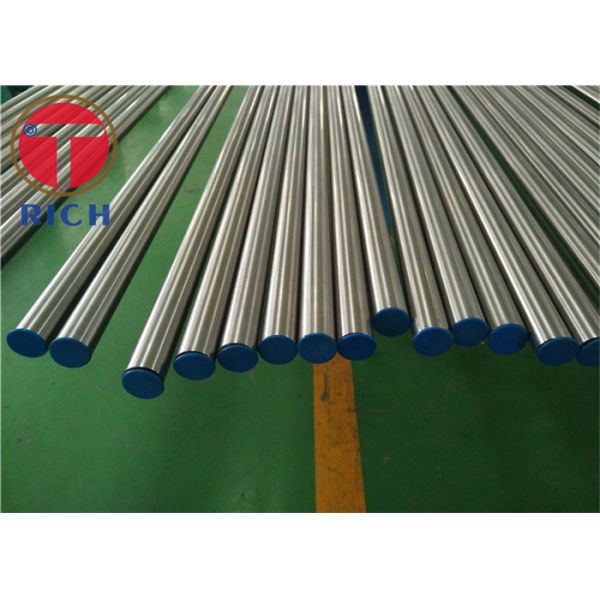

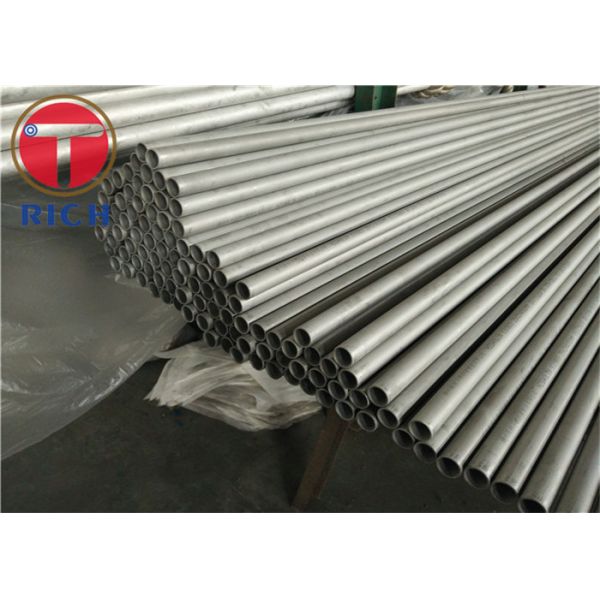

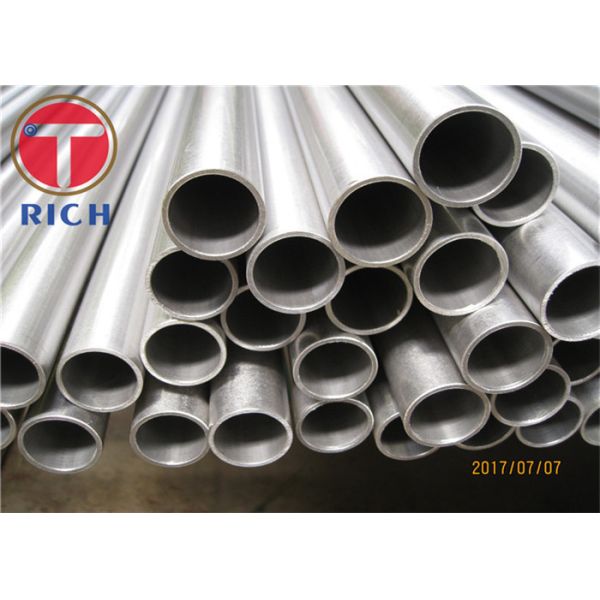

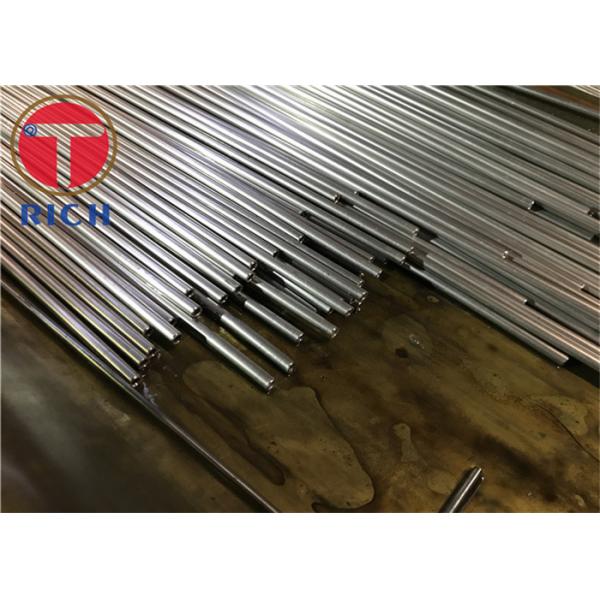

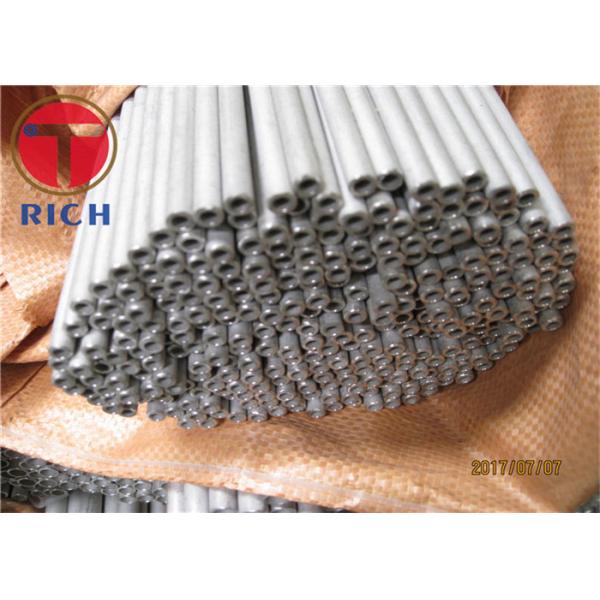

Product Show

Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded TubesFood Grade Tubing ASTM A270 Sanitary Stainless Steel Welded TubesFood Grade Tubing ASTM A270 Sanitary Stainless Steel Welded TubesFood Grade Tubing ASTM A270 Sanitary Stainless Steel Welded TubesFood Grade Tubing ASTM A270 Sanitary Stainless Steel Welded TubesFood Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes

Packing and Delivery:

Food Grade Tubing ASTM A270 Sanitary Stainless Steel Welded Tubes

FAQ:

Q: Are you trading company or manufacturer?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
