Specifications
Brand Name :
TORICH
Model Number :
ASME SB163
Certification :
ISO9001; ISO14001; TSI16949
Place of Origin :
ZheJiang,CHINA
MOQ :
3 tons
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000 Ton per year
Delivery Time :
30-35 days
Packaging Details :
packing in wooden boxes or in hexagonal bundles
Product name :
ASME SB163 UNS N06601 Nickel Alloy Tubes for Heat Exchanger
Product Keyword :
Nickel alloy steel pipe
Grade :
UNS N02200, N04400, N06603 N08825 etc
Application :
For Condenser and Heat Exhchanger
WT :
4.19mm max
OD :
76.2mm max
Type :
Seamless
Heat treatment :
Annealed/Cold Worked/ Stress relieved
Description

ASME SB163 UNS N06601 Nickel Alloy Tubes for Heat Exchanger
Specification for seamless nickel and nickel alloy condenser and heat exchanger tubes.

Keywords:
Seamless tube; UNS N02200; UNS N02201; UNS N04400; UNS N06025; UNS N06045; UNS N06600;
UNS N06601; UNS N06603; UNS N06686; UNS N06690; UNS N08120; UNS N08800; UNS N08801;
UNS N08810; UNS N08811; UNS N08825

Referenced ASTM Standard:
B 829 Specification for general requirements for Nickel and Nickel Alloy seamless pipe and tube.
B 880 Specification for general requirements for Chemical check analysis limits for Nickel, Nickel alloys and Cobalt alloys.
E 8 Test method for tension testing of metallic materials.
E 18 Test methods for rockwell hardness and rockwell superficial hardness od metallic materials.
E 29 Practice for using significant digits in test data to determine conformance with sprcifications.
E 76 Test methods for chemical analysis of Nickel-Copper alloys.
E 112 Test Methods for determining the average grain size.
E140 Hardness conversion tables for metal.
E 1473 Test methods for chemical analysis of Nickel, Cobalt and high-temperature alloys.


Chemical requirements:

AlloyNiCuMoIronMnC (A)Si (A)SCrAl
UNS N0220099 min (B)0.25 max...0.40 max0.35 max0.15 max0.350.01 max......
UNS N0220199 min (B)0.25 max...0.40 max0.35 max0.02 max0.350.01 max......
UNS N0440063 min (B)28.0-34.0...2.5 max2.0 max0.3 max0.50.024 max......
UNS N0660072 min (B)0.5 max...6.0-10.01.0 max0.15 max0.50.015 max14.0-17.0...
UNS N0660158.0-63.01.0 max...remainder (A)1.0 max0.10.50.015 max21.0-25.01.0-1.7
UNS N0669058 min (B)0.5 max...7.0-11.00.05 max0.05 max0.50.015 max27.0-31.0...
.......


Mechanical Properties:

Material and Condition

Tensile Strenth,

min, ksi (MPa)

Yield Strength

(0.2% offset),

min, psi (MPa)

Elongation in 2 in. or

50 mm (or 4 D) min,

%

Rockwell Hardness

(or equivalent) for annealed ends (A)

UNS N02200

Annealed

Stress-relieved

55 (379)

65 (448)

15 (103)

40 (276)

40

15

...

B65 max

UNS N02201

Annealed

Stress-relieved


50 (345)
60 (414)


12 (83)
30 (207)


40
15


...
B62 max

UNS N04400

Annealed

Stress-relieved


70 (483)
85 (586)


28 (193)
55 (379)


35
15

...

B75 max

UNS N0660080 (552)35 (241)30...
UNS N0660180 (552)30 (207)30...
UNS N0669085 (586)35 (241)30...
..................

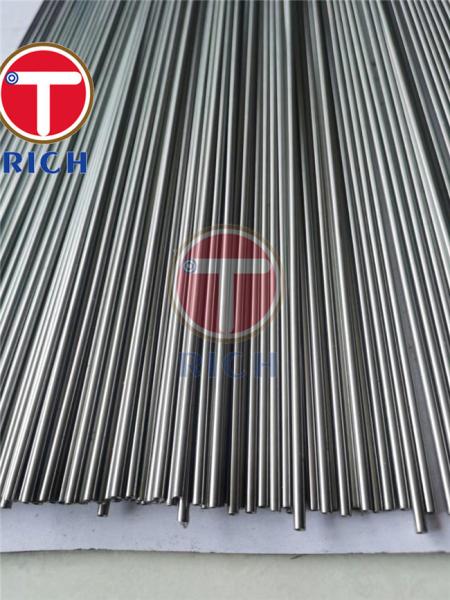

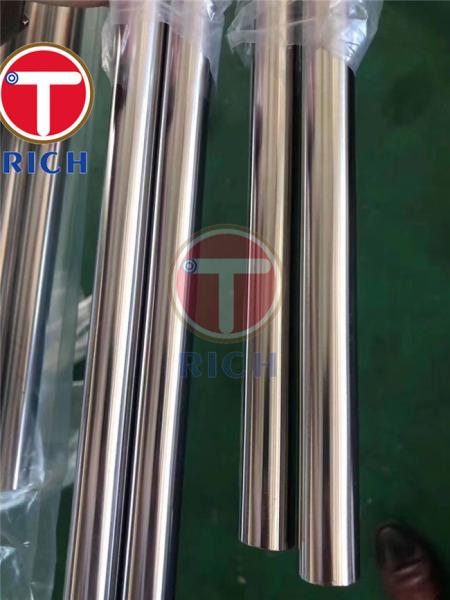

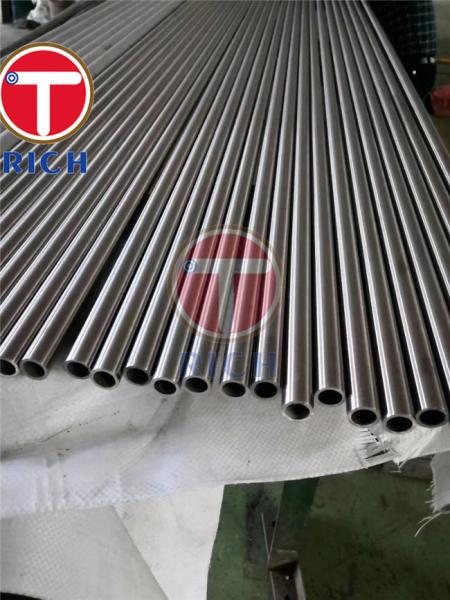

Product Pictures:
ASME SB163 UNS N06601 Nickel Alloy Tubing for Heat ExchangerASME SB163 UNS N06601 Nickel Alloy Tubing for Heat Exchanger
