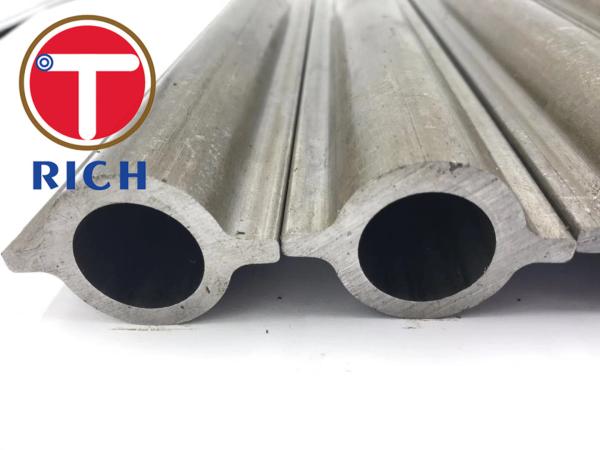

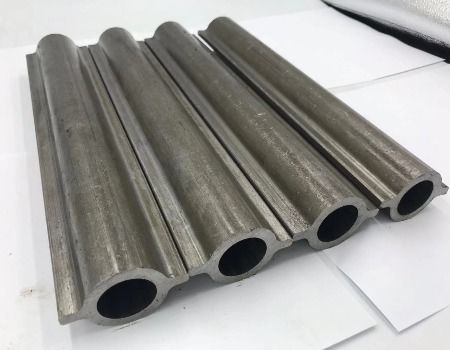

Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger
Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger
Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger
Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger
Specifications
Brand Name :
Torich
Model Number :
15Mo3 ,16Mo3
Certification :
ISO 9001
Place of Origin :
China
MOQ :
8 tons
Payment Terms :
L/C, T/T
Supply Ability :
5000 tons per year
Delivery Time :
5-8 week days
Packaging Details :
In wooden boxes packages
Material :
15Mo3 ,16Mo3
Standard :
SA192
Length :
6m Max
OD :
57mm
Thickness :
5mm
Application :
Boiler&Heat Exchanger
Description

Key Specifications/Special Features:

OD57*WT5mm Seamless Alloy Steel Shaped Tube for Boiler&Heat Exchanger from TORICH,China Manufacturer

Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions

Manufacture:Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.

Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher

EN 10216,ASME SA179, SA192, SA210 Grade A1, SA210 Grade C, BS3059 Grade 320, 360

Steel grade 16Mo3 Chemical Composition & Mechanical properties
C Mn P S Si Cr Mo
0.12-0.2 0.4-0.9 0.025max 0.02max 0.35max 0.3max 0.25-0.35

Tensile Strength Yeild point Elongation
450-600Mpa 280Mpa min 22% min
Seamless Special Steel Pipe Alloy Steel Tube For Boiler / Heat Exchanger

OD57*WT5mm Seamless Alloy Steel Shaped Tube for Boiler&Heat Exchanger from TORICH,China Manufacturer

Applications:
for Boilers,Superheaters,
Heat-Exchangers,
High-pressure Boilers,
Steam Boilers
Cold Condensers and High-Pressure Services,
High-Temperature Services for Boiler Constructions

Manufacture:Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.

Heat treatment:Hot finished tubes need not be heat treated.Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher

EN 10216,ASME SA179, SA192, SA210 Grade A1, SA210 Grade C, BS3059 Grade 320, 360

Steel grade 16Mo3 Chemical Composition & Mechanical properties
C Mn P S Si Cr Mo
0.12-0.2 0.4-0.9 0.025max 0.02max 0.35max 0.3max 0.25-0.35

Tensile Strength Yeild point Elongation
450-600Mpa 280Mpa min 22% min
