Specifications
Brand Name :
TORICH
Model Number :
SA269
Certification :
ISO9001, TS16949
Place of Origin :
CHINA
MOQ :
1 TON
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000 ton/year
Delivery Time :
45-60 days
Packaging Details :
in bundles with seaworthy packing
Product Name :
SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure
Type :
Seamless Welded
Grade :
TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
Application :
Fluid and Gas Transport Industry Hydraulic Pressure
OD :
6-219 mm
WT :
1-35mm
Length :
Per Customer's Requirement
Certificate :
MTC EN10204.3.1
Technical :
Cold Drawn
Brand :
TORICH
Description

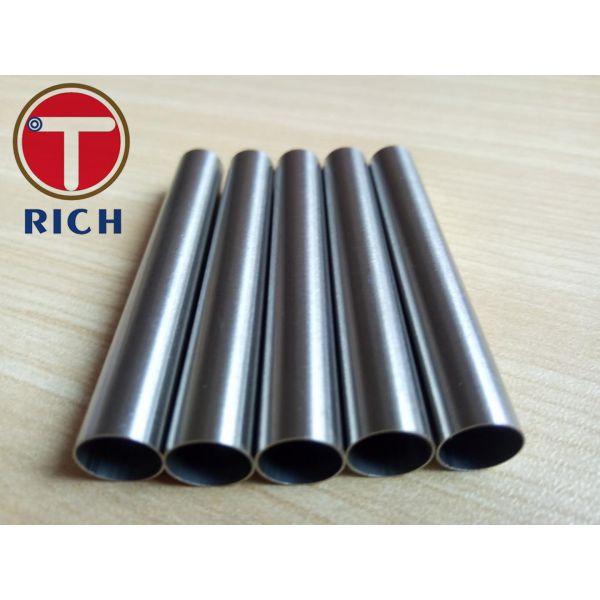

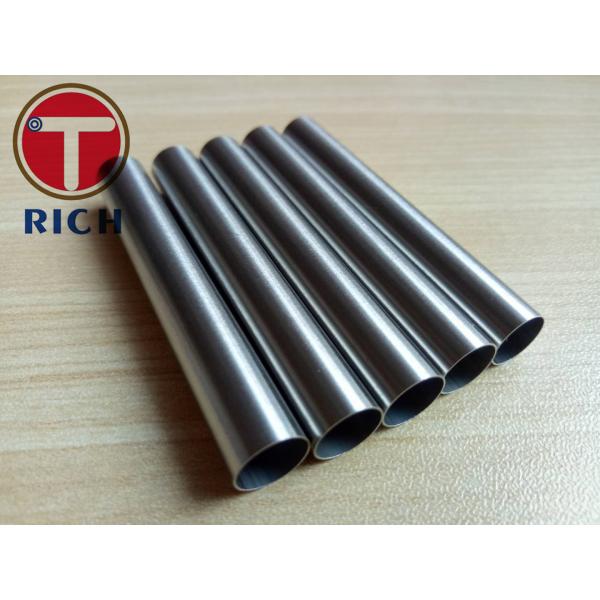

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

TORICH is a Professional Manufacturer of ASTM A511 MT304 Seamless Stainless Steel, which is for Seamless and Welded Stainless Steel Tubing for General Service

We can manacture stainless steel tubes based on the following technical standard:
ASTM A213,ASTM A312,ASTM A511,ASTM A269,ASTM A249,ASTM A358


The Stainless Steel Grade can cover the following:
ASTM A213 TP304 TP304L TP304H TP310S TP316 TP316L TP316H TP317 TP347
ASTM A312 TP304H TP309H TP310H TP316H TP321H TP347H TP348H TP304 TP309S TP310S TP316 TP321 TP347 TP348

ASTM A511 MT304, MT304L, MT309S, MT310S, MT316, MT316L, MT317,MT321, MT347

ASTM A269 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317

ASTM A249 TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317

ASTM A358 TP304

Producsts Name SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure
Technical Standard SA269 AISI321 Seamless Welded Steel Tube
Steel Grade/Steel Numbe TP304 TP304L TP321 TP347 TP316 TP316L TP348 TP317
Size Range OD: 6mm-219mm
WT: 1-35mm
Length: max 12000mm
Cutting Length: available according to customer's requirement.
Delivery Condition Bright Annealing.
Pickling and Solution Heat Treatment.
Surface Treatment/Surface Condition Bright Surface.
Dull Surface.
Polish Surface.
Tube Inspection 100% Dimensional Check
100% Eddy Current Test (ETD)
100% Ultrasonic Test (UTD
Mechanical Properties Inspection, Internal Lab test report or Third Party Inspection Report.
Inspection Istrument Outside micrometer, wall thickness micrometer, inside dial gauge, vernier caliper, tensile testing machine, hardness tester, eddy current flaw detector, metallographic analyzer, surface roughness meter
Tube Application Fluid and Gas Transport Industry Hydraulic Pressure
Production Process Round steel warehousing → round steel inspection → round steel sawing → central hole drilling → perforation → pickling → cold drawing or cold rolling (finish rolling) → annealing → straightening → head and tail cutting → finished product inspection → packaging → delivery

SA269 Chemical composition for SA269 TP321 Seamless Welded Steel Tube

Material C Mn P S Si
TP321 0.08 2.00 0.045 0.030 1.00
TP347 0.08 2.00 0.045 0.030 1.00
TP304 0.08 2.00 0.045 0.030 1.00
TP304L 0.035 2.00 0.045 0.030 1.00
TP316 0.08 2.00 0.045 0.030 1.00
TP316L 0.035 2.00 0.045 0.030 1.00
TP347 0.08 2.00 0.045 0.030 1.00
TP348 0.15 5.5--7.5 0.060 0.030 1.00

Example of physical Properties of SA269 TP321 Seamless Welded Steel Tube under Bright Annealing Condition:

Elongation Percentage: >55%

Surface Hardness: <170HV

Tensile Strength :>550N/MM2

Yield Strength :>195N/NM2

Prodution Pictures for SA269 TP321 Seamless Welded Steel Tube

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

Products Application of Fluid and Gas Transport Industry Hydraulic Pressure

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic PressureSA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

Production Process for SA269 TP321 Seamless Welded Steel Tube

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

Production Workshop for SA269 TP321 Seamless Welded Steel Tube

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

Delivery and Packing of SA269 TP321 Seamless Welded Steel Tube

SA269 TP321 Seamless Welded Steel Tube for Fluid Gas Transport Hydraulic Pressure

FAQ

1. who are we?
TORICH is not only professional manufacturer and exporter, but also international marketing

and sales company in the field of steel tubes from China. Our factory was established in 1997

with the name of Haiyan Sanxin Steel Pipe Co., Ltd. Our technicians are equipped with great

engineering experience in steel pipe industry for more than 22 years, they have great comma-

nd of production technology for Cold Drawing and Cold Rolling, as well as heat treatment and

inspection. So we have a strong technician team and manufacturing capability.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stainless Steel/Carbon Steel/AlloySteel,Titanium,Copper/Brass,etc.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Deliv-

ery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
