Shell and tube heat exchangers are complex and more expensive than ordinary pressure vessels. Also the strength calculation is more difficult. Part of the design process includes the determination of the amount of tubes to be used in the heat exchanger. The number and length of the tubes create the area through which the heat is transferred from one process medium to the other. The outside of the shell and tube heat exchanger is mostly a cylindrical form which make the calculation by hand for the amount of tubes difficult. The number of tubes and the dimensions are required to execute the calculation for the tube sheet.

The Tube Sheet Lay-out page facilitates the calculation of the amount of tubes. The calculation can be done for four (4) pitch patterns (how the tubes are laid out) and for ten (10) types of passes (tube compartments).

Material: Stainless Steel, Carbon Steel, Aluminum, Nickel, Brass etc.

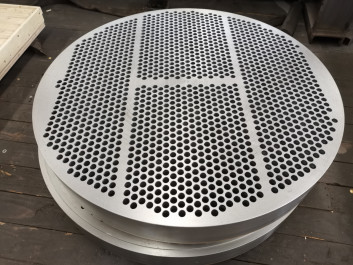

Composite Tube Plate: Composite Pipe Explosion Plate, Tube Sheet Welding
Processing: Drilling, Lathe, Milling, Machining, Pull Groove Machining, Reaming and so on.
Application: Heat Exchanger, Condensed Tube Plate, Evaporator, Heater, Boiler, Nuclear Power, Water Tube Panels etc.
Standard: ANSI, DIN, JIS, BS etc.
Processing Equipment: Machining Centers, CNC Lathes, Milling Machines, Drilling etc.
Testing Equipment: Gauges, Ultrasonic flaw detector, Roughness tester, Imported shallow groove gauge, Calipers etc.
Hole Size can be processed: Φ1-Φ300
Hole Finish Accuracy: 2 Wire
Roughness: Ra0. 8
Certified by: ISO9001:2008

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
