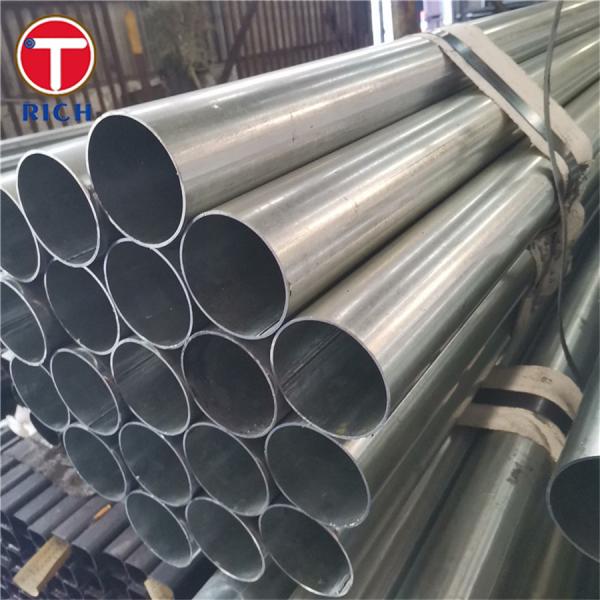

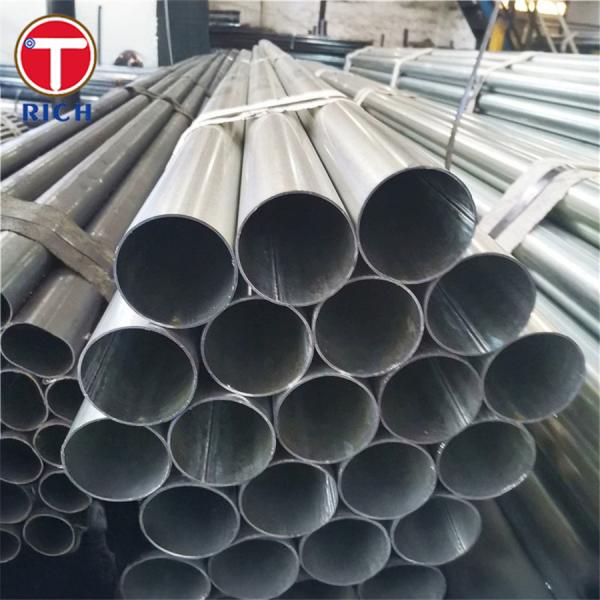

DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural
Specifications
Brand Name :
TORICH
Model Number :
DIN 1615 St33
Certification :
ISO 9001 ISO14001 TS16949
Place of Origin :
Zhejiang/China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60000 Ton/Tons per Year
Delivery Time :
20-40days
Packaging Details :
In bundles or in wooden boxes.
Section shape :
Round,Square,Rectangular,Round/Square/Rectangular/Oval.etc
Secondary or not :
Non-secondary
Technique :
ERW,Hot Rolled,Cold Rolled,Extruded
Thickness :
0.4 - 50 mm
Application :
Structure Pipe
Surface treatment :
Galvanized
Alloy or not :
Is Alloy
Standard :
ASTM,API,GB,JIS,BS
Grade :
St33 St37 St42 St34.2 St37.2 St42.2 St52 3 St34.2 St37.2 St 42.2 St 52.3
Standard2 :
DIN 1615
Grade group :
ST35-ST52
Length :
1-12m/as customers' requests
Surface :
Galvanized Coated
Outer diameter(round) :
20 - 677 mm
Product name :
Galvanized Square Steel Pipe/Tube,ERW steel pipes,galvanized round pipe
Description

DIN 1615 St33 Round Structural Pipe Welded Circular Unalloyed Steel Tubes For Structural

DIN 1615 St33 St37 St42 St34.2 St37.2 Round Structural Pipe Welded Circular Unalloyed Steel Tubes

Material Specification

DIN 1615 standard specifies the requirements for welded circular unalloyed steel tubes used for structural purposes. These pipes are commonly used in construction and engineering projects due to their strength, durability, and versatility. The standard covers various steel grades, including St33, St37, St42, St34.2, and St37.2, each offering distinct mechanical properties to suit different applications.

Key Features

  • Versatility: Suitable for a wide range of structural applications.
  • Durability: High resistance to wear and tear, ensuring long service life.
  • Cost-Effective: Economical choice for structural projects.
  • Weldability: Excellent welding properties, facilitating easy fabrication.
  • Compliance: Meets international standards for structural steel pipes.

Chemical Composition

The chemical composition of these steel grades is crucial for determining their mechanical properties and suitability for specific applications. Below is a table presenting the typical chemical composition for these grades:

Element St33 (%) St37 (%) St42 (%) St34.2 (%) St37.2 (%)
C ≤ 0.17 ≤ 0.20 ≤ 0.22 ≤ 0.17 ≤ 0.20
Mn ≤ 1.40 ≤ 1.40 ≤ 1.40 ≤ 1.40 ≤ 1.40
P ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045
S ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045 ≤ 0.045

Mechanical Properties

The mechanical properties of these steel grades define their performance under various conditions. The table below summarizes the typical mechanical properties:

Property St33 St37 St42 St34.2 St37.2
Yield Strength (MPa) ≥ 185 ≥ 235 ≥ 275 ≥ 185 ≥ 235
Tensile Strength (MPa) 340-470 360-510 410-550 340-470 360-510
Elongation (%) ≥ 25 ≥ 24 ≥ 22 ≥ 25 ≥ 24

Steel Grade

The steel grades covered under DIN 1615 include:

  • St33: Known for its excellent ductility and weldability.
  • St37: Offers a good balance of strength and ductility.
  • St42: Provides higher strength, suitable for more demanding applications.
  • St34.2: Similar to St33 but with slight variations in mechanical properties.
  • St37.2: An enhanced version of St37 with improved mechanical characteristics.

Application

These steel tubes are widely used in:

  • Construction of buildings and bridges
  • Manufacturing of machinery and equipment
  • Automotive industry for structural components
  • Fabrication of frames and supports
  • General engineering purposes

Possible Alternative Grades

Depending on the specific requirements of a project, alternative grades may be considered:

  • EN 10219 S235JR: Offers similar mechanical properties and is commonly used in Europe.
  • ASTM A500 Grade A/B: Widely used in North America, providing comparable strength and ductility.
  • JIS G3444 STK400: A Japanese standard with similar applications and properties.
