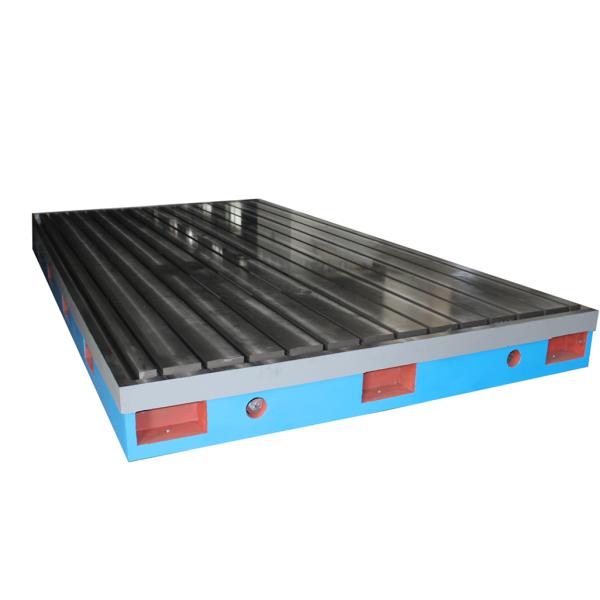

100 X 100 Surface Inspection T Slot Cast Iron Surface Table 2 Grade
100 X 100 Surface Inspection T Slot Cast Iron Surface Table 2 Grade
Specifications
Brand Name :
OEM
Certification :
CO, FORM-E
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10/monthd
Delivery Time :
20days
Packaging Details :
wooden
Material :
Grey iron HT250
Name :
Quality T Slot Surface Inspection Cast Iron Surface Plate T slot table
Type :
Hollow type
Flatness :
2 grade
surface finish :
hand scrap
Loading weight :
as clients request
Casting Method :
Sand Casting
Surface Treatment :
Spray-Paint
Coating :
Alcohol, Graphite
Description
Quality T Slot Surface Inspection Cast Iron Surface Plate T slot table
Cast Iron T-Slotted Cast Iron Floor Plate are specially configured to suit customer requirements. The design, dimensions, and loading capacity of the plate can be tailored to suit the size and weight of the work pieces to be clamped.
The number and shape of the ribs can be adjusted to suit the specified loading requirements. The size of the T-slots in the plates is determined by the customer’s requirements in strength, tensile and compression.
The size range is from 100mm*100mm to 3000mm*8000mm. Larger one can be made according to the drawing.

Profesional:

Professional nitriding processing technology research and development, independent innovation.Professional design.

Good cooperation:

Our members have many years of technical experience and are equipped with advanced and first-rate production equipment.Perfect products.Let the customer with ease, rest assured.

Bloom grow :

The company is an "international, professional, high-level" casting manufacturer

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
Grade1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500 56 140
2000x2000 60 152 230
2500x1500 68 168 248
3000x1000 174 248
3000x2000 184 275
3000x3000 210 300
4000x1000 210 300
4000x2000 219 310
4000x3000 240 360
5000x2000 255 375
5000x3000 287 420
6000x2000 293 430
6000x3000 308 460
8000x2000 370 520
8000x3000 382 570
