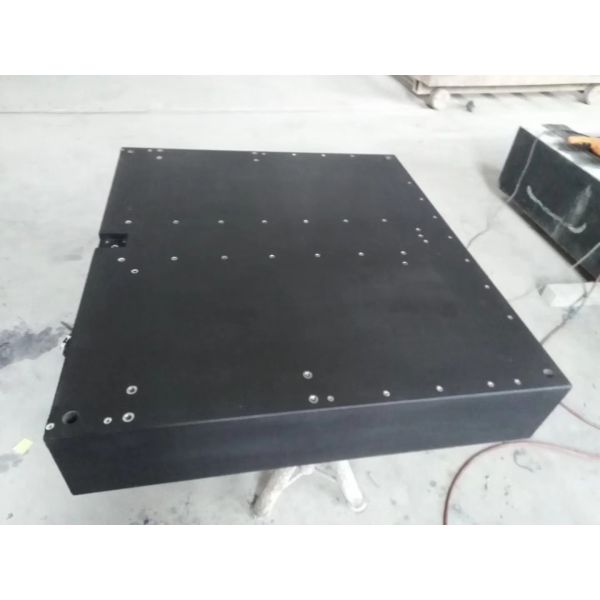

High Hardness Precision Surface Plate With Insert And Holes Easy Maintenance
High Hardness Precision Surface Plate With Insert And Holes Easy Maintenance
High Hardness Precision Surface Plate With Insert And Holes Easy Maintenance
High Hardness Precision Surface Plate With Insert And Holes Easy Maintenance
Specifications
Brand Name :
Willing
Model Number :
800 x 800 mm
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100PC /30days
Delivery Time :
10 work days
Packaging Details :
wooden
Material :
black granite
color :
Black
application :
Industry
flatness :
00 grade
Size :
800 X 800
Weight :
300 kgs
Description

High Hardness Precision Surface Plate With Insert And Holes Easy Maintenance

Granite Surface Plates meet or exceed Federal Specification GGG-P-463c. Each Surface Plate is shipped with a Certificate of Accuracy which guarantees its accuracy and verifies its traceability to the National Institute of Standards and Technology.

All plates from 48"x108" and larger are Machine Base Gray Granite. Smaller plates are Black Granite.

Surface Plates, to size of specifications other than standard, available on special order.

Surface Plates, with the bolt screws, available on special order

  • Precision Surface Plate using granite gabbro
  • It is very and superior in wear resistance. secular distortion is minimal, it does not rust, as well as other advantages.
  • In addition to standard products, we also manufacture with special measurements, hole drilling, screw machining, etc.
  • We can also make special mounts using square pipe.

Grade

Measurement (mm)

 Grade 00 Grade 0 Grade 1 Bearing Mass
(kg)
Code No. Flatness
(μm)		 Code No. Flatness
(μm)		 Code No. Flatness
(μm)		 L1×L2
(mm)
300×300×75 BA101 2.0 BA201 4.0 BA301 8 240×240 21
450×300×100 BA102 2.0 BA202 4.5 BA302 9 390×240 41
500×500×100 BA103 2.5 BA203 5.0 BA303 10 420×420 75
600×450×100 BA104 2.5 BA204 5.0 BA304 10 500×370 81
600×600×125 BA105 2.5 BA205 5.0 BA305 10 500×500 135
750×500×125 BA106 3.0 BA206 5.5 BA306 11 630×420 141
1000×750×150 BA107 3.0 BA207 6.5 BA307 13 700×630 338
1000×1000×150 BA108 3.5 BA208 7.0 BA308 14 700×700 450
1500×1000×200 BA109 4.0 BA209 8.0 BA309 16 1100×700 900
2000×1000×250 BA110 4.5 BA210 9.5 BA310 19 1500×700 1500
2000×1500×300 BA111 5.0 BA211 10.0 BA311 20 1500×1000 2700
3000×1500×300 BA112 6.5 BA212
