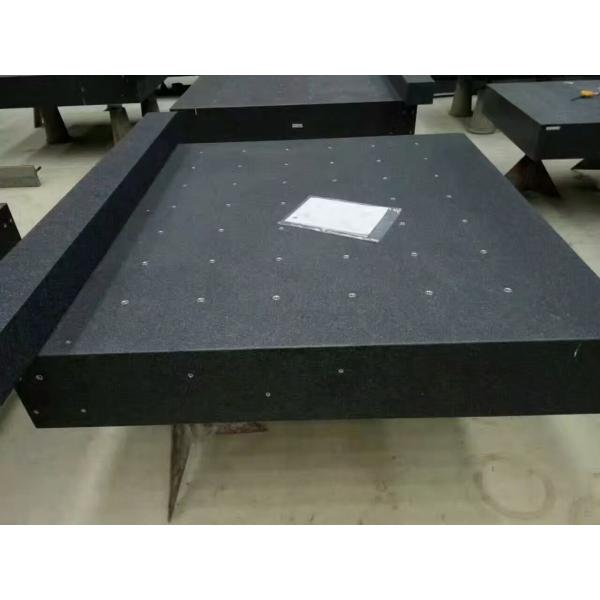

900 x 600 mm Lab Black Flat Granite inspection plate
900 x 600 mm Lab Black Flat Granite inspection plate
Specifications
Brand Name :
Willing
Model Number :
900 x 600 mm
Certification :
CO
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100PC /30days
Delivery Time :
10 work days
Packaging Details :
wooden
Material :
black granite
color :
Black
application :
industry
flatness :
00 grade
Size :
900 x 600 mm mm
Weight :
235 KGS
Name :
900 x 600 mm Lab Black Flat Granite inspection plate
standard :
DIN/876
Hardness :
70
packing :
wooden case
Description

900 x 600 mm Lab Black Flat Granite inspection plate

Precision Granite inspection plate are manufactured to meet or exceed the tolerances specified by Federal Specification GGG-P-463c,DIN 876 other country standard . A Precision Granite calibration certificate is included with every surface plate, guaranteeing overall surface flatness and repetitive gage measurements and is traceable to N.I.S.T. or equivalent National or International Organizations. Long-form certification is also available.

Salient Features :

Made from close-grained Granite having uniform color and texture having hardness between 5.6 to 7 on Moh's scale, sound and free from flaws fissures and large inclusions of softer minerals.
Made generally as per GB117-2015. Also available on request conforming to DIN-876-1972, BS-817-1988, JIS -B-7513 and US Federal specification GGG-P-463-C.
metallic threaded inserts, metallic T-slots, Plates with two or four ledges also can be supplied against specific request at extra cost.
Rexine cover provided for top working surface with each Plate.
steel stand with leveling screws are available on request at extra cost.
Granite Lapping Plates square and rectangular available on request.
Also available in Grade 00 as per DIN 876.
Sizes offered from 200x300mm to 8000x2000mm

Specification
Length × Width × Thickness (mm)

Weight (kgs)

Precision Grade (μm)

000

00

0

1

300 × 200 × 50

17

1.5

3

6

12

300 × 300 × 50

19

1.5

3

6

12

400 × 300 × 70

25

1.5

3

6

12

400 × 400 × 70

48

2

3.5

6.5

13

630 × 400 × 100

76

2

3.5

7

14

630 × 630 × 100

155

2

4

8

16

800 × 500 × 130

156

2

4

8

16

1000 × 630 × 130

284

2.5

4.5

9

18

1000 × 750 × 150

338

2.5

5

9

18

1000 × 1000 × 150

450

2.5

5

10

20

1600 × 1000 × 200

963

3

6

12

24

2000 × 1000 × 200

1200

3.5

6.5

13

26

1600 × 1600 × 300

2312

3.5

6.5

13

26

2000 × 1600 × 300

2890

3.5

7

14

28

2500 × 1600 × 300

3612

4

8

16

32

3000 × 2000 × 500

9030

4.5

9

18

36

4000 × 2000 × 500

12040

5.5

11

22

44

6000 × 2000 × 700

25284

7.5

15

30

60
