T - Slot Flat Inspection 400x400 Cast Iron Bed Plates Grade 1
T - Slot Flat Inspection 400x400 Cast Iron Bed Plates Grade 1
Specifications
Brand Name :
OEM
Certification :
CO, FORM-E
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
10/monthd
Delivery Time :
20days
Packaging Details :
wooden
Material :
Grey iron HT250
Name :
Cast Iron T-Slot Flat Bed Inspection Plate
Type :
Hollow type
Flatness :
3 grade
surface finish :
Maching finish
Loading weight :
as clients request
Casting Method :
Sand Casting
Casting Form Usage Count :
Disposable
Surface Roughness :
Ra0.4
Description

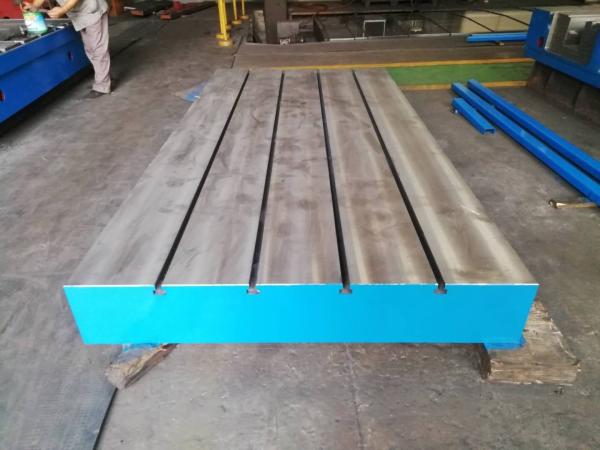

Cast Iron T-Slot Flat Bed Inspection Plate

Our T-slotted cast iron floor plates have been supplied for years to overseas customers in the USA,
Europe, the Middle East, South Asia etc.. Their high quality is guaranteed and
prices are always under your economic budgets. Meanwhile, we are capable of arranging
international transportation by GP / OT containers or flat racks to deliver them to any seaport in the world
Structure

The appearance of the cast iron platform is basically a box type. It consists of three parts: working surface, side wall and rib plate. Each part is made by one casting. The thickness of the work surface is the most critical, not only to ensure that the effect is not too thick, but also the price is high, but also the surrounding and ribs. The circumference plays a supporting role in use. The thickness and height are closely related to the platform support ability. For the stretching effect, the height and thickness of the reinforcing ribs should also be designed according to the bearing requirements. The height of the reinforcing ribs is usually half gluten, full ribs and flat ribs.

Feature:

Standard: GB/T22095-2008
Specification: 200x200-3000x8000mm or customize
Surface: flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long
holes, grid lines, etc)
Hardness of the working surface: HB160-240
Surface treatment: hand-scraped, finish-milling or ground finish
Foundry process: sand casting or centrifugal casting
Molding type: resin sand molding
Painting: primer and face paint
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Surface flatness: Master, Working, Reference
Precision grade: 0-3
Working temperature: (20±5)℃
Packaging: plywood box

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm) Flatness tolerance (um)
Grade 1 Grade2 Grade 3 Finihs plane
400x400 12 24
600x400 14 28
800x500 16 32 80
900x600 16 32 80
1000x750 18 36 90
1000x1000 20 39 96
1500x1000 25 48 120
2000x1000 26 52 129
2000x1500 56 140
2000x2000 60 152 230
2500x1500 68 168 248
3000x1000 174 248
3000x2000 184 275
3000x3000 210 300
4000x1000 210 300
4000x2000 219 310
4000x3000 240 360
5000x2000 255 375
5000x3000 287 420
6000x2000 293 430
6000x3000 308 460
8000x2000 370 520
8000x3000 382 570

T - Slot Flat Inspection 400x400 Cast Iron Bed Plates Grade 1
