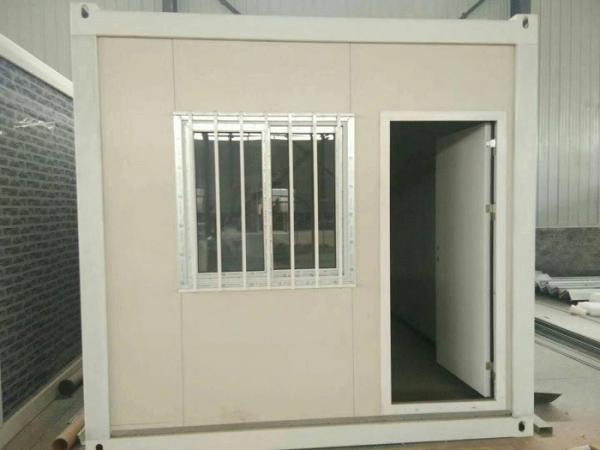

Hot dip galvanized luxury flat pack container houses village

House load:

*Bearing max. load capacity 2.0 kN/m² (200 kg/m²)
*Wind load:25 m/s (90 km/h)
*Compression capability loading—150kg/m3
*Steel frame:Maximum temperature of structure 500°C

Dimensions:

*External Size(mm): 6055(L)×2435(W)×2800(H)
*Internal Size(mm): 5790(L)×2225(W)×252(H)
*External Size(Ftin):20'(L)×8'(W)×9' 2"(H)
*Internal Size(Ftin): 19' 3"(L)×7' 4"(W)×8' 3"(H)

Floor:

*Made from cold rolled Q235B, 4mm thick profiled steel with 4 ISO dimensioned corner casts
*Insulation:50mm rock wool (60kg/m3)
*Subfloor:0.4mm thick galvanised steel sheet
*18mm MGO borad,waterproof, fireproof (Option Plywood and Fiber cement floor)
*2.0mm vinyl flooring

Roof:

*Made from cold rolled Q235B, 3mm thick profiled steel with 4 ISO dimensioned corner casts
*Insulation:50mm rock wool (60kg/m3)

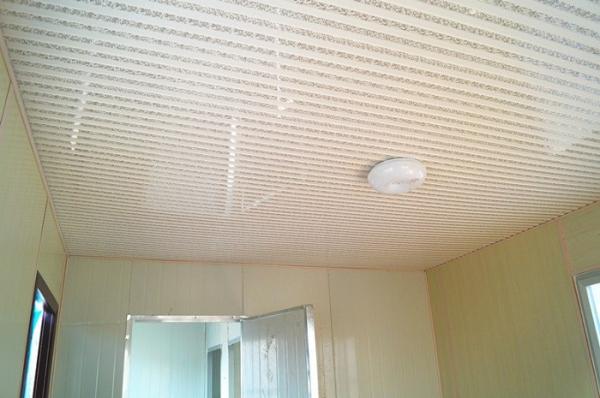

*Ceiling: 50mm Eps sandwich panel, both size 0.4mm PPGI steel sheet.(Option rockwool and PU)
*Roof Covering: 0.5mm thick PPGI steel sheet
*Corner posts: 3mm cold rolled Q235B profiles

Wall panels:

*Width:1150mm
*Insulation:59mm high density (14kg/m3) EPS,(Option rockwool and PU)
*Both side cladding:0.426mm PPGI steel sheet, RAL9002

Windows:

*Sliding aluminium profiled windows with dimension 800×1100mm
*4mm double glazed panes with 16mm vacum void
*Removable Aluminium mosquito screen

Exterior Doors:

*Steel door with dimension 900×2100mm
*Insulation:40mm mineral wool

Painting:

*Steel Frame: 40μm exoxy zinc primer, 50μm chlorinated rubber topcoat

Electricity:

*Light, Switch,Socket,distribution box and breaker,
*Different electrical standards to match with most countries in the world; such as CE, UL, CSA, AS

Company description:

Steel structure is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity. The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.

Product description:

Our Product:

1) Can be used as living home, dormitory, office, storage room etc;
2) Can be installed in a short time assembled by bolts with a high intensity;
3) Can be used repeatedly with a life span of more than 15 years;
4) With a well-sealed and reliable structure water-proof, moisture-proof, fire-resistant and anti-corrosive;
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
6) The special design enables to carry this container house in a whole without damages, so it's quite suitable for movable projects.

Installation:

our service:

Design:

Steel sheet of the roof:

Our factory:
