Specifications
Brand Name :
Homeshore
Model Number :
CAGJG-0020
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 tons
Price :
Negotiation
Payment Terms :
T/T, Western Union,,
Supply Ability :
1500 tons per month
Delivery Time :
20-30 working days
Packaging Details :
1. Steel structure components will be in nude packaging with proper protection. 2. Sandwich panels will be covered with plastic film. 3. Bolts and other accessories will be loaded into wooden boxes.
Function :
Insulation and fireproof
Drawing Design :
Auto CAD 3D 3S
Installment Speed :
20 working days
Application :
Poultry Farm
Usage :
Warehouse, workshop,construction office
Transport and packing :
20'/40' container
Description

Fire Proof Galvanized Z Section Steel Structure Poultry Farm Warehouse with Stable Structure's Information:

1. Main feeding system
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

2. Feed pan system
This system deliver feed automatically through motor under the control of feed sensor, which ensure birds feeding during whole growing period.

3. Nipple drinking system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

4. Ventilation system
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds. This system include Poultry house fan, Cooling pad, Air inlet window.

5. Curtain for cooling pad

6. Environmental control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

7. Spraying system
This system effectively cools, humidifies, dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes).

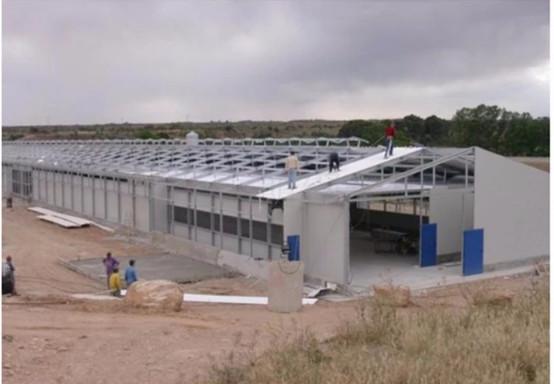

This style of poultry house is widely used for its convenience and low-cost.
1) Light steel structure
2) Easy to assemble and disassemble for several times without damage.
3) The steel structure adopts hot-DIP galvanized steel
4) The product not only has advantages of rust protection, acid resistance, good insulation performance, but also neat and artistic. What's more, the steel structure is also famous for its conformation with the principles of physics, easy structure, high efficiency, lower cost, great flexibility, fire and wind protection, lighting and shock protection.
Meanwhile, we can design and manufacture the poultry house according to customer's requirement.

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame

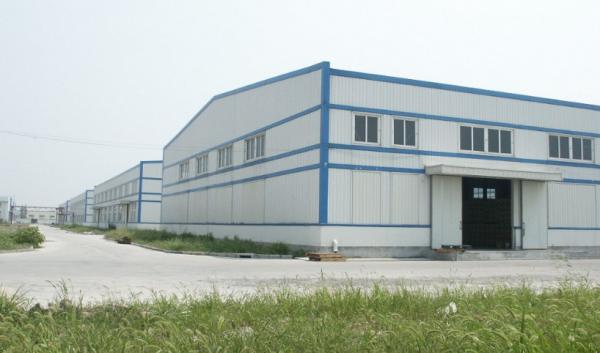

Steel structure buildings is a new type of buildings which is widely used as workshop, warehouse, office building, school buildings, hangar, car parking, stadium ect. It is easy assembly, quick installation,long life,recycle using factors, the steel structure buildings is replace the traditional concrete buildings or brick buildings.

About the installation problems:

Installation plan A: We have the detailed installation drawings for you,you can hire a construction team and according to drawings to install.

Installation plan B: If you need engineer,We can send one engineer to help and guide your workers how to install the buildings.

Installation plan C: If you have needs in construction team,we can send engineer & construction team to help you.

Parameters:

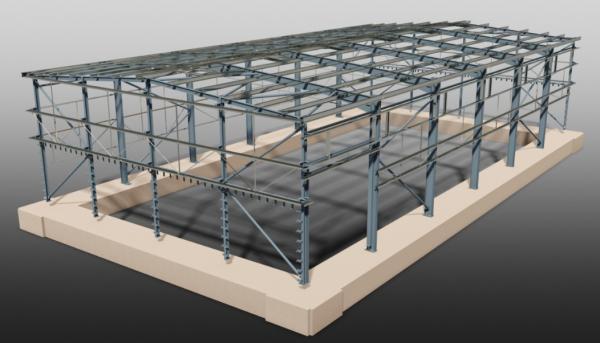

Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.4mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.8mm color steel plate
Rainspout pipes Φ160 PVC pipe

Accessories:

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame

One-stope service

Desgin,manufacture and install steel structure buildings.
Trade assurance
DOM AND OEM service
Your vision,, our mission

Installation:

There are 3 options of installation as following:

1. Clients install it by themselves according our drawings and simple video.

2. Our engineer to help on construction site.

3. We provide installation team to help.

Drawings & Quotation:

1) Customized design is welcomed.

2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

Use:

Z Section Chicken Broiler House , 20 ' / 40 ' Container Steel Rigid Frame
