Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof
Specifications
Brand Name :
Homeshore
Model Number :
CAJXB-003
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 square meters
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000 ㎡/month
Delivery Time :
3-7 working days
Packaging Details :
.Standard package: Plastic bag+Woven bag 2.Shrinking wrap packing
Steel sheet material :
color galvanized steel
Color :
White, blue, red, customized as ral standard
Steel thickness :
0.3-0.8mm
Density :
40-48kg/m3
Surface treatment :
Zinc galvanized
Panel material :
Metal sheet
Description

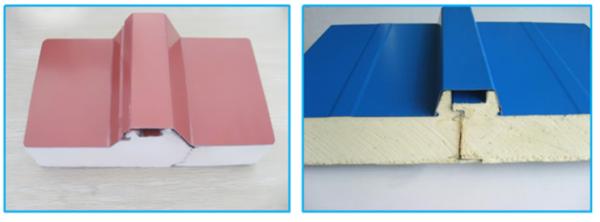

Heat insulation water proof PU sandwich panels for wall and roof

Description of the goods:

As a new material in structure, the polyurethane roof panel has been the most suitable choice for many users. The polyurethane roof panel is divided into two types: The three waves of polyurethane composite roof panel, The four waves of polyurethane composite roof panel. The characters of PU roof panel are heat insulation, waterproof, soundproof, and easy to install. The excellent function is the reason that so many people choice it as roof board.

Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof

Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof

Parameters:

Product information(PU)
Type
Polyurethane cold storage board
Material
Core Material
Polyurethane
Surface Material
Color Steel Sheet
Ticknes(mm)
Core Thickness
50mm~200mm
Steel Thickness
0.4mm~0.7mm
Width(mm)
970mm
Length(mm)
1000mm~10000mm
Density (kg/m³)
40.43kg/m³
Coefficient of thermal conductivity(W/(m·k))
≤0.024W/(m·k)
Bond strength(MPa)
≥0.100MPa
Compressive strength(kPa)
≥160kPa
Bending capacity(mm)
≤8.80mm
Fire Rating
B
Temperature library classification/
Temperature range
high temperature(G)
-2°C~12°C
Medium temperature(Z)
-10°C~-2°C
low temperature(D)
-20°C~-10°C
freeze(J)
-35°C~-20°C

Thickness of Sandwich Panel
Application Temperature
50mm
Temperature 5°C or above
75mm
Temperature -5°C or above
100mm
Temperature -15°C or above
120mm
Temperature -25°C or above
150mm
Temperature -35°C or above
200mm
Temperature -45°C or above
Advantages of pu polyurethane sandwich panel

1. Light in weight
2. Heat-insulation, good sound insulation
3. Good durability
4. Waterproof
5. Competitive in price
6. Fireproof: B1
7. Hot-dip Galvanized Steel Sheets then Color Coated
8. Sound insulation

Material of pu sandwich panel

1.The thickness of up and bottom steelsheet: 0.3-0.8mm color coated galvanized steel sheet

2.Core material-The density of this rockwool is 120kg/m3

3.Side steel stripe or not:0.2mm-0.8mm galvanized plate

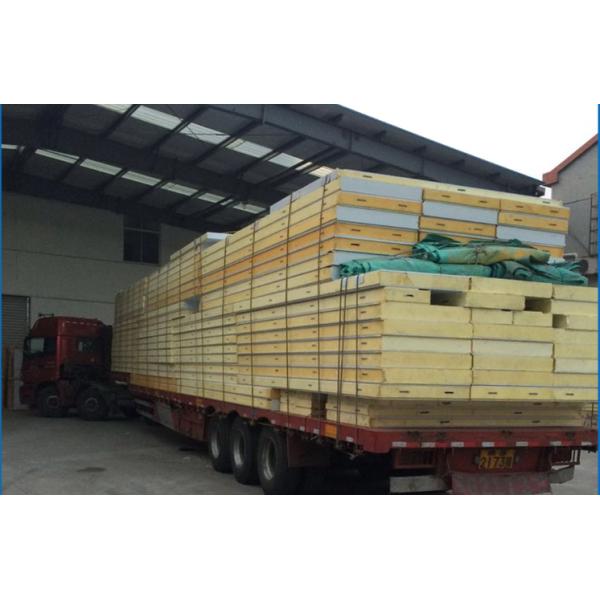

Packing:

Weather Proof Insulated Sandwich Panel Galvanized Steel Material For Wall / Roof

Our company:

QINGDAO CI'AN INDUSTRIAL CO., LTD is specialized in design and production of prefab house and environmental material. Our main products include: prefabricated slope-style house, prefabricated flat-style house, prefabricated villa, steel structure workshop/warehouse and all kinds of container houses and etc. The material series include: Polystyrene sandwich panel (EPS), Polyurethane sandwich panel, rock wool sandwich panel and PU foam,and etc. We have the whole producing line includes the sandwich panel, the steel structure and the accessories producing line. All the equipment includes roof panel molding machine, polyurethane panel molding machine, PU panel molding machine, and all the steel structure molding machines are the advanced in this filed.
