Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Specifications
Brand Name :
Homeshore
Model Number :
CAGJG-0019
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 square meters
Price :
Negotiation
Payment Terms :
T/T, Western Union,, L/C
Supply Ability :
1500 ton per Month
Delivery Time :
20-30 working days
Packaging Details :
Standard export packing
Standard :
GB
Material :
Q235 and Q345
Roof Cladding :
Steel color sheet, sandwich panel.
Main Frame :
Wekded H Steel Beam, Steel Truss
Wind load :
100 km/h
Design :
As your requirement
Description

Galvanized Z Section Buidling Steel Structure Industrial Steel Frame Buidlings

Product Description:
Qingdao Cian Galvanized Z Section Steel Frame Structure Workshop With Long Life Span has features of high fire resistance, strong corrosion resistance. Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.
The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall.

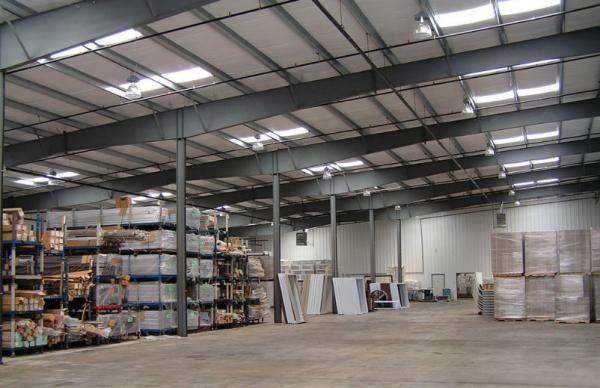

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

Product Information:

Steel Framework(Q235B,Q355B)

1.steel beam
2.steel column
3.bracing
4.The welded H shaped steel,the finished H type steel,hot rolling type steel ,round pipe,round steel,square tube,etc.
Wall and Roof1.single steel sheet 0.2mm-0.8mm thick
2.sandwich panel with EPS,PU,glass wool and rock wool(50/75/100/120/150mm)
Door1.rolling door
2.sliding door and flat open the door
3.steel sheet, aluminum-alloy,plastic steel
4.according to your requirements
Window1.sliding window
2.plastic steel frame or aluminum frame
3.according to your requirements
Gutter1.aluminum-zinc steel sheet
2.stainless sheet
Downpipe1.pvc
2.stainless pipe
Ventilation1.turbine vent
2.ridge vent
3.according to your requirements
Other Materialsself-screwing tapping,bolt,nut ,foundation bolt ,pulling rivet etc.


Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance

Quality control:

General fabrication main process of steel structure is divided into: material preparation →cutting→ assembling→ welding→ drilling → assembly → correction → shot blasting and rust removal → painting → number →component acceptance ex-factory. In the steel structure production, according to the steel structure production process flow, grasp the key processes for quality control, such as control of key parts processing, main components of the process, measures, processing equipment, process equipment, etc. Each processing part, we can have strict inspection specifications. Welding engineering is the most important link in steel structure fabrication and installation engineering.
For the welding, We have our qualified CWI welding inspector to control the quality according to AWS-D1.1/D1.5 welding quality system. Spot welding strictly weld according to ASW welding quality system.

The advantage of Steel Structure

1. The tensile strength of steel is much more times greater than concrete.
2. Steel is also ductile in nature.
3. Steel has also the high strength to weight ratio as compared to concrete.
4. Steel structures are also preferred when time span is small. Construction rate is very fast.
5. Steel bars are also reusable.
6. Steel structures can be extended in any direction.
7. Steel has smaller columns as compared to concrete columns, so do to this more space will be available for some other functions.
8. As steel structures are lighter then concrete, therefore there is less cost used and foundation of structure become less expensive.
9. Steel structures are cost-effective

Accessories:

Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance

Application:
Q235 / Q345 Steel Structure Workshop Building Welded H Steel Beam Fire Resistance
