Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
Specifications
Brand Name :
Homeshore
Model Number :
CAK-001
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000 ㎡
Delivery Time :
10-15 days
Packaging Details :
Standard export packing
Product name :
Enviromental Economical K Type Light Steel Prefabricated House
Structure :
Welded steel frame
Purlin :
C shape steel, Z shape steel
Ceiling :
Light steel frame
Life time :
50 years
Use :
Carport, Hotel,House,Kiosk, Booth, Office
Description

Enviromental Economical K Type Light Steel Prefabricated House:

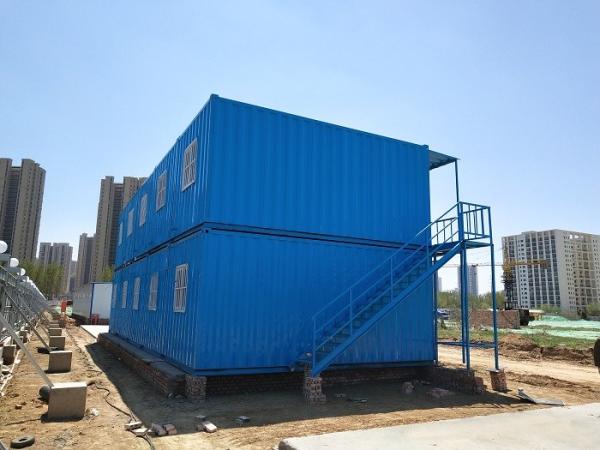

Enviromental Economical K Type Light Steel Prefabricated House is a new kind of prefabricated house,which is builded with light steel frame,with sandwich panels as enclosure materials, spatial combination in a series of standard module and all components are connected by bolts. The K House can be assemble and disassemble easily and quickly. Standard K House use standardized component, both length and width are using K as module.

Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly

Enviromental Economical K Type Light Steel Prefabricated House is made of light steel and sandwich panels for wall and roof. The sandwich panels use polystyrene, polyurethane, rock wool and fiber glass as sandwich insulation. As a standardized construction product, it has the following main features: Dry installation, no construction garbage caused, environment protective,repeated use and low cost, custom made size and easy to assemble and disassemble with elegant appearance, safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc

Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly

Product description:

Number Description Material
1 Ground channel C section steel
2 Column Double C section steel
3 Second floor and roof beam Steel truss
4 Second floor sub-beam C section steel
5 Purlin Angle steel
6 Horizon bracing Angle steel
7 Corridor/sun shelter bracket C section steel
8 Column brace Round steel bolt
9 Step board Steel plate with stripes
10 Stairs Steel stairs
11 Wall panel V950# color steel sandwich panel
12 Partition panel V950# color steel sandwich panel
13 Roof panel V950# color steel sandwich panel
14 Second storey flooring Multi-layer plywood
15 Rain shelter Single layer color steel sheet
16 Windows PVC or Aluminum sliding window
17 Door Sandwich panel, Aluminum or Steel Plate
Technical parameters:
Earthquake resistance Grade 8
Live load of corridor 2.0kN/m2
Live load capacity of roofing 0.5kN/m2
Wind resistance Grade 11 (wind speed ≤ 197.3km/h)
External and internal wall heat transmission coefficient 0.35kcal/hm2C

Factory:

Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly

Packing:

Welded K Type Prefabricated Steel Frame Buildings Durable Environmental Friendly
