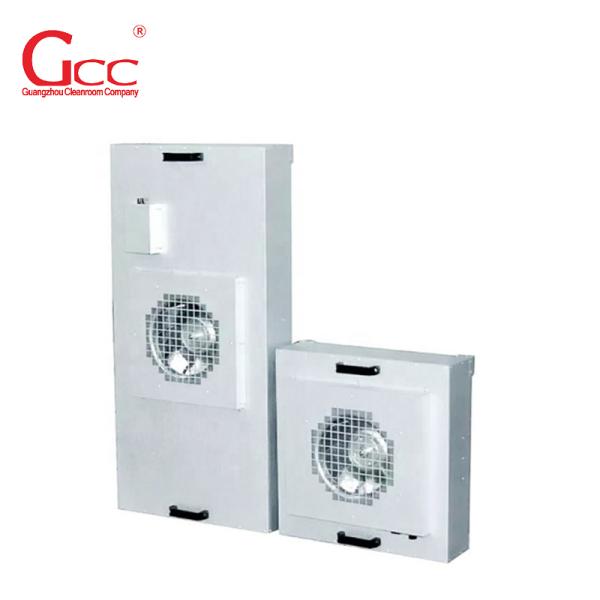

Two Stage 100W Cleanroom Fan Filter Unit With Hepa Filter
Two Stage 100W Cleanroom Fan Filter Unit With Hepa Filter
Two Stage 100W Cleanroom Fan Filter Unit With Hepa Filter
Two Stage 100W Cleanroom Fan Filter Unit With Hepa Filter
Specifications
Brand Name :
GCC
Model Number :
FFUA
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
50000 Sets/Month
Delivery Time :
7-14 Workdays
Packaging Details :
Plywood Box
Key Wrod :
Cleanroom Fan Filter Unit
Acronym :
FFU
Material :
Aluminum, Stainless Steel, Steel
Control Method :
Manually Or Group Control Dy Computer
Delivery Inspect Video :
Provide
After Sale Serve :
Online Video Support
Description

Cleanroom Fan Filter Unit with Hepa Filter

Cleanroom fan filter unit (FFU) is an air self-cleaning device that is equipped with both a primary and high-efficiency two-stage filter device. The air intake comes through the fan top, and is filtered through the two stage filter device. Clean air is then sent out through the outlet.

The device can be installed indoors on the ceiling or mounted on a shelf. It can also be arranged in a single or multiple assembly lines, so that the purification level reaches class 100 according to different requirements. In addition, the FFU can also be used to supply air for the terminal in a clean room.

Two Stage 100W Cleanroom Fan Filter Unit With Hepa Filter

Features

1. FFU shell and HEPA filter adopt split design,easy to install and replace,


2. Microprocessor control system, energy-saving and low noise,

3. Long service-life blower,up to 100,000 hours,maintenance-free and small vibration,


4. Suitable for using separately or connecting together for assembly line,


5. Made of aluminium coated zinc plate, anti-corrosion,rust-proof and light weight.

Parameters

Item GCC-FFUA-1 GCC-FFUA-2 GCC-FFUA-3 GCC-FFUA-4
Size (WxLxH) 575x875x275mm 920x615x275mm 575x1175x275mm 615x1225x275mm
Air Flow 800~900m³/h 800~900m³/h 1100~1200m³/h 1100~1200m³/h
Air Velocity 0.35~0.55m/s
Total Pressure 230Pa 230Pa 230Pa 230Pa
Power 100W 100W 100W 100W
Weight 25kgs 27.5kgs 34kgs 37.5kgs
Noise
(1m below the HEPA filter)		 55~63dB
Vibration 0.2~0.7mm/s
Control Mode Manually Or Group Control Dy Computer
Options

DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

Differential Pressure Drop Alarm Device
HEPA Filter Size (WxHxD) 570x870x69mm 915x610x69mm 570x1170x69mm 610x1220x69mm
Efficiency 99.99% 0.3μm
Frame High Quality Anodized Aluminum
Initial Pressure Drop 110Pa@0.45m/s±15%
Trait PU Foam Endless Gasket

Application

Hospital, pharmaceutical, laboratory, semiconductor, electronic, bio-engineering, clean bench, clean room, or any other place requires high cleanliness environment.
