Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office
Specifications
Brand Name :
GCC
Model Number :
FFUA
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
50000 Sets/Month
Delivery Time :
7-14 Workdays
Packaging Details :
Plywood Box
Product Name :
Aluminum Fan Filter Unit
Antistop :
FFU
Delivery Inspect Video :
Provide
After Sale Serve :
Online Support
Warranty :
One Year
Application :
Cleanrooms etc
Description

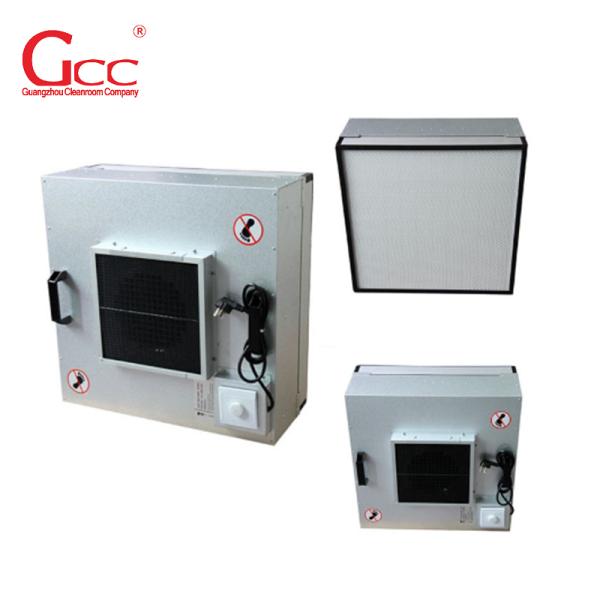

Cleanroom Aluminum Fan Filter Unit

Cleanroom Aluminum Fan Filter Unit is short for fan filter unit.it is a kind of air supply device which has motive power and filtering function.air is brought in top of FFU as passing through Hepa filters.filtered air comes out of outlet evenly,modules connection running.


Cleanroom Aluminum Fan Filter Unit provides clean air and particle controlling.FFU is installed on ceiling of clean room(25% to 100% cover rate),general dimension is 2'*2'or 2'*4' or 4'*4' or the other custom size per our customer request

Aluminum 2''*2'' 230Pa Cleanroom Fan Filter Unit For Clean Work Office

Features

1. FFU shell and HEPA filter adopt split design,easy to install and replace,


2. Microprocessor control system, energy-saving and low noise,


3. Long service-life blower,up to 100,000 hours,maintenance-free and small vibration,


4. Suitable for using separately or connecting together for assembly line,


5. Made of aluminium coated zinc plate, anti-corrosion,rust-proof and light weight.

Parameters

Item GCC-FFUA-1 GCC-FFUA-2 GCC-FFUA-3 GCC-FFUA-4
Size (WxLxH) 575x875x275mm 920x615x275mm 575x1175x275mm 615x1225x275mm
Air Flow 800~900m³/h 800~900m³/h 1100~1200m³/h 1100~1200m³/h
Air Velocity 0.35~0.55m/s
Total Pressure 230Pa 230Pa 230Pa 230Pa
Power 100W 100W 100W 100W
Weight 25kgs 27.5kgs 34kgs 37.5kgs
Noise
(1m below the HEPA filter)		 55~63dB
Vibration 0.2~0.7mm/s
Control Mode Manually Or Group Control Dy Computer
Options

DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

Differential Pressure Drop Alarm Device
HEPA Filter Size (WxHxD) 570x870x69mm 915x610x69mm 570x1170x69mm 610x1220x69mm
Efficiency 99.99% 0.3μm
Frame High Quality Anodized Aluminum
Initial Pressure Drop 110Pa@0.45m/s±15%
Trait PU Foam Endless Gasket

Application

Applying in class 10,000 to class 10 of clean room,even forming ultra-clean assembly line,clean work office,clean booth,clean closet and etc.....
