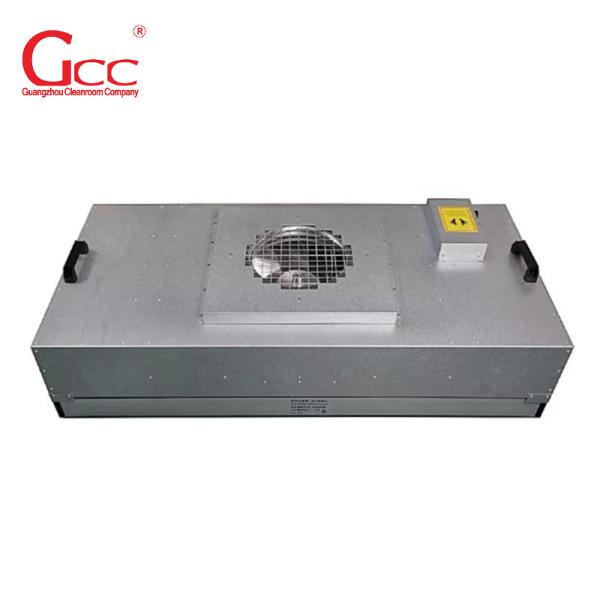

SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
SS Class 100 Cleanroom Fan Filter Unit With Overheating Protection
Specifications
Brand Name :
GCC
Model Number :
FFUT
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
50000 Sets/Months
Delivery Time :
7-14 Workdays
Packaging Details :
OPP Bag With Carton
Antistop :
Cleanroom Fan Filter Unit
Application :
Cleanrooms, Laboratories, Medical Facilities or Microenvironments etc
Material :
S/S
Control Method :
Single Control
Power Supply :
3 Levels Adjustable
Remark :
Material Can Be Customized
Description

Super thin FFU is generator set with super thin motor inside which is used in the turbulent layer and laminar flow clean room, where have limited installation space. Its speed can also reach to 0.45m/s ±20% same as other FFU.

Features

1. Overheating protection: Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .

2. The average air speed increase to 25%: Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air speed increase to 25%.

3. Life-long span: It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.

4. Space-saving:Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.

Parameters

Item GCC-FFUT-1 GCC-FFUT-2 GCC-FFUT-3 GCC-FFUT-4
Size (WxLxHmm) 575x875x275 920x615x275 575x1175x275 615x1225x275
Air Flow (m³/h) 800~900 800~900 1100~1200 1100~1200
Air Velocity (m/s) 0.35~0.55
Total Pressure (Pa) 230 230 230 230
Power (W) 100 100 100 100
Weight (kg) 25 27.5 34 37.5
Noise dB
(1m below the HEPA filter)		 55~63
Vibration (mm/s) 0.2~0.7
Control Mode Manually Or Group Control Dy Computer
Options

DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

Differential Pressure Drop Alarm Device
HEPA Filter Size (WxHxDmm) 570x870x69 915x610x69 570x1170x69 610x1220x69
Efficiency 99.99% 0.3μm
Frame High Quality Anodized Aluminum
Initial Pressure Drop 110Pa@0.45m/s±15%
Trait PU Foam Endless Gasket

Application

Semiconductor, electron, flat-panel display, disc-drive, manufacture and optics, bio-engineering, clean bench, clean room, or any other places.
