30m2 4pcs FFU Mobile Clean Room / Class 10k Clean Room
30m2 4pcs FFU Mobile Clean Room / Class 10k Clean Room
Specifications
Brand Name :
GCC
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
1000set/ month
Delivery Time :
14-30 Workdays
Packaging Details :
Plywood Box
Item Name :
Cleanroom
Frame :
Aluminum Profile, Stainless Steel Profile, Steel Profile
Wall :
Magnesium Sandwich Panel
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
After-sales Service Provided :
Online Support, Video Support,
Description

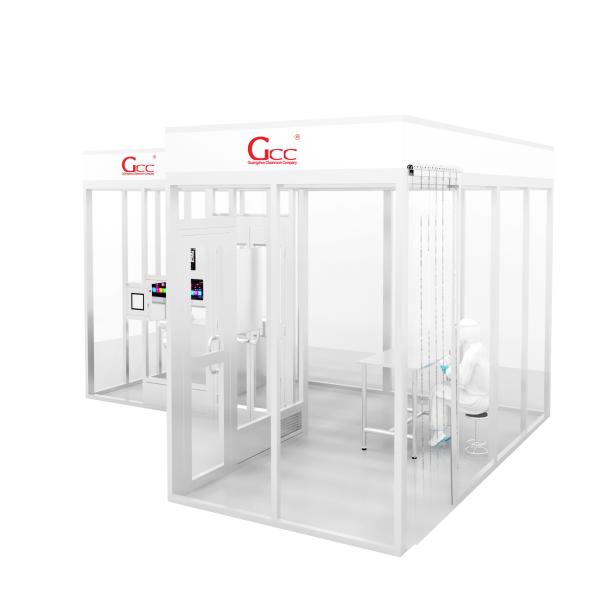

Mobile Clean Room

Cleanroom is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand. That is no matter how the outside air conditions change, its indoor all can maintain the original set requirements of cleanliness, temperature and humidity and pressure performance characteristic.

Features

1. Temperature and Relative Humidity

2. Air Velocity, Air Change Rate (ACR), and Static Pressure

3. Keeping Out Dust, Bacteria, and Other Contaminants

Proper calibration of the above conditions forms a sort of "microclimate" that is inhospitable to contaminants such as dust particles and bacteria. Meeting standards is a result of proper maintenance of the cleanroom. Regular, thorough testing is the only best practice, especially in a field where product contamination can lead to serious consequences.

Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms

Level Maximum Particles/m3 Equivalent　
　 ≥0.1 μm ≥0.2 μm ≥0.3 μm ≥0.5 μm ≥1 μm ≥5 μm
ISO 1 10b d d d d e 　
ISO 2 100 24b 10b d d e 　
ISO 3 1000 237 102 35b d e Class 1
ISO 4 10000 2370 1020 352 83b e Class 10
ISO 5 100000 23700 10200 3520 832 d,e,f Class 100
ISO 6 1000000 237000 102000 35200 8320 293 Class 1,000
ISO 7 c c c 352000 83200 2930 Class 10,000
ISO 8 c c c 3520000 832000 29300 Class 100,000
ISO 9 c c c 35200000 8320000 293000 Room Air

Specification Table

Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed (m/s) 0.45m/s ±20% 0.45m/s ±20%
Temperature (optional) 18-28°C
Humidity (opiional) 50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw

Our Strength

Besides designing your cleanroom, GCC can advise on how to implement management systems to maintain your cleanroom and minimize the risk for contamination.
