Specifications
Brand Name :
GCC
Certification :
QS/SC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000 Sets/Month
Delivery Time :
14-30 Workdays
Packaging Details :
Plywood Box
Project :
Modular Workshop Cleanroom
Style :
Simple
Frame :
Aluminum Profile, Stainless Steel Profile, Steel Profile
Wall :
Magnesium Sandwich Panel
Characteristic :
Control Air Cleanliness
Using Field :
Workshop
Description

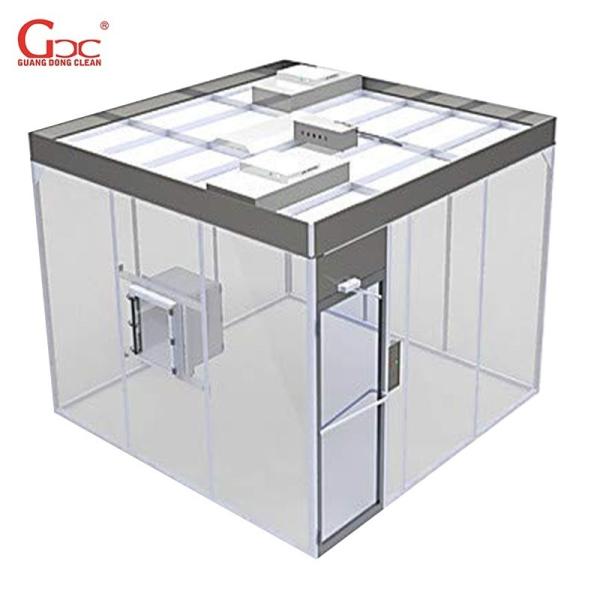

Modular clean room is one kind of clean room, it can quickly improve the cleanliness of the equipment. Due to low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions.

Modular clean room adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting
steel as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-300K.

Features

1. Flexible assembly: Compared to the tradtitional clean booth it is easy to installation, cost effective with less investment and quick return, as it cost shorter construction period in the assembling frame by manufacturer.


2. Selected high quality material: import for the grind curtain and adjustable plastiv cup and universal wheel, convenience for installation and maintance.

3. Humanized structure: Compared to the clean bench it has the multi-function, which can be used as a unit or combined with another clean equipment together. Even you can assemble it on the production line to change into dust-free production.

Level Of Airborne Particulate Cleanliness In Prefab Cleanrooms

Level Maximum Particles/m3 Equivalent
  ≥0.1 μm ≥0.2 μm ≥0.3 μm ≥0.5 μm ≥1 μm ≥5 μm
ISO 1 10b d d d d e
ISO 2 100 24b 10b d d e
ISO 3 1000 237 102 35b d e Class 1
ISO 4 10000 2370 1020 352 83b e Class 10
ISO 5 100000 23700 10200 3520 832 d,e,f Class 100
ISO 6 1000000 237000 102000 35200 8320 293 Class 1,000
ISO 7 c c c 352000 83200 2930 Class 10,000
ISO 8 c c c 3520000 832000 29300 Class 100,000
ISO 9 c c c 35200000 8320000 293000 Room Air

Specification Table

Area 15㎡ 30㎡ 50㎡ 100㎡
Material Aluminum frame/Baking steel plate/lnsulating glass window
FFU class 1-100 12pcs 24pcs 48pcs 96pcs
FFU class-1K 3pcs 6pcs 9pcs 18pcs
FFU class-10K 2pcs 4pcs 6pcs 12pcs
Speed (m/s) 0.45m/s ±20% 0.45m/s ±20%
Temperature (optional) 18-28°C
Humidity (opiional) 50-70% 50-70%
Illumination 400-800LUX
Power 2.4-7kw 4.8-10kw 9.6-19kw 19.2-30kw

Our Advantage

We focus on all kinds of solutions for prefab cleanroom. If you are unsure of what tpye of prefab cleanroom you may need for your particular project, please feel free to contact us. We will provide a best solution according to your requirement.
