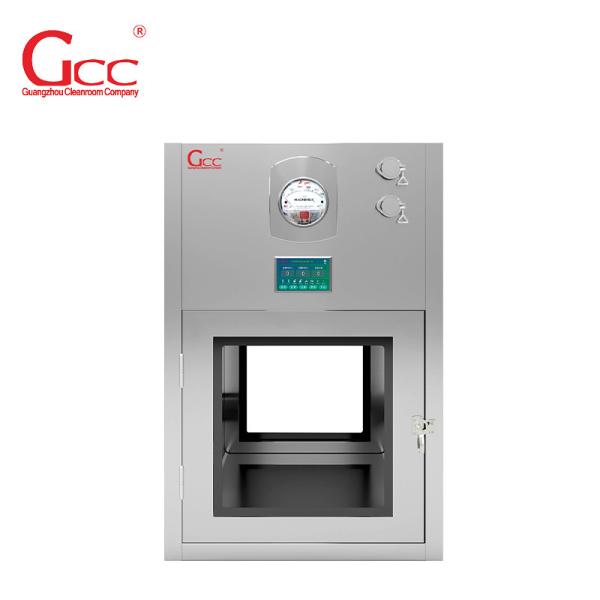

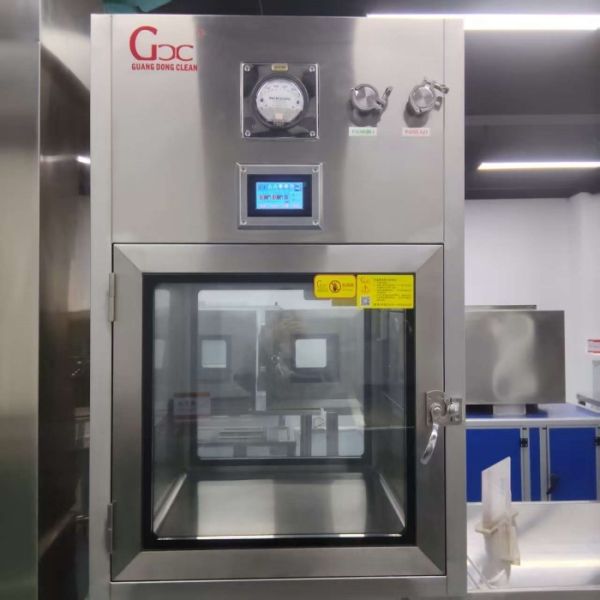

Class 100 Dynamic Mechanical Cleanroom Pass Box
Class 100 Dynamic Mechanical Cleanroom Pass Box
Specifications
Brand Name :
GCC
Model Number :
PBS
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50000 Sets/Month
Delivery Time :
7-14 Workdays
Packaging Details :
Plywood Box
Product Name :
Pass Box
Type :
Dynamic Pass Box
Interlock :
Electrical/ Mechanical
Warranty :
1 Year
After-Sales Service :
Online Support
Quality Check :
Delivery Inspection Video
Description

Stainless Steel Dynamic Transfer Hatch For Cleanroom

Standard Pass-Thrus

A pass-through, or pass-thru, is an enclosed space with doors on opposite sides that acts as an airlock in a cleanroom to allow for the transfer of materials between the cleanroom and another space.

Pass-throughs minimize the contaminant transfer and help maintain the cleanroom environment. A cleanroom pass-through can be floor or wall mounted, and can take the form of a cabinet, chamber, or window.

Clean Air Products provides a full line of standard pass-thru cabinets, pass-thru chambers, and pass-thru windows.
A range of sizes and configurations are available to meet your unique requirements. We also offer custom pass-throughs that can be tailored to your specifications.

Products Specification

Model GCC-PBS500 GCC-PBS600 GCC-PBS700

External Size (W*D*H)

 700x570x1050mm 800x670x1150mm 900x770x1250mm

Work Zone (W*D*H)

 500x500x500mm 600x600x600mm 700x700x700mm
Purification rank Class 100

Material (Option)

1: Entirety Sus304.(T=1.2/1.5mm)

2: Entirety sus201. (T=1.2/1.5mm)

3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)

4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control System

1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.

2: Pass Box inside bottom corner is round shape without any dust

accumulation .

3: Double layer vacuum glass have very good appearance

4: Software computer interlocking door with long time using life

5: Air speed is 0.45m/s adjustable
UV Light 1 Pcs
Power Supply 220V/50Hz
packing Size 800x870x1300mm 1000x870x1400mm 1100x970x1500mm
Packing material Standard Export Poly wood Packing(Fumigant free material)

Quality Control


Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing

Warranty


Our equipment is warranty for 2 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.

Class 100 Dynamic Mechanical Cleanroom Pass Box

Class 100 Dynamic Mechanical Cleanroom Pass Box
