Specifications
Brand Name :
INFINITE STARS
Model Number :
D09
Certification :
CE, ISO14001, ISO9001, ISO45001
Place of Origin :
China
MOQ :
7 Sets
Price :
USD 1200~1500/Set
Supply Ability :
2000 Sets PER Month
Packaging Details :
7 units/20gp 17 units/40hq
Material :
Steel
Wall Panel :
50mm rock wool sandwich panel
Loading Qty :
7 units/20gp 17 units/40hq
Window :
Plastic Steel Window
Port :
SHANGHAI NINGBO
Main Structure :
Galvanized Light Steel Frames
Earthquake Resistance :
Grade 8
Dimensions :
5950mm(L) * 3000mm(W) * 2800mm(H)
Usage :
Temporary/Permanent Housing
Keyword :
Moduler Homes
MOQ :
7 PCS
Description

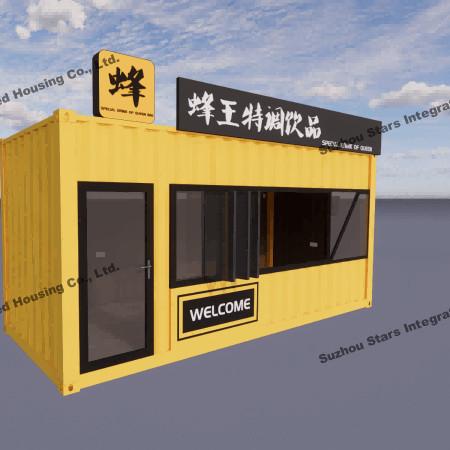

Modern Detachable Container House Tiny Shop Easy Fast Transportation Assembly Relocation

Detachable container houses as shops offer numerous benefits. Their modular design enables rapid setup and relocation, while their sturdy steel construction ensures durability. Customizability caters to specific business needs, and excellent thermal insulation provides a comfortable shopping environment. The rapid deployment process reduces costs, and the eco-friendly nature of these structures aligns with sustainability goals. High safety standards ensure the protection of both goods and customers. Overall, detachable container houses provide a cost-effective, efficient, and environmentally responsible solution for shops looking for flexibility and durability in their business operations.

Standard Quick Assembly Container House Datasheet
Product Specification:
3-meter standard container
Length(mm) 5950(5730)
Width(mm) 3000(2800)
Height(mm) 2800(2500)
Center column
Roof Flat roof, free drainage
Number of floors ≤3
Design parameters Service life 5-8 years
Ground live load 1.8KN/㎡
Roof live load 0.5KN/㎡
Wind load 0.6KN/㎡
Seismic degree 8
Structural corner column galvanized cold rolled section steel, t=2.3mm, material Q235B
roof main beam galvanized cold rolled section steel, t=2.3mm, material Q235B
roof sub-beam Galvanized square steel 5*5, t=1.5mm, radian galvanized square steel 4*6t= 1.2mm material Q235B
floor main beam galvanized cold-rolled section steel, t=2.3mm, material Q235B
floor sub-beam galvanized square steel 4*8 (5), galvanized square steel 8*8 (4) material Q235B
Paint Graphene Powder spraying (Electrostatic spraying)
Roof Roof panel 0.40mm thick color steel plate, color white gray
Ceiling 0.25mm thick 811 ceiling, color white gray
Floor Decorative surface
basic floor 18mm sanding board
Wall Thickness 50mm thick color steel glass fiber sandwich board; The outer and inner plates are made of 0.3mm aluminum plated zinc color steel plate
Heat preservation 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion performance is class A non-combustible
Color white gray PE coating
Door Spec(mm) Width X height =920*2030 common door
Material Steel door
Window Spec(mm) Front window: width X height =920*1200; Rear window (standard) : width X height =920*1200;
Frame Plastic steel window single glass
Glass common
Electricity Voltage 220V~250V
Wire input power wire is 4 square, AC wire is 4 square, socket wire is 2.5 square, lighting switch wire is 1.5 square
Circuit breaker High break Miniature Circuit breaker (32A)
Lamp tube Two sets of circular LED fluorescent lamps
Socket 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A

As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.

Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.

As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.

Suzhou Stars Integrated Housing Co., Ltd. mainly has five types of products: folding container house, flat pack container house, detachable container house, modified shipping container (in development), and steel structure construction, which can be widely used in many fields, such as dormitory, camp, office, canteen, shop, toilet and shower, viewing pavilion, firefighting station, isolation ward, etc.
