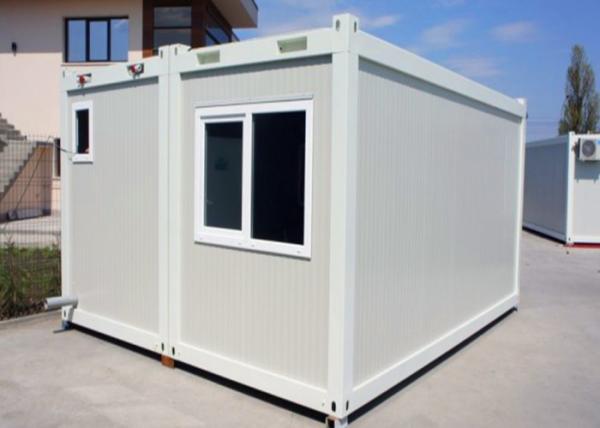

Roller Shutter WindowFlat Pack Container House Be Used for Holiday House
Product Introduction
Low Cost Modular Detachable Container House China Mobile House
1) Can be use as dormitory temporary hospital toilet office storage room etc
2) Can be installed in a short time assembled by bolts with a high intensity
3) Can be used repeatedly with a life span of more than 15 years
4) With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti-corrosive
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
6) The special design enables to carry this container house in a whole without damages, so it's quite suitable for movable projects.
Product Parameter
Specification: Standard Container | Length(mm) | 6000 |
Width(mm) | 2438 | |
Height(mm) | 2896 | |
Roof Type | FlAT Roof with internal water draining design | |
Storey | ≦3 | |
Design Data (standard) | Design Serrvice Life | 25 Years |
Floor Live Load | 2.0 KN/m2 | |
Roof Live Load | 0.5 KN/m2 | |
Weather Load | 0.6 KN/m2 | |
Seismic | 8 Degree | |
Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235B |
Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235B | |
Roof Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B | |
Base Beam | Galvanized Cold Roll Steel, Material:Q235B | |
Base Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B | |
Metal Surface Treatment | Using graphene powder electrostatic spray or paint spraying. | |
Roof | Roof Panel | SGLC color steel sheet, Color: White-gray |
Insulation | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
Top Ceiling | SGLC color steel sheet, Color: White-gray | |
Floor | Floor Surface | PVC Flooring. Color:Light Gray |
Base | Cement Fiber Board, Density≧1.3g/cm2 | |
Insulation(Optional) | Glass wool, with single side aluminum foil, Class A fire rating ( Non-combustible) | |
Base External Plate ( Optional) | SGLC Sheet | |
Wall | Interface | S type interface (cold biidge effect) |
Color Steel Sheet | Aluminum zinc coated steel color embossed plate | |
Bulk Density | Glass wool(Density:64kg/m3)or Rock wool (Density:85kg/m3) | |
Door | Specification (mm) | W*H=850*2030 |
Material | Steel Door | |
Window | Specification (mm) | W*H=1150*1100 |
Frame Material | UPVC, 60 series | |
Glass | 5mm double glaze |
Product Features
1) Fast and Efficient
All products and components adopt factory prefabrication, standardized production, convenient transporation and fast on - site assembly.
(3 workers, 1 crane, 10-20 units assembled per day)
2) Flexible Assembly
Horizontal infinite connection, vertical free stack, vertical up to 3 layers, and can be set up stairs and pllatforms.
3) Environment Friendly
Modules are esaily removable at the end of the project making the site in its initial conditions and appearance. To ensure the concept of "zero waste" on site.
Our servicces:
If you are interested in our prefab house container homes china ,please kindly provide to us your prefab house drawings or the following information,so that we can give you a better offer.
1).Dimension:Length,width,height,roof pitch
2).Doors and windows:dimensions,quantity,the position to fix.
3).Local climate:Wind speed,snow/rain load,earthquake.
4).Insulation materials:sandwich panel or steel sheet.
5).Crane beam:Do you require a crane beam inside you steel structure building?
and what is the capacity?
6).Where does your house plan to use?
7).Are there any materials that are not allowed to import into your country?
