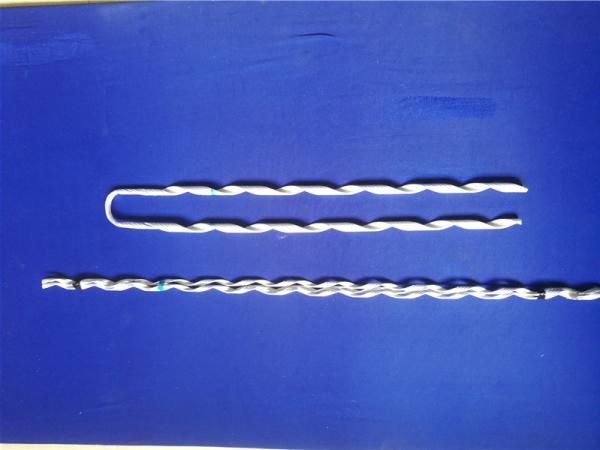

ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
ADSS 600m ZH-7 30KN Preformed Dead End Tension Clamp
Specifications
Brand Name :
HLLP
Model Number :
ANY 0000
Place of Origin :
CHENGDU CHINA
MOQ :
100 sets
Price :
US$ 0.4-5 per set
Payment Terms :
T/T, L/C
Supply Ability :
100000 sets per month
Delivery Time :
10-20 days
Packaging Details :
Carton pallets,wooden cases, or as required by customer
Material :
galvanized steel , aluminum clad steel
Product length :
300-2000mm
Grip strenth :
not less than 95% RTS of ADSS
Helical direction :
right hand is standard
Sandard :
GB,or according to customer requirement
Customized products :
yes
Description

High tension dead end for ADSS

High tension dead end for ADSS is made of aluminum-clad steel wire or galvanized steel wire,It is designed as two layers structure consisting of structural reinforcing rods and dead end component to terminate All Dielectric Self-Supporting aerial fiber optic cable (ADSS),and is intended for relative midium tension application usually associated with long span constraction, more than 600m span.The product grips the ADSS cable to prevent damaging the fragile plastic jacket or internal optical fibers, and the grip strenth is not less than 95%RTS of the ADSS cable.During installation,care should be taken to ensure a successful installation .This product is intended for use by trained crafts people only.

Model Holding Strength Available Span Length of Grip dead-end Length of Reinforcing Rods (mm) Weight(kg) General Assembly
Available Dia of Cable (KN) (m) (mm) VerticleShackle Thimble Clevis U-Shackle
(mm) /Extension Link
ANY 0940 020 8.6-9.4 20 200/300 800 1100 0.88 ZH-7 XH 020 U-7
ANY 1010 020 9.5-10.1 20 200/300 800 1100 1.02 ZH-7 XH 020 U-7
ANY 1070 020 10.2-10.7 20 200/300 800 1100 1.06 ZH-7 XH 020 U-7
ANY 1140 020 10.8-11.4 20 200/300 800 1100 1.08 ZH-7 XH 020 U-7
ANY 1220 020 11.5-12.2 20 200/300 800 1100 1.35 ZH-7 XH 020 U-7
ANY 1290 020 12.3-12.9 20 200/300 800 1100 1.38 ZH-7 XH 020 U-7
ANY 1370 020 13.0-13.7 20 200/300 800 1100 1.54 ZH-7 XH 020 U-7
ANY 1460 020 13.8-14.6 20 200/300 800 1100 1.57 ZH-7 XH 020 U-7
ANY 1550 020 14.7-15.5 20 200/300 800 1100 1.6 ZH-7 XH 020 U-7
ANY 0940 030 8.6-9.4 30 300/400 1100 1400 1.17 ZH-7 XH 020 U-7
ANY 1010 030 9.5-10.1 30 300/400 1100 1400 1.35 ZH-7 XH 020 U-7
ANY 1070 030 10.2-10.7 30 300/400 1100 1400 1.4 ZH-7 XH 020 U-7
ANY 1140 030 10.8-11.4 30 300/400 1100 1400 1.43 ZH-7 XH 020 U-7
ANY 1220 030 11.5-12.2 30 300/400 1100 1400 1.8 ZH-7 XH 020 U-7
ANY 1290 030 12.3-12.9 30 300/400 1100 1400 1.84 ZH-7 XH 020 U-7
ANY 1370 030 13.0-13.7 30 300/400 1100 1400 2.04 ZH-7 XH 020 U-7
ANY 1460 030 13.8-14.6 30 300/400 1100 1400 2.08 ZH-7 XH 020 U-7
ANY 1550 030 14.7-15.5 30 300/400 1100 1400 2.12 ZH-7 XH 020 U-7
ANY 1220 040 11.5-12.2 40 400/500 1260 1800 2.14 ZH-7 XH 070 U-7
ANY 1290 040 12.3-12.9 40 400/500 1260 1800 2.19 ZH-7 XH 070 U-7
ANY 1370 040 13.0-13.7 40 400/500 1260 1800 2.44 ZH-7 XH 070 U-7
ANY 1460 040 13.8-14.6 40 400/500 1260 1800 2.49 ZH-7 XH 070 U-7
ANY 1550 040 14.7-15.5 40 400/500 1260 1800 2.54 ZH-7 XH 070 U-7
ANY 1650 040 15.6-16.5 40 400/500 1260 1800 2.92 ZH-7 XH 070 U-7
ANY 1370 050 13.0-13.7 50 500/600/700 1400 2000 2.7 ZH-7 XH 070 U-7
ANY 1460 050 13.8-14.6 50 500/600/700 1400 2000 2.76 ZH-7 XH 070 U-7
ANY 1550 050 14.7-15.5 50 500/600/700 1400 2000 2.81 ZH-7 XH 070 U-7
ANY 1650 050 15.6-16.5 50 500/600/700 1400 2000 3.23 ZH-7 XH 070 U-7
ANY 1370 060 13.0-13.7 60 600/700/800 1560 2200 2.98 ZH-7 XH 070 U-7
ANY 1460 060 13.8-14.6 60 600/700/800 1560 2200 3.04 ZH-7 XH 070 U-7
ANY 1550 060 14.7-15.5 60 600/700/800 1560 2200 3.11 ZH-7 XH 070 U-7
ANY 1650 060 15.6-16.5 60 600/700/800 1560 2200 3.57 ZH-7 XH 070 U-7
ANY 1460 070 13.8-14.6 70 700/800/900 1600 2400 3.2 ZH-7 XH 070 U-7
ANY 1550 070 14.7-15.5 70 700/800/900 1600 2400 3.27 ZH-7 XH 070 U-7
ANY 1650 070 15.6-16.5 70 700/800/900 1600 2400 3.77 ZH-7 XH 070 U-7
ANY 1750 070 16.6-17.5 70 700/800/900 1600 2400 4.12 ZH-7 XH 070 U-7
ANY 1870 070 17.6-18.7 70 700/800/900 1600 2400 4.64 ZH-7 XH 070 U-7
ANY 1550 080 14.7-15.5 80 800/900/1000 2000 3000 4.08 ZH-10 XH 100 U-10
ANY 1650 080 15.6-16.5 80 800/900/1000 2000 3000 4.71 ZH-10 XH 100 U-10
ANY 1750 080 16.6-17.5 80 800/900/1000 2000 3000 5.14 ZH-10 XH 100 U-10
ANY 1870 080 17.6-18.7 80 800/900/1000 2000 3000 5.79 ZH-10 XH 100 U-10

Products can be customized according to customer requirements.
