Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Specifications

Brand Name :

SPM, Halliburton

Model Number :

TWS2250, QWS2500, HT400, TWS600S

Certification :

API

Place of Origin :

CHINA

MOQ :

Price :

USD

Payment Terms :

T/T

Supply Ability :

10000 per month

Delivery Time :

in stock

Packaging Details :

Wooden box

Description

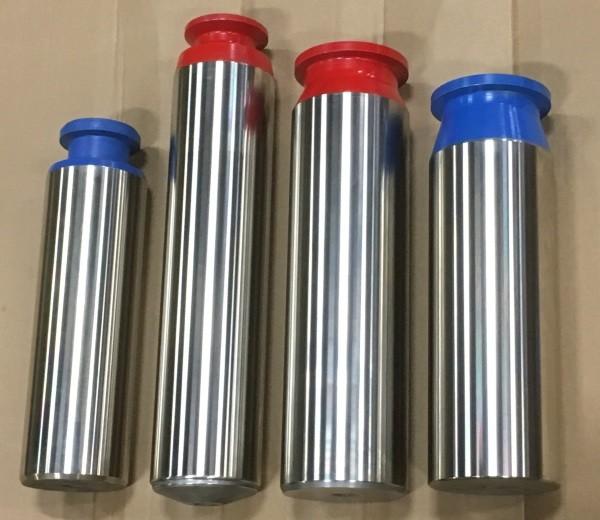

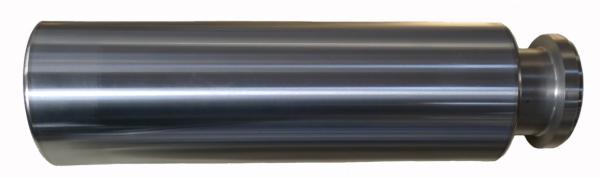

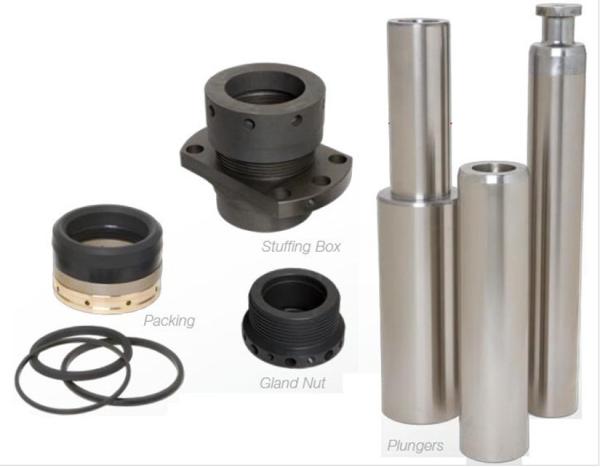

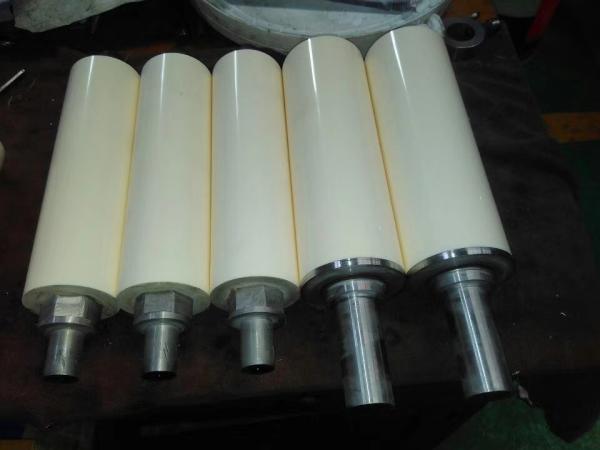

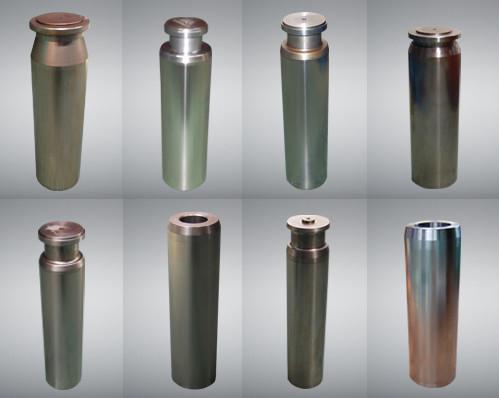

Plungers with most advanced coatings

We keep improving and developing the most advanced coating technologies which include widely used AMS 4775 alloy coating, Colmonoy coating, ceramic coating and tungsten carbide coating. Our tungsten carbide plunger runs twice as long as nickel alloy coated in field testing.

Here list only a few of the standard plungers that we are manufacturing.


Pump Manufacturer	Pump Model	Plunger Size	Plunger Part No.	Pump Manufacturer	Pump Model	Plunger Size
SPM	TWS600	2.50"	3P104740	SPM	TWS2250	4.00"
SPM		2.75"	3P101733	SPM		4.50"
SPM		3.00"	3P100325	SPM		5.00"
SPM		3.50"	3P100293	SPM		5.50"
SPM		4.00"	3P100813	SPM		5.75"
SPM		4.50"	3P100181	SPM		6.00"
SPM	TWS1800/2000	3.75"	3P103887	SPM		6.50"
SPM		4.00"	3P100339	SPM	QWS-2000-2500	3.75"
SPM		4.50"	3P100654	SPM		4.00"
SPM		5.00"	3P100233	SPM		4.50"
SPM		5.50"	3P107060	SPM		5.00"
SPM		5.75"	3P107061	SPM		5.50"
SPM		6.00"	3P107062	SPM		5.75"
SPM		6.50"	3P100258	SPM		6.00"
Halliburton	HT-400	4.00"		(OPI)	EOPI1800AWS	4.50"
Halliburton	HT-400	4.50"		OPI, OMEGA	OPI1300/1800 AWS	5.00"
Gardner Denver	XOPI1300 AWS	4.00"		J-mac	TWS2250	4.00"
Gardner Denver	GD2250	4.00"		J-mac	TWS2250	4.50"
Gardner Denver	GD2250	4.50"		J-mac	QWS2500	4.00"
Gardner Denver	GD2250	5.00"		J-mac	QWS2500	4.50"

Premium Rig Parts Well Service Line Sheet

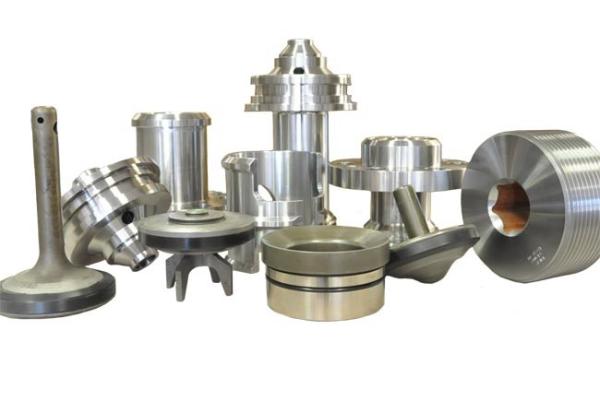

Well Service Expendables		Brands		Type/Models

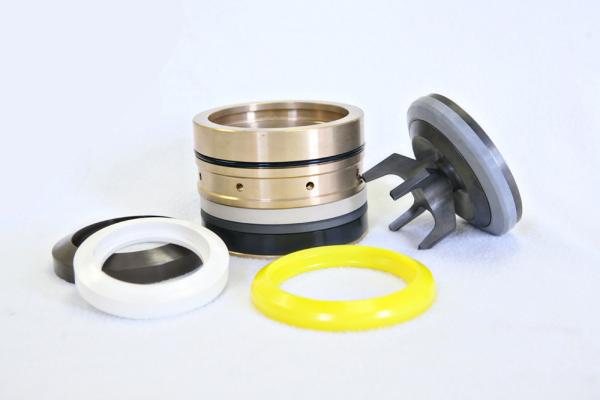

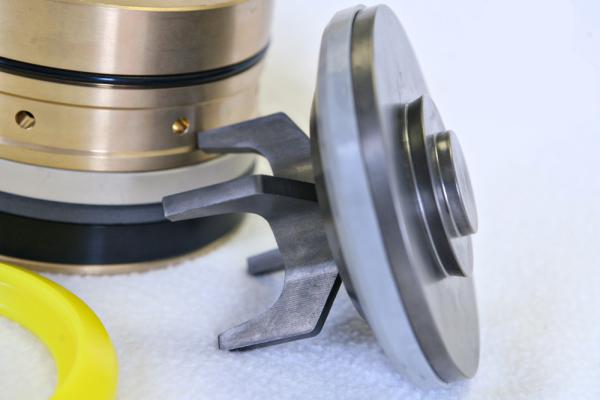

•	Valve Assembly	•	SPM	•	SPM TWS600S

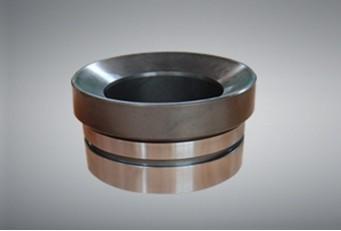

•	Valve Seat	•	SJ Serva		SPM TWS2250
• Valve Spring		• Halliburton		• SPM QWS2500
•	Fluid End Spares	•	Gardner Denver		HT400

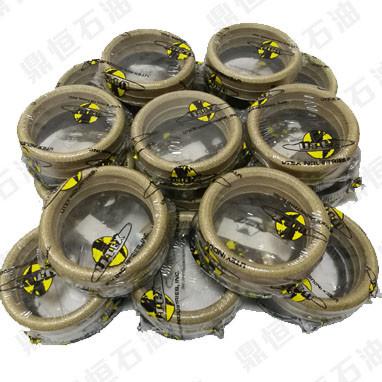

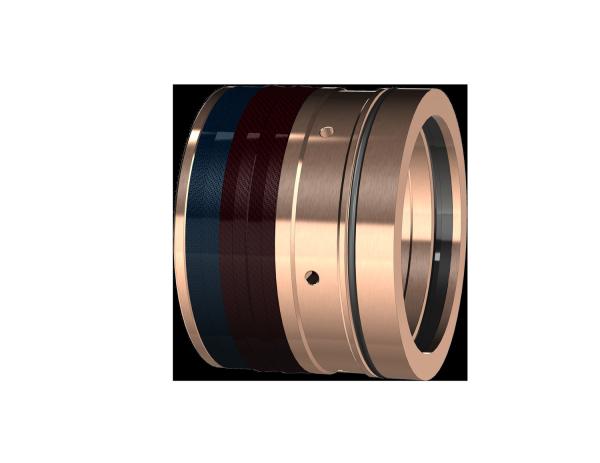

• Plunger Packing		• National Mission		• GD HD2250
•	Plungers	•	Dragon	•	SPM TWS2500
Centrifugal Pumps and Parts		•		•	SPM QWS 2800
		•	Shanghai Qinghe	•	TPA2250
• Mission Magnum I		•		• SJS-TP600s
• Mission Sandmaster				• TSC MF2250
• Mission Magnum XP				• QPA2500

				•

Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Push Rod Subassembly
L-2 Spacer
	Loc	Qty	Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer	1	3	316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223	2	3	8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM	3	3	316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM	4	3	316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM	5	3	316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM	6	3	316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161	7	3	70.33739.
Seal, Push Rod, L-Spacer, HT-400TM	8	6	316.10014.

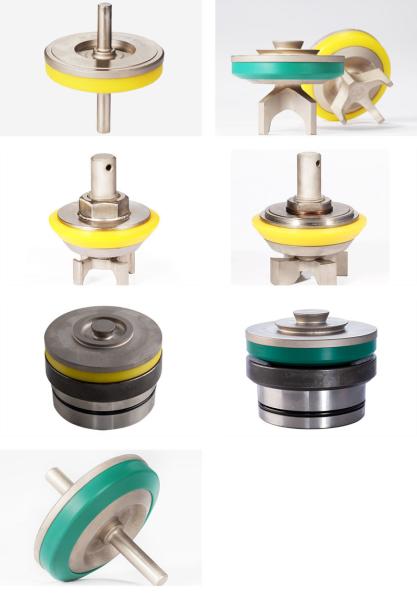

Discharge Valve Subassembly
			Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Cover, HT-400TM	1	3	316.2102.	316.2202.	316.2202.	316.2502.	316.2502.
Cover, Discharge, Double Guided Valve, HT-400TM	2	6	316.2107.	316.23091.	316.23091.	316.24044	316.24044
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM	3	3	316.21052.	316.22052.	316.22052.	316.25052	316.25052
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM	4	6	316.21051.	316.22051.	316.22051.	316.25051.	316.25051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass	5	6	316.22005.	316.22005.	316.22005.	316.22007.	316.22007.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400	6	6	316.22004.	316.22004.	316.22004.	316.22006	316.22006
Spring, Valve, HT-400TM, 36lb/in	7	6	316.2108.	316.2108.	316.2308.	316.27259	316.27259

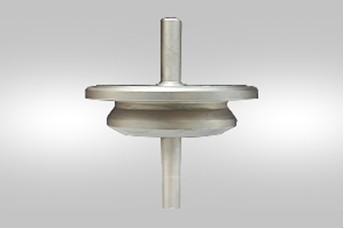

Valve, HT-400, Frac	8	6	316.21007.	316.21007.	316.22048.	316.24027	316.24027

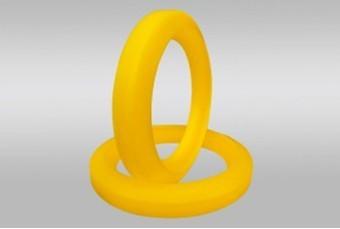

Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow)	9	6	316.21048.	316.21048.	316.22046.	316.24026	316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown)	9	6	316.21006.	316.21006.	316.22049.	316.24037	316.24037
Seat Valve, HT-400TM, Tapered	10	6	316.21008.	316.21008.	316.210047.	316.24024	316.24024
O-ring, 90 Duro	11	6	8.34037.	8.34037.	8.34041.	8.34045	8.34045
Retainer, Guide Bushing, HT400	12	6	316.21096	316.21096	316.23953	316.24043	316.24043

Suction Valve Subassembly
			Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast	1	3	316.22977.	316.22977.	316.23034	316.25840.	316.25840.
Boot, Suction and Stop, HT-400TM	2	6	316.25233.	316.25233.	316.25233	316.25233.	316.25233.
Spring, Lock, HT-400	3	3	316.2125.	316.2125.	316.22252.	316.22253.	316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass	4	6	316.22005.	316.22005.	316.22005.	316.22007.	316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM	5	6	316.22004.	316.22004.	316.22004.	316.22006.	316.22006.
Spring, Valve, HT-400TM, 36lb/in	7	6	316.2108.	316.2108.	316.2308.	316.27259	316.27259
Valve, HT-400, Frac	8	6	316.21007.	316.21007.	316.22048.	316.24027	316.24027
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow)	9	6	316.21048.	316.21048.	316.22046.	316.24026	316.24026
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown)	9	6	316.21006.	316.21006.	316.22049.	316.24037	316.24037
Seat Valve, HT-400TM, Tapered	10	6	316.21008.	316.21008.	316.210047.	316.24024	316.24024
O-ring, 90 Duro	11	6	8.34037.	8.34037.	8.34041.	8.34045	8.34045
Retainer, Guide Bushing, HT400	12	6	316.21096	316.21096	316.23953	316.24043	316.24043


Plunger/cylender Head Cover Subassembly
			Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Retainer, Cover HT-400TM	1	6	316.2102.	316.2102.	316.2202.	316.2502.	316.2506.
Cover, Cylinder Head, HT-400TM	2	3	316.2107.	316.2107.	316.2207.	316.2407.	316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover	3	6	316.21052.	316.21052.	316.22052.	316.25052.	316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover	4	6	316.21051.	316.21051.	316.22051.	316.25051.	316.25073.
Nose, Plunger, HT-400TM	5	3	316.2131.	316.2231.	316.2331.	316.2331.	316.2331.
Seal, Plunger Nose Assembly, HT-400TM	6	3	316.2130.	316.2230.	316.2330.	316.2330.	316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM	7	3	316.21026.	316.22294.	316.23085.	316.24296.	316.25162.
Tie Rod, Plunger, HT-400TM	8	3	316.21028.	316.21028.	316.21028.	316.25165.	316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose	9	3	316.21059.	316.22302.	316.23089.	316.24336.	316.25172.

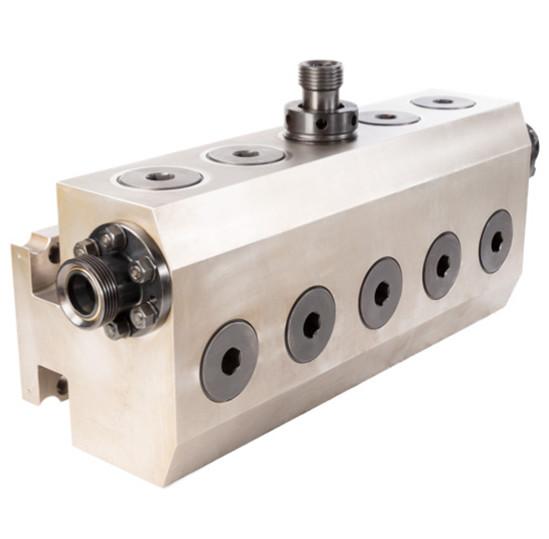

Fluid-end/flange discharge section subassembly
			Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch
Flange, discharge, HT-400TM, BLANK	1	1		316.22980.	316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand	1a	1	316.21676.	316.23019.	316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand	1b	1	316.21677.	316.23017.	316.23017.
Seal, Discharge passage,HT-400TM	2	6	315.27117.	316.2547.	316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL	3	4	316.11621.	316.11621.	316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange	4	4	316.23013.		316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC	5	1	316.27488.	316.27488.	316.27488.
Nut, Top Tie Bolt, HT-400TM, TC	6	2	316.25501.	316.25501.	316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt,	7	2	316.22493.	316.22493.	316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM	8	2	316.2145.	316.2545.	316.2545.

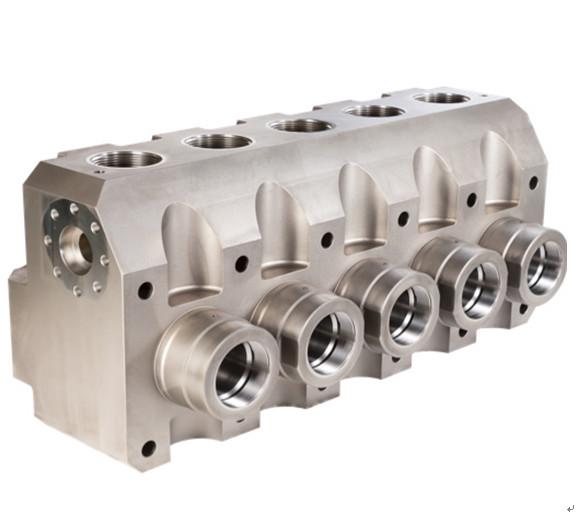

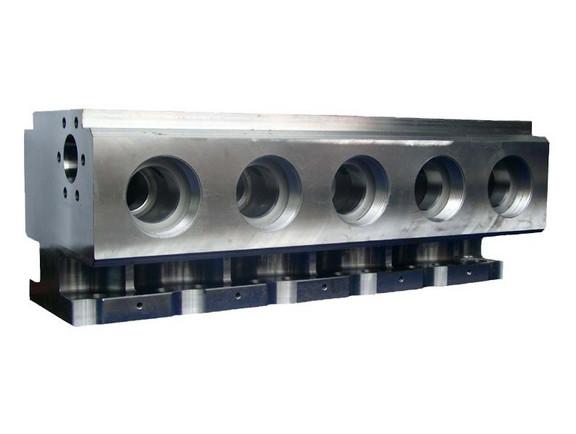

Fluid End Section, HT-400TM PUMP,Not Sleeved	9	3	316.21951.	316.22982.	316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF	10	2	70.32760.		70.32760.

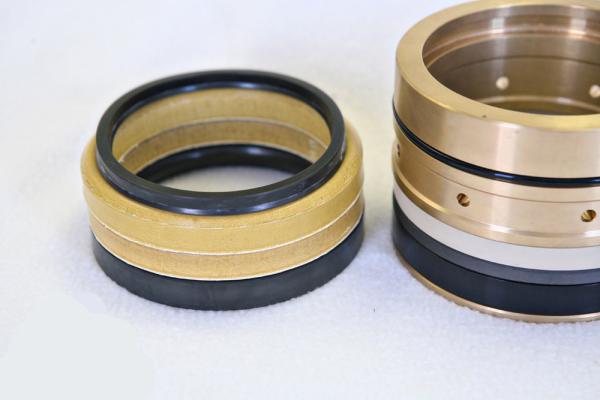

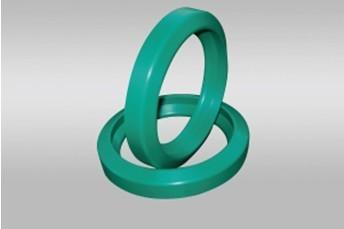

Packing Subassembly
			Plunger Size
	Loc	Qty	3-3/8 inch	4-inch	4-1/2 inch	5-inch	6-inch
Adapter, Header	1	3	316.21503	316.22503	316.23503	316.24503	316.27503
Ring Header	2	3	316.21501	316.22501	316.23501	316.24501	316.27501
Packign Set, 4-in.x 5-in, x 1/2-in. Stock, 3 Rings, Hard, Acid Service	3	1	316.21525	316.22525	316.23525	316.24525	316.27525
Ring, Backup, Packing, 4-in x 5-in.	4	3	316.21393	316.22393	316.23393	316.24393	316.27393
Carrier, Seal and Packing, 4-in	5	3	316.21396	316.22396	316.23396	316.24396	316.27396
Seal, Lube, Packing, WQ, 4-in x 4-1/2-in. x 9/16-in	6	3	316.21395	316.22395	316.23395	316.24395	316.27395
O-Ring, 90D, 5-in. x 4 3/4-in.x 1/8-in	7	3	8.34040	8.34045	8.34049	8.34053	8.34058

Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Pump Mfr.	Pump Model	Plunger Size	Valve Part No.	Seat Part No.	Insert Part No.	Spring
BJ Services	Pacemaker, (Suction)	3"-5"	PI 05800	PI 05801	2P110363	*
BJ Services	Pacemaker, (Discharge)	3"-5^u	2A109538PP	2A109542	2P110357	*
CMW	Clarksville, 1300HP	3.75M"	2A109538PP	2A109542	2P110357	*
( SPM)		4.50"-5^H	2A109539PP	2A109543	2P110363	*
		5.50"-6"	2A109540PP	2A109544	2P110359	*
		6.50"-7.50"	2A109627PP	2A109621	2P110360	*
Gardner Denver (Geoquip)	LC-350, H-600	3.50M.50"	2A109537PP	2A109541	2P110356	4P100198
	H-880	3.50M"	2A109538PP	2A109542	2P110357	*
	H-1600	4.50"-5"	2A109539PP	2A109543	2P110363	4P100348
	C-1300,1800	5.50"-6"	2A109540PP	2A109544	2P110359	4P106813
	J-2000	6.50"-7.50"	2A109627PP	2A109621	2P110360	4P100281
Gist	GT-78-1000	4^,,-5.25^H	2A109538PP	2A109542	2P110363	*
Gist		5.50"-7.50^H	2A109540PP	2A109544	2P110359	*
Oilwell	346P, 46P, 326P		PI 05740	PI 05750	PI 05760	4P102B8B
	SA-625, -626,-630,-634-5		2A109608PP	2A109605	2P110355	4P102383
	SA-640-5_/SA-650-L		2A109538PP	2A109542	2P110357	*
	SB-644-5,SA-644-5,-10 SA650-5,-10,56-650-5		2A109539PP	P105802	2P110363	*
	Super 48,S-824,SA-824		2A109627PP	2A109621	2P110360	*
	W-350, W-500	3.50M"	2A109537PP	2A109541	2P110356	*
		4.50"-5"	2A109539PP	2A109541	2P110363	*
Omega	1000-1 300HP	4"-5.25"	2A109539PP	2A109541	2P110363	*
		5.50"-7.50ⁿ	2A109540PP	2A109544	2P110359	*
	1300-1800HP	B.75M"	2A109538PP	2A109542	2P110357	*
	MW/MWA Fluid End	4‘50"-5"	2A109539PP	2A109543	2P110363	*
	W-1300,-1800,-2000	5.50^u-6"	2A109540PP	2A109544	2P110359	*
		6 .50"7.50"	2A109627PP	2A109621	2P110360	*
Gardner Denver (OPI)	350-500 AWS	2.75"-3^H 3.50"-4"	2A109608PP 2A109537PP	2A109605 2A109541	2P110355 2P110356	* *
		4.50"-5^H	2A109539PP	2A109543	2P110363	*
	880 AWS, 1600 BWS	3.50M"	2A109538PP	2A109542	2P110357	*
	1000-1 300-1800 AWS	4.50^/#-5"	2A109539PP	2A109543	2P110363	4P100235
	1300-1800-2000 CWS	5.50"-6"	2A109540PP	2A109544	2P110B59	4P106813
	GD-2000	6.50"-7.50ⁿ	2A109627PP	2A109621	2P110360	4P100281
	1000-1 300WS	4"-5.25ⁿ	2A109539PP	2A109621	2P110363	*
		5.50"-7.50^w	2A109540PP	2A109544	2P110359	*
Pinion	RB-5, RB-6		2A109539PP	2A109544	2P110363	*

Pump Mfr.	Pump Model	Plunger Size	Valve Part No.	Seat Part No.	Insert Part No.	Spring
SPM	TWS 250	1.75"-3”	2A109608PP	2A109605	2P110B55	4P101362
	TWS 250	3.25"-4"	2A109537PP	2A109541	2P110356	4P100198
	TWS 400	2 .50"-3"	2A109608PP	2A109605	2P110355	4P101362
	TWS 400	3 .50"-4 .50"	2A109537PP	2A109541	2P110356	4P100198
	TWS 500LW-600	2 .75"	2A109608PP	2A109605	2P110355	4P101362
	TWS 500LW-600	3"-4 .75"	2A109537PP	2A109541	2P110356	4P100198
	TWS 600S	2 .50"-3"	2A109608PP	2A109605	2P110355	4P101634
	TWS 600S	3.50"-4 .50"	2A109537PP	2A109541	2P110356	4P100198
	TWS 900	3.50"-4"	2A109538PP	2A109542	2P110357	4P100338
	TWS 1250LW	4ⁿ	PI05740	PI 05750	PI 05760	4P101860
	TWS 1300-1600-1800-2000-	4.50"-5"	2A10953卯 P	2A109543	2P110B63	4P100348
	2250; QWS 2000-2500LW		2A109539PP	2A109543	2P110363	4P100235
	TWS 1600LW; QWS 2000-	5.50"-6ⁿ	2A109540PP	2A109544	2P110359	4P100116
	2500LW
	QWS 2000-2500LW	6.50^H-7.50"	2A109627PP	2A109621	2P110360	4P10028
Western	RB-80, RB-81		PI05740	2A109543	2P110363	*
Western	RR500 Mono Block F,E.		2A109537PP	2A109541	2P110356	*
(Rough Rider)	RR1000 Mono Block F.E. VDV	4ⁿ	PI05740	P105750	PI 05760	4P102062
	Rough Rider (RR) 1500 VDV	4.50”-5”	2A109539PP	2A109543	2P110363	4P102062
	RR1000 MONOBLOCK HV	5^W	2A10953卯 P	2A109543	2P110363	P101860

Pump

Manufacturer

Pump

Model

Plunger

Size

Plunger Part No.

Pump

Manufacturer

Pump

Model

Plunger

Size

Plunger Part No.

CMW ( SPM)

1300

6.75" SHORT 6.75" STD.

2P102401 3P101432

SPM

OPI880

3.75"

4.00"

4.50"

5.00”

5.50"

5,75”

6.00"

3P104144

3P100772

3P100725

3P100366

3P107060

3P107061

3P107062

GARDNER DENVER (OPI)

OMEGA

1300 THRU 2000

4.00"

4.50,’

5.00”

5.75”

6,50,,

3P103963

3P103950

3P100233

3P108327

3P100258

OP_t OMEGA

500

2.75”

3.00"

3,50,’

4.00”

4.50”

5,00,,

3P107300

3P107301

3P107302

3P107303

3P107304

3P107305

TWS 1000 LW TWS 1 300

3.75”

4.00"

4.50"

5.00"

5.50"

5.75”

3P103887

3P100339

3P100654

3P100233

3P107060

3P107061

OILWELL

SA640

4.00"

2P102998

6.00"

6.50^w

6.75”

3,50”

3P107062

SPM

TWS 250

1.75”

2.00"

2.25”

3P104545

3P104546

3P104547

3P100258

3P101407

3P105202

2.50”

2.75”

3.00"

3.25”

3.50¹'

3.75”

4.00”

3P103501

3P103502

3P103503

3P103504

3P103505

3P103506

3P103507

TWS 1600

3.75"

4.00"

4.50"

5.00”

5.50"

5,75”

6.00”

3.75"

3P104144

3P100339

3P100725

3P100366 3P101423

3P101652

3P101424

3P103887

TWS 400

2.50”

3P101397

2.75"

3.00,’

3.50”

4.00"

4.50,’

3P101385

3P101384

3P100968 BP101334

3P100853

TWS 1800

4.00"

4.50"

5.00”

5.50"

5.75"

6.00"

6.50"

3.75"

3P100339

3P100654

3P100233

3P107060

3P107061

3P107062

3P100258

3P103887

TWS 600

2.50”

2.75”

3,00,’

3.50”

4.00”

4,50,’

3P104740 3P101733

3P100325

3P100293 3P100813 BP100181

TWS 2000

4.00"

4.50"

5.00"

3P100339

3P100654

3P100233

• Specify Standard

16〃 Length

• Specify Optional

TWS 600S

2.00”

2.50”

2,75”

3.00"

3.50”

4.00”

4.50"

2P106313

2P104716

2P104717

2P103345

2P103344

• Specify Standard

16〃 Length

• Specify Optional

18〃 Length

• Specify Optional

2V Length

5.50"

5.75"

6.00"

6.50"

3.75"

3P107060

3P107061

3P107062

3P100258

3P103887

18〃 Length • Specify Optional

21" Length

2P103313

2P103312

TWS2250

4.00"

4.50”

5.00”

5.50"

3P100339

3P100654

TWS 900

3.50^w

3P105202

3P100233 3P100136

Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Product tags

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Name: Well Service SPM SPM TWS600 plunger pump SPM QWS2250 plunger pump SPM TWS2500
Brand: SPM, Halliburton
Price: 1 USD

Ask Latest Price

Product Detail

Brand Name :

SPM, Halliburton

Model Number :

TWS2250, QWS2500, HT400, TWS600S

Certification :

API

Place of Origin :

CHINA

MOQ :

Price :

USD

Contact Supplier

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member

6 Years

shandong, qingdao

Since 2007

Business Type :

Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller

Main Products :

Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons

Total Annual :

1-5000000

Employee Number :

1~150

Certification Level :

Site Member

Discover similar products

SPM TWS600 plunger pump

Contact Now
Halliburton HT400 Valve and seat

Contact Now
SPM TWS2500 plunger pump

Contact Now
Well Service Packing, Plunger pump, Halliburton HT400 plunger pump, Gardner

Contact Now
SPM TWS-2250 pumps with plunger 4.5", TWS600S plunger pump, TWS2250 Plunger pump

Contact Now
TWS600 plunger pump, TWS2250 plunger pump, Well Service Pump Packing and Seals,

Contact Now
TWS600 plunger pump, TWS2250 plunger pump, Well Service Pump Packing and Seals,

Contact Now
TWS600 plunger pump, TWS2250 plunger pump, Spare parts for SPM TWS-600s pumps

Contact Now
Well Service Pump Packing and Seals, Halliburton HT400 plunger pump, TWS600

Contact Now
Well Service Pump Packing and Seals

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Well Service Pump Packing and Seals

MachineU China Products Tools & Hardware Hydraulic Tools Hydraulics Pumps

Plungers with most advanced coatings

We keep improving and developing the most advanced coating technologies which include widely used AMS 4775 alloy coating, Colmonoy coating, ceramic coating and tungsten carbide coating. Our tungsten carbide plunger runs twice as long as nickel alloy coated in field testing.

plunger pump manufacturer

hydraulic pumps 6358128

goulds pumps 3196

Well Service, SPM, SPM TWS600 plunger pump, SPM QWS2250 plunger pump, SPM TWS2500

Qingdao National Premium Oilwell Machinery Co.,Ltd

SPM TWS600 plunger pump

Halliburton HT400 Valve and seat

SPM TWS2500 plunger pump

Well Service Packing, Plunger pump, Halliburton HT400 plunger pump, Gardner

SPM TWS-2250 pumps with plunger 4.5", TWS600S plunger pump, TWS2250 Plunger pump

TWS600 plunger pump, TWS2250 plunger pump, Well Service Pump Packing and Seals,

TWS600 plunger pump, TWS2250 plunger pump, Well Service Pump Packing and Seals,

TWS600 plunger pump, TWS2250 plunger pump, Spare parts for SPM TWS-600s pumps

Well Service Pump Packing and Seals, Halliburton HT400 plunger pump, TWS600

Well Service Pump Packing and Seals

Find Similar Products By Category:
