Baoji Oilfield Machinery Co., Ltd. (BOMCO) is a leading research & development manufacturing enterprise, affiliated to China National Petroleum Corporation (CNPC), for oil drilling and production equipments, land drilling rigs, F-series mud pumps, multi-purpose wirelines and drilling rig power control system.
The principal products of BOMCO also include F-series mud pump ranging from 500 HP to 3,000HP, well control and well head equipments, special vehicles, steep pipe, wireline, large size roller bit, power control system, and non-conventional oil and gas equipments.
| Description | F500 | F800 | F1000 | F1300/1600 | F1600HL | F2200HL |
| Liner of Crosshead Upper | AH0501010402 | AH0801010402 | AH1001010402 | AH1301010402 | AH1301010402 | AH2202010402 |
| Liner of Crosshead Lower | | AH0801010408 | AH1001010409 | AH1301010412 | AH1301010412 | AH2202010403 |
| Pin of Crosshead | AH0501010404 | AH0801010407 | AH1001010408 | AH1301010410 | AH1301010410 | AH2202010410 |
| Extension Rod | AH0501010410 | AH0801010406 | AH1001010407 | AH1301010409 | AH1301010409 | AH2202010409 |
| Sub Rod | | | | | | |
| Crosshead | AH0501010401 | AH0801010401 | AH1001010401 | AH1301010401 | AH1301010401 | AH2202010401 |

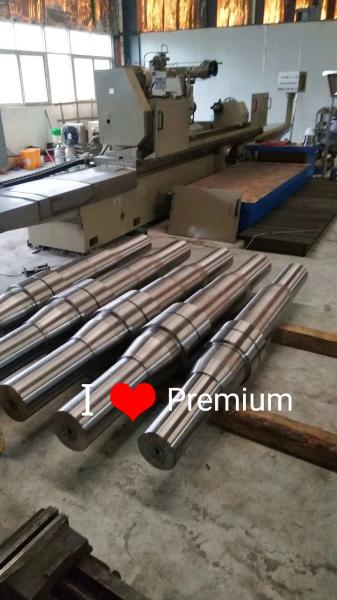

| Pinion Shaft | AH0501010302 | AH0801010302 | AH1001010302 | AH1601010201 | AH1601010201 | |
| Wear Ring of Pinion shaft | AH0501010303 | AH0801010303 | AH1001010303 | AH1301010303 | AH1301010303 | AH2202010306 |
| Carrier, Bearing Left | AH0501010212 | AH0801010213 | AH1001010212 | AH1601010105 | AH1601010105 | AH2202010212 |
| Carrier, Bearing Right | AH0501010202 | AH0801010202 | AH1001010202 | AH1601010101 | AH1601010101 | AH2202010202 |
| Connecting Rod | AH0501010206 | AH0801010206 | AH1001010206 | AH1601010103 | AH1601010103 | AH2202010206 |

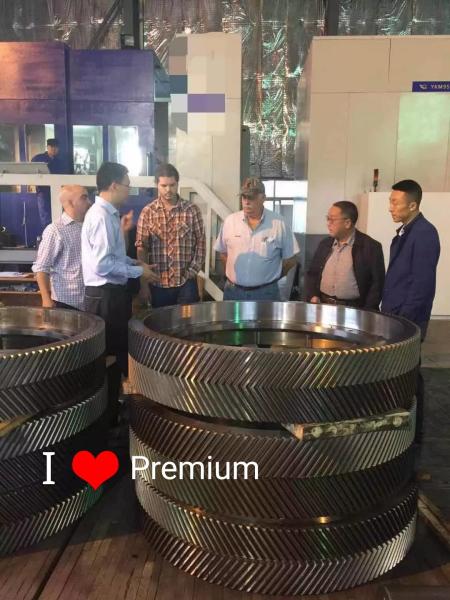

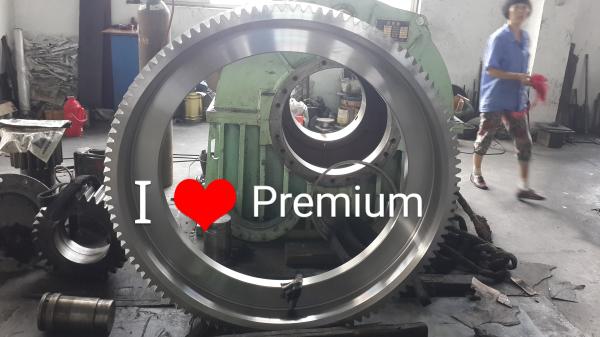

| Bull Gear | AH0501010210 | AH0801010210 | AH1001010219 | AH160101010400 | AH160101010400 | AH220201021000 |
| Bolt, Main Bearing | AH051020207 | AH0801020206 | AH1001010215 | AH1301010215 | AH1301010215 | AH2202010215 |
| Bearing, Crosshead | 5G354920Q | 4G254735Q | 5G254936Q | AH1301010414 | AH1301010414 | |
| Bearing, Pinion Shanft | 4G32828H | 4G32836H | 4G32840H | AH1301010312 | AH1301010312 | AH2202010315 |
| Bearing, Eccentric | 92984QU | 928/508QU | 929/558.8QU | AH160101010700 | AH160101010700 | AH2202010217 |
| Bearing, Main | 3053738U | 3053748H | 4053156H | AH160101010800 | AH160101010800 | AH2202010218 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
SOUTHWEST 8477-A
Gardner Denver PZ-11/PZ-10
| ITEM | P/N | DESCRIPTION | QTY |
| | 8477A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,17,18,19,20, 21, 22, 23, 24, 25, 26, 27, 28, 29,31,32,33, 34, 35,38,39) | |
| 1 | 1377YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2975 | LINER SEAL | 3 |
| 3 | 8477-3 | WEARPLATE | 3 |
| 4 | 2930-08 | WEARPLATE GASKET | 3 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6279-1 | SUB ROD (CLAMP TYPE) | 3 |
| 10A | 6280-1 | SUB ROD (SCREW TYPE) | 3 |
| 11 | 1277CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | DUAL SPRAY PIPE | 3 |
| 11C | 4018-96 | ROD CLAMP BOLT (5/8” X 5-1/2” GRADE 8 BOLT W/ LOCK NUT AND WASHER) | 6 |
| 12 | 1200G77 | PONY ROD (CLAMP TYPE) | 3 |
| 12A | 1200G88 | PONY ROD (SCREW TYPE) | 3 |
| 13 | | VALVE | 6 |
| 14 | | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | | VALVE SPRING | 6 |
| 16 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS) | |
| | 4475-1A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEMS 17-24) | |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-1A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (P129U URETHANE AVAILABLE) | 6 |
| 21 | 4775R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (4700IU URETHANE AVAILABLE) | 6 |
| 23 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1-1/4”-7” HEAVY HEX NUT) | 72 |
| 25 | 4018-35 | POWER END STUD (WITH SW PART# HHN1250-7 1-1/4” – 7 HEAVY HEX HUT) | 24 |
| 26 | 4018-34 | LINER RETAINER FERRY HEAD CAP SCREW (WITH SW PART# HHN1250-7 1-1/4” – 7 HEAVY HEX NUTS) | 24 |
| 27 | 6477 | LINER RETAINER FLANGE | 3 |
| 28 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2” – 8 HEAVY HEX NUT) | 18 |
| 29 | 4017-77 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8577 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8477-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8477-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 2988 | MODULE SEAL | 3 |
SOUTHWEST “NEW STYLE” 8476-4A
National 12-P-160
| ITEM | P/N | DESCRIPTION | QTY. |
| | 8476-4A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47) | |
| 1 | 1376YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | DUAL SPRAY PIPE | 3 |
| 10C | 4020-29 | ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | |
| | 4476-6A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) | 6 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4676-6A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) | 30 |
| 25 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 26 | 6476 | LINER RETAINER FLANGE | 3 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4018-17 | SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-6S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8476-5D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| | | ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY | |
| 47 | 4018-18 | DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) | 16 |
| 48 | 4018-39 | DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW | 16 |
| 49 | 8376-1 | DISCHARGE CONNECTOR | 2 |
| 50 | 8376-2 | DISCHARGE ADAPTER | 2 |
| 51 | 8376-3 | BACK-UP RING | 4 |
| 52 | 8376-4 | DISCHARGE SPACER FLANGE | 2 |
| 53 | 2976-3 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 54 | 2976-1 | DISCHARGE CONNECTOR / ADAPTER PACKING | 2 |
| 55 | 2976-2 | DISCHARGE CONNECTOR / ADAPTER PACKING | 4 |
| 56 | R44D | RING JOINT GASKET | 2 |
| 57 | 4017-22 | DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) | 16 |
| 58 | 5000-5BFLANGE | BLIND FLANGE 5" | 1 |
| 59 | 9070012 | PONY ROD SEAL | 12 |
| 60 | 80491292 | SPLASH GUARD | 3 |
| 61 | 8376-50A | COMPLETE STRAINER CROSS | 1 |
| 62 | 8376-50 | STUDDED STRAINER CROSS ONLY | 1 |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| | 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
| | | | |
| | 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | |
| | |
| | | | |
| | | | |
| SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING |
| PISTONS LINERS | LINER SEALS |
| SIZE | FAIL-SAFE | DUAL-DURO® | BLACK CAT | GRAYLOY® | ZIRCONIA | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 76BBC | 1376G06 | | 2930-06 | 2930-06U |
| 4 1/4" | 77BFS | 77BDD | 77BBC | 1376G07 | | 2930-07 | 2930-07U |
| 4 1/2" | 78BFS | 78BDD | 78BBC | 1376G08 | 1376ZIR08 | 2930-08 | 2930-08U |
| 4 3/4" | 79BFS | 79BDD | 79BBC | 1376G09 | 1376ZIR09 | 2930-09 | 2930-09U |
| 5" | 81BFS | 81BDD | 81BBC | 1376G1 | 1376ZIR1 | 2930-1 | 2930-1U |
| 5 1/4" | 82BFS | 82BDD | 82BBC | 1376G2 | | 2930-2 | 2930-2U |
| 5 1/2" | 83BFS | 83BDD | 83BBC | 1376G3 | 1376ZIR3 | 2930-3 | 2930-3U |
| 5 3/4" | 84BFS | 84BDD | 84BBC | 1376G4 | 1376ZIR4 | 2930-4 | 2930-4U |
| 6" | 85BFS | 85BDD | 85BBC | 1376G5 | 1376ZIR5 | 2930-5 | 2930-5U |
| 6 1/4" | 86BFS | 86BDD | 86BBC | 1376G6 | 1376ZIR6 | 2930-6 | 2930-6U |
| 6 1/2" | 87BFS | 87BDD | 87BBC | 1376G7 | 1376ZIR7 | 2930-7 | 2930-7U |
| 6 3/4" | 88BFS | 88BDD | 88BBC | 1376G8 | | 2930-8 | 2930-8U |
| 7" | 89BFS | 89BDD | 89BBC | 1376G9 | 1376ZIR9 | 2930-9 | 2930-9U |
| 7 1/4" | 91BFS | 91BDD | 91BBC | 1376G10 | 1376ZIR10 | 2974-11 | 2974-11U |
| 7 1/2" | 92BFS | 92BDD | 92BBC | 1376G11 | | 2974-11 | 2974-11U |
| | | | | | | | |
| | | | | | | | |
| |
| NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC. |
| VALVES & SEATS (BOMCO F-1600) |
| TYPE | VALVE | INSERT | SPRING | STAINLESS SPRING | SEAT | PULLER HEAD | PULLER HEAD STYLE |
| SOUTHWEST (Full Open) | 773-1B | N/A | SW5710-110L | N/A | 873-1 | SWTM3750 | SPLIT JAW |
| FULL OPEN-ROUGHNECK (Cast N Place Insert) | SWND-6V2 | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (High Temp) | SWND-6V2H | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert) | SWND-6V1 | SWND-6I | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| 3 WEB DOUBLE ANGLE O-RING | SWR0500119 | SWR0515845 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D | 3 J HOOK |
| 3 WEB (High Temp) | SWR0520586 | SWR0520585 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D |
| 3 WEB STANDARD PLATE | SWR0505038 | SWR0504890 | SWR0515575 | SWR0514790 | SWR0512436 | SWTM3-7D |
| 4 WEB | SWU5B-EH | SWUDD-6AB | SW5710-115 | N/A | SW6ADD-B4 | SWTM4-6 | 4 J HOOK |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| | 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
| | | | |
| | 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | |
| | |
| | | | |
| | | | |
| SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING |
| PISTONS LINERS | LINER SEALS |
| SIZE | FAIL-SAFE | DUAL-DURO® | BLACK CAT | GRAYLOY® | ZIRCONIA | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 76BBC | 1376G06 | | 2930-06 | 2930-06U |
| 4 1/4" | 77BFS | 77BDD | 77BBC | 1376G07 | | 2930-07 | 2930-07U |
| 4 1/2" | 78BFS | 78BDD | 78BBC | 1376G08 | 1376ZIR08 | 2930-08 | 2930-08U |
| 4 3/4" | 79BFS | 79BDD | 79BBC | 1376G09 | 1376ZIR09 | 2930-09 | 2930-09U |
| 5" | 81BFS | 81BDD | 81BBC | 1376G1 | 1376ZIR1 | 2930-1 | 2930-1U |
| 5 1/4" | 82BFS | 82BDD | 82BBC | 1376G2 | | 2930-2 | 2930-2U |
| 5 1/2" | 83BFS | 83BDD | 83BBC | 1376G3 | 1376ZIR3 | 2930-3 | 2930-3U |
| 5 3/4" | 84BFS | 84BDD | 84BBC | 1376G4 | 1376ZIR4 | 2930-4 | 2930-4U |
| 6" | 85BFS | 85BDD | 85BBC | 1376G5 | 1376ZIR5 | 2930-5 | 2930-5U |
| 6 1/4" | 86BFS | 86BDD | 86BBC | 1376G6 | 1376ZIR6 | 2930-6 | 2930-6U |
| 6 1/2" | 87BFS | 87BDD | 87BBC | 1376G7 | 1376ZIR7 | 2930-7 | 2930-7U |
| 6 3/4" | 88BFS | 88BDD | 88BBC | 1376G8 | | 2930-8 | 2930-8U |
| 7" | 89BFS | 89BDD | 89BBC | 1376G9 | 1376ZIR9 | 2930-9 | 2930-9U |
| 7 1/4" | 91BFS | 91BDD | 91BBC | 1376G10 | 1376ZIR10 | 2974-11 | 2974-11U |
| 7 1/2" | 92BFS | 92BDD | 92BBC | 1376G11 | | 2974-11 | 2974-11U |
| | | | | | | | |
| | | | | | | | |
| |
| NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC. |
| VALVES & SEATS (BOMCO F-1600) |
| TYPE | VALVE | INSERT | SPRING | STAINLESS SPRING | SEAT | PULLER HEAD | PULLER HEAD STYLE |
| SOUTHWEST (Full Open) | 773-1B | N/A | SW5710-110L | N/A | 873-1 | SWTM3750 | SPLIT JAW |
| FULL OPEN-ROUGHNECK (Cast N Place Insert) | SWND-6V2 | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (High Temp) | SWND-6V2H | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert) | SWND-6V1 | SWND-6I | SW5710-115 | N/A | SWND-6S4 | SWTM27SXN SWND-6PH | SPLIT JAW PANCAKE |
| 3 WEB DOUBLE ANGLE O-RING | SWR0500119 | SWR0515845 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D | 3 J HOOK |
| 3 WEB (High Temp) | SWR0520586 | SWR0520585 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D |
| 3 WEB STANDARD PLATE | SWR0505038 | SWR0504890 | SWR0515575 | SWR0514790 | SWR0512436 | SWTM3-7D |
| 4 WEB | SWU5B-EH | SWUDD-6AB | SW5710-115 | N/A | SW6ADD-B4 | SWTM4-6 | 4 J HOOK |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | | FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) | 3 |
| 1 | 8476-6S | FEM12PSUCSWNS | SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) | 3 |
| 2 | 8476-5D | FEM12PDISSWNS | DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-6A | 12PVGASWNS | PLUG (INCLUDES ITEMS 15, 19, 20, & 21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-119 | 07207119 | VALVE COVER PLUG SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 80852292 | 1292258 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 29 | 4018-18 | 700030711 | DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) | 16 |
| 30 | 8376-3 | 1292175 | BACKUP RING-(DISCHARGE CONNECTOR) | 4 |
| 31 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3 | 16 |
SOUTHWEST 8490-2A FLUID END FOR
EMSCO FB1300/1600
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 PSI | FB1300/1600 | 7-1/2” X 12” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| | 8490-2A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) | 3 |
| 1 | 6390YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) | 3 |
| 2 | AJO428S | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) | 3 |
| 3 | 8490-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (2988U Also available in urethane) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286-CWYFP14 | PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4020-29 | BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | | VALVE | 6 |
| 14 | | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | | VALVE SPRING | 6 |
| 16 | | SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.) | |
| | 4475-2A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) | 6 |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-2A | PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (P129U Also available in urethane) | 6 |
| 21 | 4775-2R | VALVE GUIDE (complete with bushing #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING | 6 |
| 23 | 4016-99 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) | 72 |
| 25 | 4016-9 | POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) | 18 |
| 27 | 6490-3 | LINER RETAINER FLANGE | 3 |
| 28 | 8422-3 | LINER RETAINER PILOT RING | 3 |
| 29 | 6590-1 | LINER RETAINER NUT | 3 |
| 30 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 33 | 568-442 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8490-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 35 | 8490-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8390-50 | DISCHARGE MANIFOLD | 1 |
| 38 | 568-343 | DISCHARGE MANIFOLD SEAL | 3 |
| 39 | 4017-46 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) | 12 |
| 40 | ESN500 | ELASTIC STOP NUT | 12 |
| 41 | LW875 | LOCKWASHER 7/8 | 36 |
| 42 | 9070004 | SINGLE LIP PONY ROD SEAL | 3 |
| 43 | 9070005 | DOUBLE LIP PONY ROD SEAL | 3 |
| 44 | 9060012 | SPLASH GUARD | |
| | 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | |
| | 6278-74 | PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY | |
| | | THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER | |
| 45 | 1388XX | LINER | 3 |
| 46 | 2974XX | LINER SEAL | 3 |
| 47 | 8490-20 | LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL | 3 |
| 48 | 8488-7 | SET SCREW | 12 |
| 49 | 6588-22-2 | LINER NUT | 3 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
