Premium is a manufacturer and supplier of high-quality, high-performance hydraulic fracturing pump parts. What sets us apart from the competition is that our attention to detail extends to the service we provide our customers after the sale. We stand behind our premium steel products, and go the extra mile to make sure our customers are completely satisfied.

We understand that downtime can be costly, so we stock replacement parts for all manufactured pumps for those parts that are designed to wear-out. Our turnaround times for manufacturing new parts are also among the best in the industry.

Passion for innovation is part of what makes Premium such a dynamic place to work. However, our excitement is not limited to our own ideas. Bring us yours! We’re constantly partnering with our customers on their ideas, prototypes and customizations. If you can dream it, we can build it.

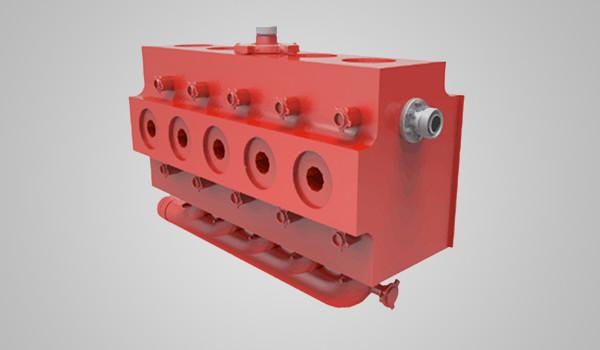

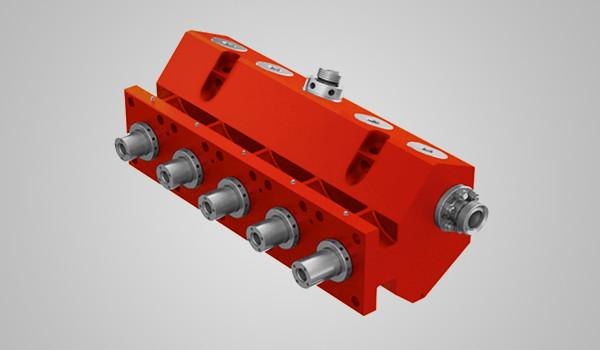

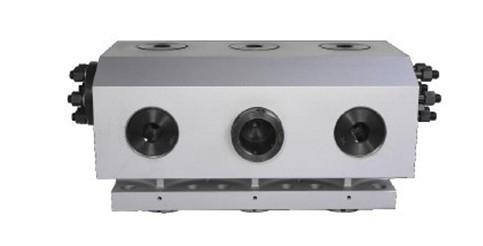

Fluid Ends

Premium provides durable, high quality fluid ends that compete with the best in the oil and gas industry. We offer OEM as well as other alternatives that have been engineered to outperform and last longer than the current market standard.

Speciality

● Able to work under conditions with grits, water, acid material, carbon dioxide, diverting fracture and well cementing.

● Able to satisfy the conditions under foreign fracture and fluid end requirements. Able to customize types for clients.

● The entirely forged fluid end block have characteristic with high pressure resistance, washing-out resistance and corrosion resistance.

Material Performance: SAE 4330V, 4330M, 30CrNi3.5MoV alloy steel and 17-4PH, 15-5PH stainless steel for option

Advantage: Fluid end made by integral forging, with high pressure resistance, anti-scouring and corrosion resistance performance

Max. Pressure:105.5MPa

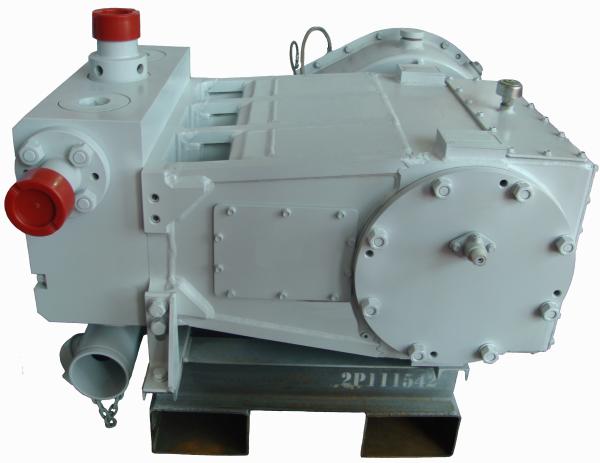

The TWS 600S is a versatile pump featuring a patented design, which can be utilized in a back-to-back configuration.

A patented feature unique to the TWS 600S pump is it’s offset crankshaft / crosshead design which substantially reduces the load on both the crosshead and crosshead guides, as well as the main roller bearings supporting the crankshaft.

With this patented offset, the pump develops a lower connecting rod angle on the power stroke. The result is reduced wear between the crosshead and the guide, increasing product life.

The TWS 600S can be utilized in acidizing, cementing, gravel packing and snubbing operations.

TWS 600S Performance Specs
Max Brake Horsepower :600 BHP (447 Kw) Approx. Length:50.25 Inches (1,276 mm)
Max Rod Load Capacity:100,000 lb (43,360 kg) Approx. Width: 52.93 Inches (1,344 mm)
Stroke Length:6 Inches(152.4 mm) Approx. Height:23.88 Inches(607 mm)
Gear Ratio: 4.61 : 1 Approx. Weight (Dry): 4 , 9 40 lb (2,240 kg)

TWS 600S Back-to-Back Layout

TWS 600S Performance Data

1 .Based on 90% ME and 100% VE - Intermittent Service Only.
2 .For applications demanding pressures over 15,000 psi, contact SPM Engineering.

TWS 600S Hydraulic Horsepower Curve

Note: This chart shows this pump’s performance at max hydraulic horsepower. Notice as the plunger size for the pump increases, a greater max flow rate is achieved while the max pressure decreases.

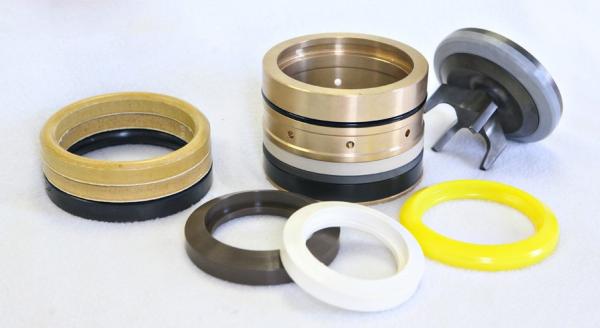

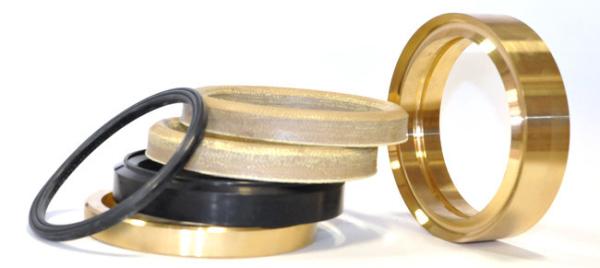

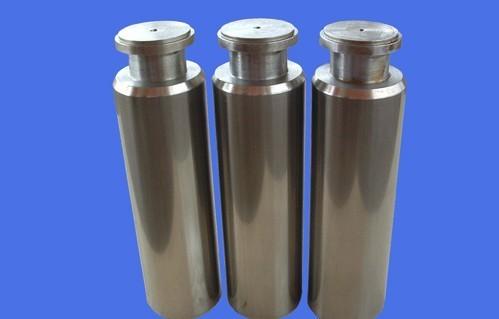

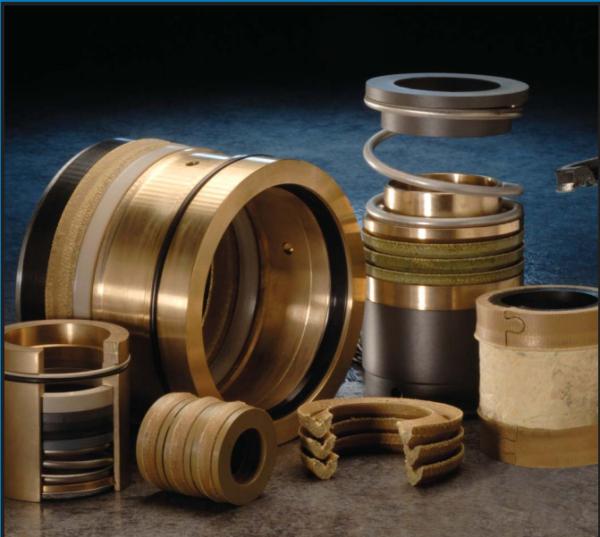

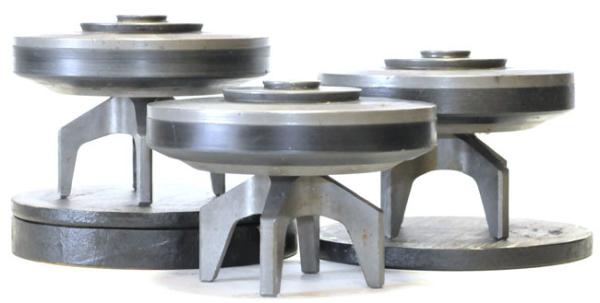

Spare parts for SPM TWS-600s pumps with plunger diameter of 4,5"

Spare parts for SPM TWS-2250 pumps with plunger 4.5"
