Specifications
Brand Name :
OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Model Number :
A1700PT
Certification :
API
Place of Origin :
China
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3000 per month
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
diesel
Pressure :
High Pressure,Low Pressure
Application :
Conveying mud and flushing fluids,mining,oil,Chemical
Structure :
Piston Pump
Fuel :
Diesel,Electric
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
blue,red and so on
Material :
Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
can be accept
Condition :
new
Description

www.premiumrigparts.com

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”

ITEM P/N DESCRIPTION QTY. REQ’D
8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)

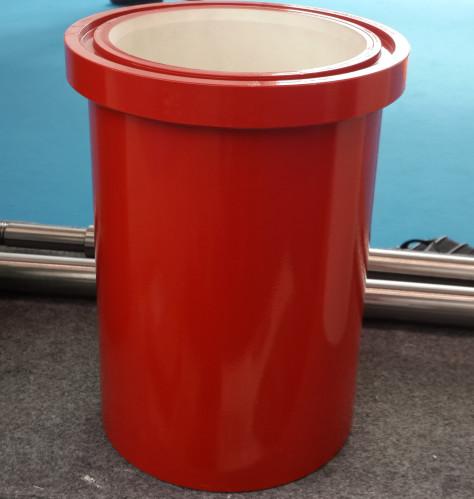

1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

MISSION "L" MODULE FOR NATIONAL12-P-160 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
8476-A FEM12PASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-2S FEM12PSUCSW MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-1D FEM12PDISSW MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4 PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6 8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14 12P160TRSN NUT, THREADED RING STUD 72
15 4676-2A 12PVCSW PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-107 07207107 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGSWNS GUIDE, VALVE (INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 16
07924540 KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) 3

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

MISSION "L" FOR OILWELL A & HD STYLE PUMPS (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
80702030 FLUID END ASSEMBLY COMPLETE (INCLUDES ITEMS 1-12,17,18,21-35) ENOUGH FOR 1 PUMP 1
1 80702000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,22,23,25,33,34,& 35) 3
2 80702001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,22,23,&19) 3
3 80702002 STUD, (DISCHARGE TO SUCTION MODULE) 24
4 76510327 NUT, HEAVY HEX 24
5 80702003 THREADED RING 6
6 80702004 THREADED CAP 6
7 80702005 VALVE COVER (INCLUDES 11,12,& 17) 6
8 80702006 MANIFOLD, DISCHARGE (7500 PSI WORKING PRESSURE) 1
9 IDT800DMS STUD, DISCHARGE MANIFOLD 12
10 IDT800TRSN NUT,HEX HEAVY 12
11 80702007 BUSHING, VALVE GUIDE 6
12 80702008 GUIDE, VALVE 6
13 9700359 VALVE COMPLETE (COMPLETE WITH INSERT # 15) 6
14 055413371 SPRING, VALVE 6
15 PFO6IWL INSERT, VALVE (WHITE LIGHTNING) 6
16 9702547 SEAT, VALVE 6
17 PEP73 CAPSCREW,VALVE GUIDE 12
18 OWA17LLNSW NUT, LINER LOCK 3
19 07326XXX LINER, CERAMIC 3
20 1502XXX PISTON, GREEN DUO 3
21 PP602850 WEARPLATE 3
22 PZ789LCSN NUT,HEAVY HEX FOR THREADED RING STUD 72
23 80702009 STUD, THREADED RING 72
24 OWA17LRPLATESW PLATE, LINER RETAINER 3
25 PEP70 PIN, DOWELL 6
26 80702010 SEAL, DISCHARGE TO SUCTION MODULE 3
27 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
28 07916742 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
29 75634382 CAPSCREW, SUCTION MANIFOLD 24
30 99609235 SEAL, DISCHARGE MANIFOLD TO MODULE 3
31 10300201 GASKET, SUCTION MANIFOLD TO SUCTION MODULE 3
32 PEP90 SETSCREW, LINER LOCK NUT 3
33 OWA17PFFSW STUD, POWER FRAME 12
34 PEP55 NUT, POWER FRAME STUD 12
35 PEP68 CAPSCREW, SOCKET HEAD FOR LINER RETAINER PLATE 24
36 REF GASKET, LINER 3

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

MISSION "L" MODULE FOR NATIONAL 14-P-220 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (REQUIRES DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
80700031 FLUID END ASSEMBLY 14P220 (7500 PSI) 1
1 80700012 DISCHARGE MODULE STUDDED (INCL ITEMS 2-10) 3
2 80700000 MODULE,DISCHARGE- 14-P-220 7500PSI 3
3 80700014 STUD, 1-1/2-6 X12 TAPER LOK TOP 84
4 2408027 STUD,1-1/2 X 7-7/8 TOP TAPER LOK 30
5 2408047 STUD,1-1/4 X 7 TOP TAPER LOK 18
6 80700015 STUD, 2 X 26-1/2 DISCHARGE/SUCTION 24
7 6300200 NUT,HEX HEAVY 1-1/4-7UNC 18
8 6300240 NUT, HEX HEAVY 1-1/2-6UNC 2H 126
9 6300320 NUT,HEX HEAVY 2" 8UN-2A 24
10 80700016 NUT,HEX HEAVY 2" 8UN-2A 12
11 80700013 SUCTION MODULE STUDDED (INCL ITEMS 12,3,8) 3
12 80700001 SUCTION MODULE 3
13 80700002 DISCHARGE MANIFOLD 1
14 1295317 SUCTION MANIFOLD 1
15 700048511 SCREW,HEX HD CAP 7/8 X 3 24
16 1540021 SEAL,SUCTION 3
17 80700003 VALVE COVER 6
18 80700004 THREADED RING 6
19 80700005 THREADED CAP 6
20 88500223 WEAR PLATE OUTER 3
21 88500222 WEAR PLATE , GREASE 3
22 80700006 SHIM PACK 3
23 700039511 SCREW,HEX HD CAP 5/8 X 1-1/2 18
24 9700369 VALVE , WHITE LIGHTNING SERIES 8 6
25 9702653 SEAT , HD8-S07 6
26 9700372 INSERT,VALVE WL #8 series (INCLUDED IN ITEM 24) 6
27 55413256 SPRING, 5710-101 6
31 80700011 GUIDE,VALVE-DISCHARGE 3
32 80700010 GUIDE,VALVE -SUCTION 3
33 PZ789VGI INSERT,VALVE GUIDE 6
34 2405086 SCREW,DR HD HEX HD CAP 1/2 X 1-1/2 24
35 6511416 PIN, DOWELL STD HDN & GRD 7/8 3
36 1295266 PLATE,WEAR 14-P-220 3
37 07207109 GASKET, PLUG SEAL L STYLE - RUBBER (SEE DATASHEET FOR ALTERNATE MATLS) 6
38 1295257 SEAL,SUCTION MODULE 14-P-220 6
39 99607344 SEAL,DISCHARGE MANIFOLD 3

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION

MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD)
ITEM # MISSION PART # DESCRIPTION
80704032 FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP 1
1 80704000 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) 3
2 80704001 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) 3
3 80704002 STUD, (DISCHARGE TO SUCTION MODULE) 24
4 PEP55 NUT, HEAVY HEX 24
5 80704003 THREADED RING 6
6 80704004 THREADED CAP 6
7 80704005 VALVE COVER (INCLUDES 11,12,& 17) 6
8 80704006 DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) 1
9 80702011 STUD, DISCHARGE MANIFOLD 12
10 IDT800TRSN NUT,HEX HEAVY 12
11 PZ789VGI BUSHING, VALVE GUIDE 6
12 12PVGASW GUIDE, VALVE 6
13 8P80TRSN NUT, POWER FRAME STUD 30
14 PEP75 CAPSCREW, LINER RETAINER 18
15 12PLASW RETAINER, LINER FLANGE 3
16 12PLANSW NUT, LINER RETAINER 3
17 7007303 SCREW, VALVE GUIDE 12
18 6300240 NUT, HEAVY HEX FOR THREADED RING 72
19 80700014 STUD, THREADED RING 72
20 PEP70 PIN, DOWELL 6
21 1290344 SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
22 07207129 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
23 99609235 SEAL, DISCHARGE MANIFOLD 3
24 1540851 SEAL, SUCTION MANIFOLD 3
25 700048511 CAPSCREW, SUCTION MANIFOLD 3
26 PP6021260SW WEARPLATE 3
27 NAT12P160PFS STUD, POWER FRAME 30

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION


SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION


MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) 3
1 8476-6S FEM12PSUCSWNS MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) 3
2 8476-5D FEM12PDISSWNS MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4 PEP55 NUT, DISCHARGE TO SUCTION STUD 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6 8P80TRSN NUT, POWER END STUD 30
7 8488-5 PEP70 PIN, DOWELL 6
8 4017-65 PEP75 CAPSCREW,LINER RETAINER SOCKET HEAD 18
9 8476-3 PP6021260SW PLATE, LINER WEAR 3
10 2988 1290344 GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
11 6476 12PLASW FLANGE, LINER RETAINER (LINER BUSHING) 3
12 6576 12PLANSW NUT, LINER RETAINER 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14 12P160TRSN NUT, THREADED RING STUD 72
15 4676-6A 12PVCASSYSWNS PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) 6
16 4476 12PFLGSW RING, THREADED (THREADED FLANGE) 6
17 4597 12PCAPSW CAP, THREADED (SCREW GLAND) 6
18 P-119 07207119 SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
19 4776R 12PVGASWNS ASSEMBLY, VALVE GUIDE(INCLUDES ITEMS 19,& 20) 6
20 4700-I PZ789VGI BUSHING, VALVE GUIDE 6
21 4016-98 PEP73 SCREW, VALVE GUIDE 12
22 4018-19 700048511 CAPSCREW, SUCTION MANIFOLD 24
23 AJO-419R 1540851 GASKET, SUCTION MANIFOLD 3
24 8376-2 NAT12PDSMA ADAPTER, DISCHARGE 2
25 2976-2 2410031437 SEAL, DISCHARGE ADAPTER 4
26 8376-1 NAT12PDSMC CONNECTOR, DISCHARGE 2
27 2976-1 2410031433 SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER 2
28 4018-18 700030711 CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) 16
29 8376-3 1292175 RING, BACKUP (DISCHARGE CONNECTOR) 4
30 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3" 16
07924542 KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE GASKET) 3
Product tags

hydraulic pump cw6180b

,

hydraulic pump type ld25

,

alibaba 130cc hydraulic pumps
Send your message to this supplier
Send Now

SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION "L" MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON

Ask Latest Price
Product Detail
Brand Name :
OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Model Number :
A1700PT
Certification :
API
Place of Origin :
China
MOQ :
1 piece
Price :
1 to 500 usd
Contact Supplier
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON
SOUTHWEST NATIONAL 12P-160 MUD PUMP FLUID END 7500 PSI, MISSION L MODULE FOR NATIONAL12-P-160 MUD PUMP LINER, PISTON

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member
6 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Mud Pump Zirconia Liners
MachineU China Products Construction & Real Estate Earthwork Products Other Earthwork Products
Contact Supplier
Submit Requirement
