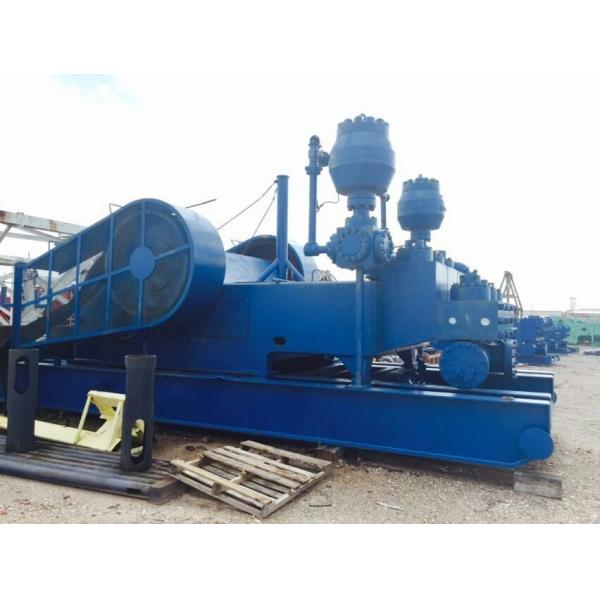

Premium can produce the spare parts of Eweco E600 MUD PUMP , E800 MUD PUMP, E-447 MUD PUMP, E-800 W/ G.D. PZ9 FE MUD PUMP, E-1300 MUD PUMP, E-1600 MUD PUMP, E-2200 MUD PUMP.
| EWECO | | | E-2200 (TRIPLEX) | | | 9 x 14 |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | BLUE LIGHTNING | GREEN DUO | WHITE LIGHTNING | SUPREME | WHITE LIGHTNING | SUPREME |
| 4 1/2" | | | | | | | | | | |
| 4 3/4" | | | | | | | | | | |
| 5" | | | | | MB50-15 | 1502056 | 12180254 | 12180253 | 15180186 | 15180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | | | | | MB54-15 | 1502058 | 12180338 | 12180337 | 15180228 | 15180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | | | | | MB60-15 | 1502060 | 12180395 | 12180394 | 15180269 | 15180268 |
| 6 1/4" | | | | | | 1502061 | | 12180493 | 15180285 | 15180284 |
| 6 1/2" | | | | | MB64-15 | 1502062 | 12180536 | 12180535 | 15180301 | 15180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | | | | MB70-15 | 1502064 | 12180619 | 12180618 | 15180343 | 15180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | 1502066 | 12180685 | 12180683 | 15180369 | 15180367 |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | 1502068 | | 12180725 | | 15105828 |
| * For HP style liner, add "HP" to end of part no. | | For Bonded White Lightning Pistons add "XT" to Green Duo Part # |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| Series 7 | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | OEM URETHANE | L STYLE | L STYLE URETHANE | L STYLE W.L. |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 60155042 | | Valve Cover | | | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 60155041 | | Wear Plate | | | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 60155033 | | Liner Retention Systems | OEM | MISSION L |
| SEAT | 9702539 | 9702539 | 61102505 | | Blak-JAK LOK-CEL | | |
| SPRING | 8201684 | 8201684 | 55413421 | | Blak-JAK Hydra-Cell | | |
| SPRING-Stainless | | | 55402945 | | Hydra-LOK | | |
| INSERT-Urethane | 9705228 | PFO7I | 62400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 62400239 | | Complete Assembly | | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | M 1060 | Suction Module Studded | | |
| Puller Head | 8401985 | 8401985 | 181235300 | M 1098 | One Piece OEM Style Studded | | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Rod Nut | Piston Rod | Sub Rod | Pony Rod Baffle | Piston Rod Clamp | Covered Rod Nut | Pony Rod Seal |
| | | | | | | | | | CRN-1 | |
| Weatherford E447 & E2200 FLUID END MODULE & ACCESSORIES |
| ITEM # | OEM PART # | | Remark | MISSION PART # | QTY PER PUMP |
| | | | | | |
| 1 | 01806132 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 8" | 3 |
| 2 | 01806130 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 7.5" | 3 |
| 3 | 01806128 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 7" | 3 |
| 4 | 01806126 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 6.5" | 3 |
| 5 | 01806124 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 6" | 3 |
| 6 | 01806122 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 5.5" | 3 |
| 7 | 01806120 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 5" | 3 |
| 8 | 01806119 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 4.75" | 3 |
| 9 | 01806118 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 4.5" | 3 |
| 10 | 01806117 | | Weatherford OEM Drawing | HY-CHROME LINER 4.25" | |
| 11 | 01806117 | E-2200 | Weatherford OEM Drawing | HY-CHROME LINER 4" | 3 |
| 12 | 1368296 | E-2200 | Weatherford OEM Drawing | Liner, 5" Zirconia | 3 |
| 13 | 1290011 | E-2200 | Weatherford OEM Drawing | Liner, 5-1/2" Zirconia | 3 |
| 14 | 1368316 | E-2200 | Weatherford OEM Drawing | Liner, 6" Zirconia | 3 |
| 15 | 1850022 | E-2200 | Weatherford OEM Drawing | Liner, 6-1/2" Zirconia | 3 |
| 16 | 1290001 | E-2200 | Weatherford OEM Drawing | 3 |
| 17 | 1372252 | E-2200 | Weatherford OEM Drawing | Liner, 7" Zirconia | 3 |
| 18 | 01249257 | E-2200 | Weatherford OEM Drawing | Nut, lock, liner retainer | 3 |
| 19 | 01249234 | E-2200 | Weatherford OEM Drawing | Guide, Valve | 3 |
| 20 | 01249253 | E-2200 | Weatherford OEM Drawing | Flange, liner retainer | 3 |
| 21 | 01249262 | E-2200 | Weatherford OEM Drawing | Moudle, Suction | 3 |
| 22 | 01249263 | E-2200 | Weatherford OEM Drawing | Module, discharge | 3 |
| 23 | 01231173 | E-2200 | Weatherford OEM Drawing | CRANKSHAFT | 1 |
| 24 | 01231087 | E-2200 | Weatherford OEM Drawing | GUIDE, CROSSHEAD RAW | 3 |
| 25 | 01231091 | E-2200 | Weatherford OEM Drawing | PIN, WRIST, CROSSHEAD | 3 |
| 26 | 01231107 | E-2200 | Weatherford OEM Drawing | CROSSHEAD | 3 |
| 27 | 1231112 | E-2200 | Weatherford OEM Drawing | PONY ROD | 3 |
| 28 | 01211174 D000348648 | E-2200 | Weatherford OEM Drawing | CONNECTING ROD | 3 |
| 29 | 1231218 | E-2200 | Weatherford OEM Drawing | BAFFLE | 3 |
| 30 | 01244387 | E-447 | Weatherford OEM Drawing | LINER, 4.0 in, CHROME IRON, E-447 | 3 |
| 31 | 01244389 | E-447 | Weatherford OEM Drawing | LINER, 5.0 in, CHROME IRON, E-447 | 3 |
| 32 | 01244390 | E-447 | Weatherford OEM Drawing | LINER, 5.5 in, CHROME IRON, E-447 | 3 |
| 33 | 01244391 | E-447 | Weatherford OEM Drawing | LINER, 6.0 in, CHROME IRON, E-447 | 3 |

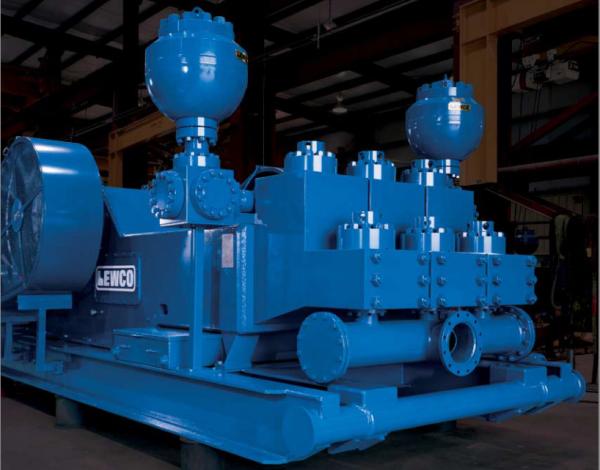

Ellis Williams Engineering Co. (EWECO) has introduced the Quintuplex 2200 mud pump. The Quintuplex 2200 features five cylinders instead of the typical three cylinders, which reduces piston rod load by more than 40%, and lengthens the life of all load components.
Its reduced pressure variation of more than 70% (undampened) reduces mud noise on the drill string, which allows for more efficient measurement while drilling (MWD) and logging while drilling (LWD). According to EWECO, it is the only mud pump in the industry that has a balanced eccentric crankshaft supported by four main (continuous anti-friction) roller bearings.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
SOUTHWEST 8482-25A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| | 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | |
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
SOUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 PSI | A-1700-PT / A-1400-PT | 7-1/2” X 12” / 10” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| | 8488-1A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39) | |
| 1 | 1388-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2974-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) | 3 |
| 3 | 8488-4 | WEARPLATE | 3 |
| 4 | 2974-1 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1290HW25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290W2 | PISTON ROD CONNECTING STUD (WITH WATER HOLE) | 3 |
| 10 | 1290HW1 | SUB ROD | 3 |
| 11 | 1290CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4018-94 | ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G90 | PONY ROD | 3 |
| 13 | | VALVE | 6 |
| 14 | | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | | VALVE SPRING | 6 |
| 16 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) | 1 |
| | 4475-1A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24) | |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-1A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) | 6 |
| 21 | 4775R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 23 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 25 | 4016-96 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 12 |
| 26 | 4017-4 | LINER RETAINER FERRY HEAD CAP SCREW | 24 |
| 27 | 6488-1 | LINER RETAINER FLANGE | 3 |
| 28 | 6588-1 | LINER RETAINER NUT (FOR LARGE BODY LINER) | 3 |
| 28A | 8488-7 | LINER RETAINER SET SCREW | 9 |
| 29 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) | 18 |
| 30 | 4018-70 | SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) | 24 |
| 31 | 8588-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 32 | 80102003 | SUCTION MANIFOLD GASKET | 3 |
| 33 | 8488-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 35 | 8488-5 | DOWEL PIN | 6 |
| 36 | 2988 | MODULE GASKET | 1 |
| 37 | 8388A | DISCHARGE MANIFOLD | 3 |
| 38 | 568-345 | DISCHARGE MANIFOLD GASKET | 12 |
| 39 | 4016-3 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT) | |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| MISSION "L" MODULE FOR PZ-8 | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| | | FEMPZ9ASSYSW | MODULE, COMPLETE ASSEMBLY FLUID END (INCLUDES ITEMS 1-26) | 1 |
| 1 | 8475-1D | FEMPZ9DISSW | MODULE, STUDDED DISCHARGE (INCLUDES ITEMS 1, 3-11) | 1 |
| 2 | 8475-2S | FEMPZ9SUCSW | MODULE, STUDDED SUCTION - (INCLUDES ITEMS 2, 5, 6, 12 & 24) | 1 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 6 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 6 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 24 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 40 |
| 7 | 4017-56 | PZ9GPFSSW | STUD, POWER FRAME (SHORT) | 4 |
| 8 | | 75510412 | NUT, POWER FRAME STUD | 4 |
| 9 | 4016-14 | PZ9LCSSW | STUD, LINER RETAINER (LONG) | 8 |
| 10 | 4017-5 | PZ1011DMSSW | STUD, DISCHARGE MANIFOLD | 4 |
| 11 | | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 8 |
| 12 | 8488-5 | PEP70 | DOWELL PIN | 2 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 1 |
| 14 | 2930-08 | 07932009 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 1 |
| 15 | 8477-3 | PZ1011WPSW | WEAR PLATE | 1 |
| 16 | 8475-3 | PZ9LC | LINER RETAINER | 1 |
| 17 | P-129 | 07207129 | VALVE COVER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 2 |
| 18 | 4016-99 | PEP73 | VALVE GUIDE SCREW | 4 |
| 19 | 4775R | OWA17VGASW | VALVE GUIDE (INCLUDES ITEMS 19, 23) | 2 |
| 20 | 4675-1A | OWA17VCSW | VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23) | 2 |
| 21 | 4475 | OWA17FLGSW | THREADED FLANGE | 2 |
| 22 | 4575 | OWA17CAPSW | THREADED CAP | 2 |
| 23 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 2 |
| 24 | 4017-77 | 700044111 | MANIFOLD CAPSCREW, SUCTION | 8 |
| 25 | AJO-449R | 114252430 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 8014G520 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
