Specifications
Brand Name :
EMSCO
Model Number :
FB1600
Certification :
API
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000 pieces per month
Delivery Time :
10 days
Price :
USD
Packaging Details :
WOODEN BOX
Usage :
Oil
Power :
Hydraulic
Pressure :
low pressure submersible mud pump sand dredging slurry pump
Application :
oil
Structure :
Piston Pump
Fuel :
diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Theory :
Centrifugal Pump
Type :
Mud Pump
Weight :
100-3700kg
Color :
red and so on
Material :
Chrome alloy
Warranty :
12 Months
Feature :
mud suction pump
Product name :
Mud Pump
Head :
10m mud suction pump
Oem :
Applicable
Inlet pipe (mm)/(in) :
DN200 / 8
Condition :
new
Description

www.premiumrigparts.com

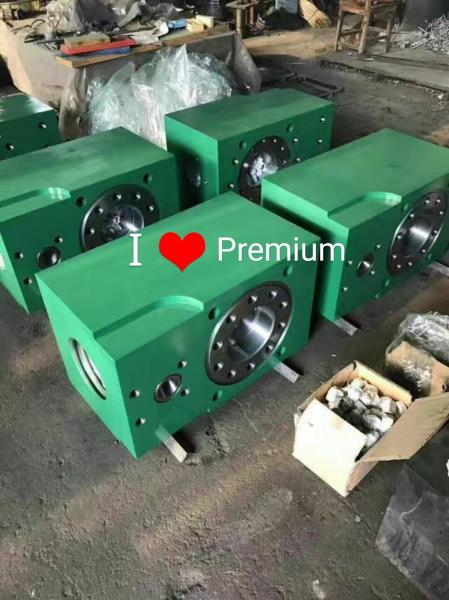

CONTINENTAL EMSCO FB-1300, FB-1600 FLUID END MODULE

ITEM # OEM PART # MISSION PART # DESCRIPTION
- - ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS)
1 - EMSFEMFB1300CA ASSY, COMPLETE FLUID END MODULE (ITEMS 1A-22, 24-28)
1A 0-6316-0357-00 EMSFEMFB1300 MODULE, STUDDED FLUID END(ITEMS 1A-9)
2 0-7507-2201-00 EMSFB13PFS STUD, POWER FRAME
3 0-7601-0630-17 EMSF1000PFSN NUT, POWER FRAME STUD
4 0-7507-2210-00 EMSFB13TRS STUD, CYLINDER HEAD THREADED RING
5 0-7601-0630-17 EMSF1000PFSN NUT, CYLINDER HEAD THREADED RING STUD
6 0-7507-2108-00 EMSF1000DMS STUD, DISCHARGE MANIFOLD
7 0-7601-0630-24 IDT800TRSN NUT, DISCHARGE MANIFOLD STUD
8 0-7507-2013-00 EMSFB13LCS STUD, LINER THREADED RING
9 6300160 PEP53 NUT, LINER THREADED RING STUD
8 0-6316-0354-00 EMSFB13LVGA GUIDE, LOWER VALVE (WITH BUSHING)
9 0-6316-0096-00 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE
10 0-6316-0360-00 EMSFB13BOLT LOCKBOLT, LOWER VALVE GUIDE
11 0-6316-0363-00 EMSFB13AR ALIGNMENT RING
12 0-6316-0369-00 7916801 GASKET, HEAD SEAL
13 0-6316-0364-90 EMSFB13CYHPLG PLUG, CYLINDER HEAD
14 0-6316-0361-00 EMSFB13CYHFLG RING, THREADED CYLINDER HEAD
15 0-6316-0362-90 EMSFB13CYHCAP CAP, THREADED CYLINDER HEAD
16 0-6316-0092-00 7916741 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
17 0-7501-0051-00 PEP79 SCREW, RETAINER UPPER)
18 0-6397-0603-00 EMSRETAINER PLATE, RETAINER (UPPER)
19 0-6397-0575-00 EMSF1000UVGB GUIDE, UPPER VALVE
20 0-6316-0039-90 EMSFB13CAP COVER, VALVE POT
21 0-6316-0373-00 7916800 GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
22 0-6316-0365-00 EMSFB13WP PLATE, WEAR
23 0-6316-0373-00 7916800 GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
24 0-6316-0366-00 EMSFB13LTR RING, LINER THREADED
25 0-6316-0367-20 EMSFB13LL LINER LOCK
26 0-7602-1600-25 99609343 GASKET, DISCHARGE MANIFOLD
27 0-7602-1600-61 99609442 GASKET, SUCTION MANIFOLD
28 0-7601-0333-30 0-7601-0333-30 SUCTION MANIFOLD CAPSCREW (NOT SHOWN)
7924504

MODULE SEAL KIT: CONSISTING OF SUCTION MANIFOLD O RING, DISCHARGE MANIFOLD O RING, CYLINDER HEAD GASKET, VALVE COVER GASKET, & WEAR PLATE GASKET

Description F500 F800 F1000 FB1300 FB1600
Liner of Crosshead Upper 6322-0063-00 6320-0043-00 6319-0015-00 6316-0024-00 6316-0024-00
Liner of Crosshead Lower
Pin of Crosshead 6322-0066-00 6320-0011-00 6319-0017-00 6316-0087-00 6316-0087-00
Extension Rod 6322-0068-00 6320-0041-00 6319-0020-00 6316-0028-00 6316-0028-00
Crosshead 6322-0063-00 6320-0012-00 6319-0014-00 6316-0022-00 6316-0022-00
Pinion Shaft 6322-0022-00 6320-0039-00 6319-0012-00 6317-0021-00 6316-0027-00
Wear Ring of Pinion shaft 6322-0023-00 6320-0031-00 6319-0022-00 6301-0002-00 6301-0002-00
Carrier, Bearing Left 6322-0119-00 6320-0018-00 6319-0043-00 6317-0028-00 6316-0037-00
Carrier, Bearing Right 6322-0045-00 63230-0149-00 6319-0176-00 6317-0177-00 6316-0288-00
Connecting Rod 6322-0053-00 6320-0039-00 6319-0035-00 6317-0026-00 6316-0023-00
Bull Gear 6322-0012-00 6320-0017-00 6319-0011-00 6317-0022-00 6316-0030-00
Bolt, Main Bearing 7501-1281-00 6320-0044-00 6319-0034-00 6316-0077-00 6316-0077-00
Bearing, Crosshead 7602-021291 7602-021290 6397-0267-00 6301-0038-00 6301-0038-00
Bearing, Pinion Shanft 7602-021037 7602-021109 7602-021288 7602-021267 7602-021267
Bearing, Eccentric 6310-0012-00 7602-021289 6319-0078-00 7602-021269 7602-021268
Bearing, Main 7602-020053 7602-020054 7602-020147 7602-020138 7602-020137
