Specifications
Brand Name :
Honghua, BOMCO, NATIONAL, OILWELL, GARDNER DENVER, SOUTHWEST
Model Number :
3NB-800F
Certification :
API
Place of Origin :
CHINA
MOQ :
1 piece
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 per month
Delivery Time :
In stock
Price :
1 to 500 usd
Packaging Details :
Suitable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
Electric,Hydraulic,diesel
Pressure :
High Pressure,Low Pressure,low pressure submersible mud pump sand dredging slurry pump,Medium pressure
Application :
mining,oil,Chemical
Structure :
Piston Pump
Fuel :
Diesel,Electric,diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Theory :
Centrifugal Pump
Type :
Mud Pump
Weight :
100-3700kg
Color :
blue,red and so on,Green,Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Feature :
Compact Size
Product name :
Mud Pump
Oem :
can be accept
Inlet pipe (mm)/(in) :
DN200 / 8
Condition :
NEW
Description

www.premiumrigparts.com

HongHua Group(HH), which is a world-leading company in designing and manufacturing oilfield equipment. HH manufactures Drilling Rig Packages, Mud Pumps, Drawworks, Top Drives, Hydraulic Catwalk, and other oilfield equipment and Parts.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description F500 F800 F1000 F1300/1600
Liner of Crosshead Upper NB500G.04.02 NB800M.04.02 GH3101.04.02 GH3161-04.02
Liner of Crosshead Lower NB800M.04.13 GH3101-04.12 GH3161-04.15
Pin of Crosshead NB500G.04.08 NB800M.04.18 GH3101-04.10 GH3161-04.13
Extension Rod NB500G.04.15 NB800M.04.09 GH3101-04.09 GH3161-04.12
Sub Rod
Crosshead NB500G.04.01 NB800M.04.01 GH3101.04.01 GH3161-04.01

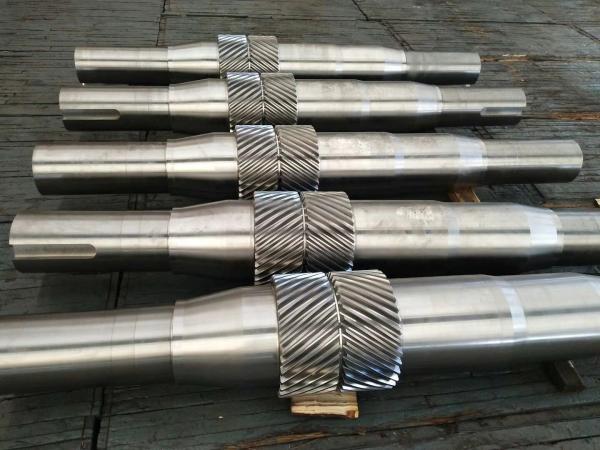

Pinion Shaft NB500G.03.02 NB800M.03.02A GH3101-03.02B GH3161-03.02
Wear Ring of Pinion shaft NB500G.03.02 NB800M.03.03 GH3101-03.03 GH3161-03.03
Carrier, Bearing Left NB500G.02.14 NB800M.02.16 GH3101-02.14 GH3161-02.13
Carrier, Bearing Right NB500G.02.02 NB800M.02.02 GH3101-02.02 GH3161-02.02
Connecting Rod NB500G.02.06 NB800M.02.06 GH3101-02.06 GH3161-02.06
Bull Gear NB500G.02.10A NB800M.02.10.00 GH3101-02.10B GH3161-02.10.00
Stuffing Box NB500G.04.06 NB800M.04.06 GH3101-03.03 GH3161-04.05
Bolt, Main Bearing NB500G.02.18 NB800M.02.14 GH3101-02.18 GH3161-02.16
Bearing, Crosshead NB500G.04.07 NB800M.03.13 GH3101-04.17 GH3161-04.17
Bearing, Pinion Shanft NB500G.03.12 NB800M.03.13 GH3101-03.12 GH3161-03.12
Bearing, Eccentric NB500G.02.22 NB800M.02.22 GH3101-02.21 GH3161-02.21
Bearing, Main NB500G.02.23 NB800M.02.23 GH3101-02.22 GH3161-02.22

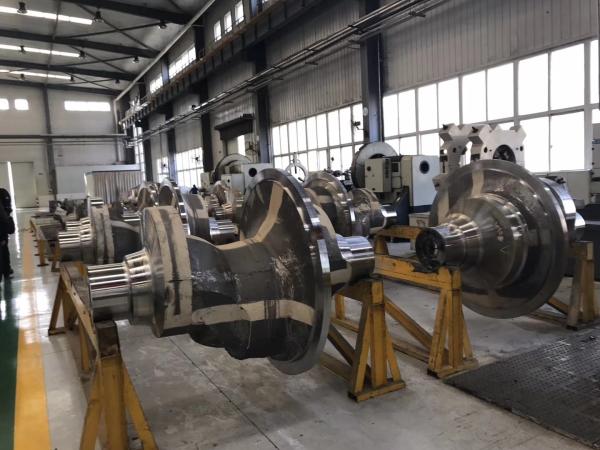

Crankshaft NB500G.02.08.00 NB800M.02.08.00 GH3101-02.08.00 GH3161-02.08.00

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description F500 F800 F1000 F1300/1600 F1600HL F2200HL
Liner of Crosshead Upper

AH0501010402

AH0801010402

AH1001010402

AH1301010402

AH1301010402

AH2202010402
Liner of Crosshead Lower

AH0801010408

AH1001010409

AH1301010412

AH1301010412

AH2202010403
Pin of Crosshead AH0501010404 AH0801010407 AH1001010408 AH1301010410 AH1301010410 AH2202010410
Extension Rod AH0501010410 AH0801010406 AH1001010407 AH1301010409 AH1301010409 AH2202010409

Crosshead

AH0501010401

AH0801010401

AH1001010401

AH1301010401

AH1301010401

AH2202010401

Pinion Shaft

AH0501010302

AH0801010302

AH1001010302

AH1601010201

AH1601010201
Wear Ring of Pinion shaft

AH0501010303

AH0801010303

AH1001010303

AH1301010303

AH1301010303

AH2202010306

Carrier, Bearing Left

AH0501010212

AH0801010213

AH1001010212

AH1601010105

AH1601010105

AH2202010212

Carrier, Bearing Right

AH0501010202

AH0801010202

AH1001010202

AH1601010101

AH1601010101

AH2202010202

Connecting Rod

AH0501010206

AH0801010206

AH1001010206

AH1601010103

AH1601010103

AH2202010206

Bull Gear

AH0501010210

AH0801010210

AH1001010219

 AH16010101040 0 AH16010101040 0

AH220201021000

Bolt, Main Bearing

AH051020207

AH0801020206

AH1001010215

AH1301010215

AH1301010215

AH2202010215

Bearing, Crosshead

5G354920Q

4G254735Q

5G254936Q

AH1301010414

AH1301010414
Bearing, Pinion Shanft

4G32828H

4G32836H

4G32840H

AH1301010312

AH1301010312

AH2202010315

Bearing, Eccentric

92984QU

928/508QU

929/558.8QU

 AH16010101070 0 AH16010101070 0

AH2202010217

Bearing, Main

3053738U

3053748H

4053156H

 AH16010101080 0 AH16010101080 0

AH2202010218

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description

7P50

mud pump

8P80

mud pump

9P100

Mud pump

10P130

Mud pump

12P160

Mud pump

14P220

Mud pump
Liner of Crosshead Upper 1291017 1293017 1290017 1292017 1295017
Liner of Crosshead Lower
Pin of Crosshead 1294028 1291028 1293028 1290028 1292028 1295028
Extension Rod 1294083 1291083 1293083 1290083 1292083 1295083
Crosshead 1291090 1293090 1290015 1292090 1295015
Crosshead 1294015 1291015 1293015 1290090 1292015 1295090
Pinion Shaft 1294010 1291010 1293010 1290358 1292010 1295010
Cage, Main Bearing 1294011 1291011 1293011 1290011 1292011 1295011
Cap, Bearing Right 1294012 1291012 1293012 12960012 1292012 1295012
Connecting Rod 1294007 1291007 1293007 1290007 1292007 1295007
Bull Gear 1294008 1291008 1293008 1290008 1292008 1295008
Crankshaft 1291005 1293005 1290005 1292005 1295005
Bearing, Crosshead ZB-5620 ZB-6751 ZB-7120 ZB-7370 ZB-8253 ZB-9005
Bearing, Pinion Shanft ZB-6292 ZB-7081 ZB-7873 ZB-8662 ZB-10236
Bearing, Eccentric ZB-22000 ZB-23500 ZB-25500 ZB-26250 ZB-28515 ZB-32000
Bearing, Main ZT-10003 ZT-11812 ZT-13127 ZT-14500 ZT-15000 ZT-16125

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

NATIONAL 10-P-130 6-3/4 x 10
LINERS LINER GASKETS PISTONS PISTON REPLACEMENT RUBBERS
SIZE CERAMIC SUPREME RUBBER URETHANE WHITE LIGHTNING SUPREME GREEN DUO FLEXLIP WHITE LIGHTNING SUPREME
4" 07465400 05465400 012180170 1502052 011102926 015180102
4 1/4"
4 1/2" 07465450 05465450 07923265 012180197 012180196 1502054 011102928 015180145 015180144
4 3/4"
5" 07465500 05465500 07923265 012180254 012180253 1502056 011103033 015180186 015180185
5 1/4"
5 1/2" 07465550 05465550 07923263 012180338 012180337 1502058 011103132 015180228 015180227
5 3/4"
6" 07465600 05465600* 07923261 012180395 012180394 1502060 011103629 015180269 015180268
6 1/4" 05465625* 012180493 1502061 011103322 015180285 015180284
6 1/2" 07465650 05465650* 07923283 012180536 012180535 1502062 011103827 015180301 015180300
6 3/4"
7"
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS GASKETS
ROUGHNECK ROUGHNECK HP SUPREME FKN OEM URETHANE L STYLE URETHANE
VALVE-White Lightning Insert 9700367 9700359 060152809 N/A Valve Cover 07916768 07916468 07207128
VALVE-Urethane Insert 9700285 9700353 060152808 1560995 Cylinder Head
VALVE-Rubber Insert 9702601 N/A 060122702 1560994 Plug Seal
SEAT 9702555 9702555 061102604 1561450 HYDRA-LOK OEM MISSION L
SPRING 8201684 8201684 055413421 1560701 Complete Assembly 80500101 80500101
SPRING-Stainless 055402945
INSERT-Urethane 9705090 9700363 062400106 1560587 MODULES OEM MISSION L
INSERT-Rubber 9705155 N/A 062400056 1560588 Complete Assembly FEMNAT10PCA FEM10PASSYSW
SEAT PULLER ASSEMBLIES Discharge Module Studded FEMNATDIS10P FEM10PDISSW
Puller Assembly 1 M 1060 M 1060 M 1060 M 1060 Suction Module Studded FEMNATSUC8P9P FEM10PSUCSW
Puller Head 8401977 8401977 181235052 M 1089 One Piece OEM Style Studded
Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod Quick Connect Self Aligning Rod Assembly Pony Rod Baffle Piston Rod Sub Rod Stud Rod Nut Clamp Covered Rod Nut Pony Rod Seal
1602560 1095210 1290194 1290347 1290346 005402052 005417803 CRN-1

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

SOUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI A-1700-PT / A-1400-PT 7-1/2” X 12” / 10”

ITEM P/ N DESCRIPTION QTY. REQ’D
8488-1A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) 3
3 8488-4 WEARPLATE 3
4 2974-1 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) 6
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD (WITH WATER HOLE) 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13 VALVE 6
14 VALVE INSERT (IF REQUIRED) 6
15 VALVE SPRING 6
16 VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) 1
4475-1A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-1A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) 6
20 P129 HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) 6
21 4775R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) 6
23 4018-88 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4016-96 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 4017-4 LINER RETAINER FERRY HEAD CAP SCREW 24
27 6488-1 LINER RETAINER FLANGE 3
28 6588-1 LINER RETAINER NUT (FOR LARGE BODY LINER) 3
28A 8488-7 LINER RETAINER SET SCREW 9
29 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
30 4018-70 SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) 24
31 8588-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
32 80102003 SUCTION MANIFOLD GASKET 3
33 8488-2S SUCTION MODULE (STUDDED ONLY) 3
34 8488-1D DISCHARGE MODULE (STUDDED ONLY) 3
35 8488-5 DOWEL PIN 6
36 2988 MODULE GASKET 1
37 8388A DISCHARGE MANIFOLD 3
38 568-345 DISCHARGE MANIFOLD GASKET 12
39 4016-3 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT)

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

GARDNER DENVER PZ-7, PZ-8, PZ-9

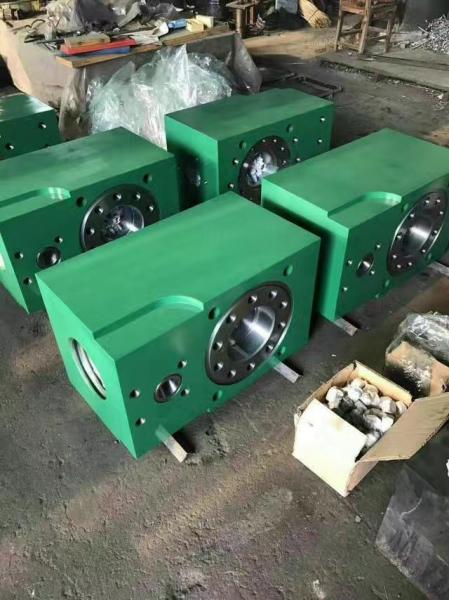

FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO GARDNER DENVER INDEX
1 FEMPZ789CA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23) 3
1A 200PZL029F FEMPZ789 FLUID END MODULE STUDDED - (INCLUDES 1-9 & 24) 3
205PZL029D
02 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
03 50B36 PZ789LCSN NUT (FOR ABOVE) 24
04 79L73 PZ789GPFS STUD, FRAME 12
05 50AQ30 PZ789GPFSN NUT (FOR ABOVE) 12
06 79AL6 PZ789TRS STUD, VALVE COVER 48
07 50B34 PZ789TRSN NUT (FOR ABOVE) 48
08 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
09 50B34 PZ789TRSN NUT (FOR ABOVE) 12
10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
11 2011862 077670074900 GASKET, VALVE COVER 6
12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
13 2011860 PZ789VC COVER, VALVE 6
14 2011699 PZ789FLG RING, VALVE COVER THREADED 6
15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
16 2011701 PZ789PL PLATE, RETAINER 6
17 2011700 PZ789LVG GUIDE, VALVE SUCTION 3
19 95W2 PZLVGAWASHER WASHER, LOCK 1/2" 316SS 6
19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
20 25AL35 077070074701 GASKET, DISCHARGE MANIFOLD 3
21 25G41 078070028300 GASKET, SUCTION MANIFOLD 3
22 1PV14 PZ789LC CLAMP, LINER 3
23 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
24 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

SOUTHWEST “NEW STYLE” 8476-4A FLUID END

FOR NATIONAL 12-P-160

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 P.S.I. NATIONAL 12-P-160 7-1/2” X 12”

ITEM P/N DESCRIPTION QTY. REQ’D
8476-4A FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1 1376YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) 3
2 2930-XX LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 DUAL SPRAY PIPE 3
10C 4020-29 ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
4476-6A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) 6
16 4476 THREADED FLANGE 6
17 4597 SCREW GLAND 6
18 4676-6A PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) 6
19 P119 HP VALVE COVER PLUG SEAL 6
20 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) 6
22 4016-98 VALVE GUIDE SCREW 12
23 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) 30
25 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
26 6476 LINER RETAINER FLANGE 3
27 6576 LINER RETAINER NUT 3
28 4018-17 SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-6S SUCTION MODULE (STUDDED ONLY) 3
33 8476-5D DISCHARGE MODULE (STUDDED ONLY) 3
34 8488-5 DOWEL PIN 6
ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
47 4018-18 DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) 16
48 4018-39 DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW 16
49 8376-1 DISCHARGE CONNECTOR 2
50 8376-2 DISCHARGE ADAPTER 2
51 8376-3 BACK-UP RING 4
52 8376-4 DISCHARGE SPACER FLANGE 2
53 2976-3 DISCHARGE SPACER FLANGE SEAL 2
54 2976-1 DISCHARGE CONNECTOR / ADAPTER PACKING 2
55 2976-2 DISCHARGE CONNECTOR / ADAPTER PACKING 4
56 R44D RING JOINT GASKET 2
57 4017-22 DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) 16
58 5000-5BFLANGE BLIND FLANGE 5" 1
59 9070012 PONY ROD SEAL 12
60 80491292 SPLASH GUARD 3
61 8376-50A COMPLETE STRAINER CROSS 1
62 8376-50 STUDDED STRAINER CROSS ONLY 1

Product tags

hydraulic pump parts list

,

hydraulic pump part list

,

k3v63 hydraulic pump parts
Send your message to this supplier
Send Now

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Ask Latest Price
Product Detail
Brand Name :
Honghua, BOMCO, NATIONAL, OILWELL, GARDNER DENVER, SOUTHWEST
Model Number :
3NB-800F
Certification :
API
Place of Origin :
CHINA
MOQ :
1 piece
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union
Contact Supplier
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves
Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member
6 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products National Mud Pumps
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
