| E-447 mud pump | | |
| Liner, 3-1/2" Chrome Iron | 1724089 | D000426490 |
| Liner, 4" Chrome Iron | 1244387 | D000416537 |
| Liner, 4-1/2" Chrome Iron | 1244388 | D000416538 |
| Liner, 5" Chrome Iron | 1244389 | D000416539 |
| Liner, 5-1/2" Chrome Iron | 1244390 | D000416541 |
| Liner, 6" Chrome Iron | 1244391 | D000416542 |
| Liner, 5-1/2" Zirconia | 1378180 | D000416549 |
| Liner, 6" Zirconia | 1378184 | D000416548 |
| E-2200 | | |
| Liner, 4-1/4" Chrome Iron | 1806117 | D000461711 |
| Liner, 4-1/2" Chrome Iron | 1806118 | D000461712 |
| Liner, 4-3/4" Chrome Iron | 1806119 | D000461713 |
| Liner, 5" Chrome Iron | 1806120 | D000461706 |
| 1244331 | D000416575 |
| Liner, 5-1/2" Chrome Iron | 1806122 | D000461730 |
| 1292705 | D000348728 |
| Liner, 6" Chrome Iron | 1806124 | D000461729 |
| 1280615 | D000416577 |
| Liner, 6-1/2" Chrome Iron | 1806126 | D000461728 |
| 1806408 | |
| 1280614 | D000416578 |
| Liner, 7" Chrome Iron | 1806128 | D000461727 |
| 1244330 | D000416579 |
| Liner, 7-1/2" Chrome Iron | 1806130 | D000461726 |
| Liner, 8" Chrome Iron | 1806132 | D000461725 |
| Liner, 5" Zirconia | 1368296 | D000416552 |
| Liner, 5-1/2" Zirconia | 1290011 | D000416553 |
| Liner, 6" Zirconia | 1368316 | D000416557 |
| Liner, 6-1/2" Zirconia | 1850022 | |
| 1290001 | D000416558 |
| Liner, 7" Zirconia | 1372252 | D000416559 |
Weatherford is one of the world's largest multinational oil and natural gas service companies. The company provides products and services for drilling, evaluation, completion, production and intervention of oil and natural gas wells, along with pipeline construction and commissioning. Headquartered in Switzerland, Weatherford operates in more than 100 countries across the globe and employs more than 35,000 people (2016).
Weatherford offers a full line of premium-quality mud pumps based on proven and
simple-to-maintain designs that are accepted around the world. Each pump comes with
exceptional service and support that only a true global provider like Weatherford can
promise. When you factor in our competitive pricing and off-the-shelf availability of pumps
and parts, it’s clear that Weatherford has raised the bar for mud pumps.
| Weatherford |
| | 4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| E-800 | 1317096 | 1317156 | 1317211 | 1317262 | 1317311 | 1317357 | 1317393 |
| E-447 | 1244387 | 1244388 | 1244389 | 1244390 | 1244391 | / | / |
| E-2200 | 1806118 | 1806120/ 1244331 | 1806122/ 1292705 | 1806122/ 1292705 | 1806124/ 1280615 | 1806126/ 1280614 | 1806128/ 1244330 |
| MP-8/10 | 1317095 | 1317155 | 1279784 | 1279787 | 1279819 | 117356 | 1317375 |
| MP-13/16 | 1317099 | 1317159 | 1317213 | 1317264 | 1317313 | 1317359 | 1317396 |
| MP-5 | 1317093 | 1317153 | 1317209 | 1317260 | 1317309 | 1317355 | / |
| MP-16 2-Piece 5000 psi | 1317099 | 1317159 | 1317213 | 1317264 | 1317313 | 1317359 | 1317396 |
| MP-16 2-Piece 7500 psi | 1280517 | 1280519 | 1280521 | 1280523 | 1280529 | 1280531 | 1280538 |
| W165/340 | 1788209 | 1788210 | 1315942 | 1788208 | | | |
| Emsco F-800 / 1000 | 1317095 | 1279781 | 1279784 | 1279787 | 1279819 | 1317356/1279820 | / |
| Emsco FB-1300 / 1600 | / | 1317190 | 1279899 | 1317264/ 1279902 | 1317313 | 1317359 | 1279970/ 1317396 |
| Gardner Denver PZ-8/9 | / | 1317167 | 1280679/ 1317211 | 1280681/ 1317272 | 1280684/ 1317311 | 1280686/ 1317357 | 1317393/ 1317400 |
| Gardner Denver PZ-10/11 | 1280702 | 1280704 | 1280706 | 1280709 | 1280711 | 1280715 | 1317394 |
| Ideco T-800 / 1000 | 1280753 | 1280755 | 1280757 | 1280759 | 1280761 | 1280765 | 1280767 |
| Ideco T-1300 / 1600 | 1317097 | 1317157 | 1317212 | 1317263 | 1317312 | 1317358 | 1317395 |
| National 9-P-100 / 10-P-130 | / | / | / | 1317259 | 1317308 | 1317354 | / |
| National 12-P-160 | 1280517 | 1280519 | 1280521 | 1280523 | 1280529 | 1280531 | 1280533 |
| National 14-P-220 | / | / | 1280378 | 1280386 | 1280390 | 1280410 | 1280412 |
| National JWS-165/340 | 1788209 | 1788210 | 1315942 | 1788208 | / | / | / |
| Oilwell A-1400-PT / A-1700-PT | 1280105 | 1280108 | 1280109 | 1280112 | 1280114 | 1280117 | 1280119 |
| Ellis Williams E-1600 | / | / | 1320730-01 | 1320730-02 | 1320730-03 | 1320730-04 | 1320730-05 |
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts

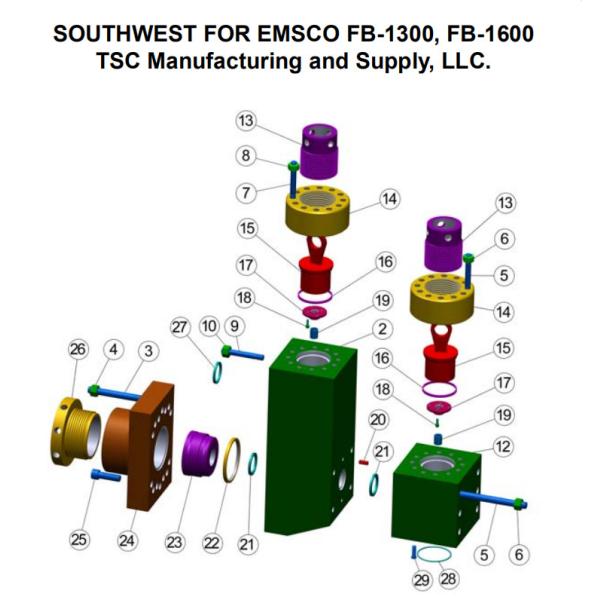

| CONTINENTAL EMSCO FB-1300, FB-1600 | | |
| FLUID END MODULE & ACCESSORIES | | |
| ITEM # | TSC PART # | DESCRIPTION |
| 1 | TS-0-6316-0357-00 | FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 5, 6, 7,8) |
| 2 | TS-0-7507-2013-00 | STUD, MODULE TO LINER CLAMP |
| 3 | TS-0-7601-0610-18 | LINER CLAMP STUD NUT |
| 4 | TS-0-7507-2201-00 | POWER FRAME STUD |
| 5 | TS-0-7507-2210-00 | STUD, MODULE TO CYLINDER |
| 6 | TS-0-7601-0630-17 | NUT (FOR ABOVE) |
| 7 | TS-0-7507-2108-00 | STUD, MODULE TO DISC. MANIFOLD |
| 8 | TS-0-7601-0630-24 | NUT (FOR ABOVE) |
| 9 | TS-0-6316-0354-00 | GUIDE, LOWER VALVE (WITH BUSHING) |
| 10 | TS-0-6316-0096-00 | BUSHING, LOWER VALVE GUIDE |
| 11 | TS-0-6316-0360-00 | LOCKBOLT, LOWER VALVE GUIDE |
| 12 | TS-0-6316-0363-00 | ALIGNMENT RING |
| 13 | TS0-6316-0369-0099(G-801) | GASKET, HEAD SEAL |
| 14 | TS-0-6316-0364-00 | PLUG, CYLINDER HEAD |
| 15 | TS-0-6316-0361-00 | RING, THREADED CYLINDER HEAD |
| 16 | TS-0-6316-0362-00 | CAP, THREADED CYLINDER HEAD |
| 17 | TS-0-6316-0092-00(G-741) | GASKET, VALVE COVER |
| 18 | TS-0-7501-0051-00 | SCREW, RETAINER UPPER) |
| 19 | TS-0-6397-0603-00 | PLATE, RETAINER (UPPER) |
| 20 | TS-0-6397-0575-00 | GUIDE, UPPER VALVE |
| 21 | TS-0-6316-0039-00 | COVER, VALVE POT |
| 22 | TS-0-6316-0373-00 | GASKET, WEAR PLATE |
| 23 | TS-0-6316-0365-00 | PLATE, WEAR |
| 24 | TS-0-6316-0373-00(G-800) | GASKET, LINER |
| 25 | TS-0-6316-0366-00 | RING, LINER THREADED |
| 26 | TS-0-6316-0367-00 | LINER LOCK |
| 27 | TS-0-7602-1600-25 | GASKET, DISCHARGE MANIFOLD |
| 28 | TS-0-7602-1600-61 | GASKET, SUCTION MANIFOLD |
| NATIONAL 12-P-160 W/ TAPR-LOK VALVE COVERS FLUID END MODULE & ACCESSORIES |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | | FEMNAT12PCA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1, 2, 3-10, 29-35) | 3 |
| 1 | 1292240 | FEMNATDIS12P | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) | 3 |
| 1A | 1292601 | FEMNATDIS12PA | MODULE, STUDDED FLUID END DISCHARGE W/ AUTOFRETTAGE (INCLUDES ITEMS 1A, 3-10) | 3 |
| 2 | 1292243 | FEMNATSUC12P | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) | 3 |
| 2A | 1292604 | FEMNATSUC12PA | MODULE, STUDDED FLUID END SUCTION W/ AUTOFRETTAGE (INCLUDES ITEMS 2A, 3-4) | 3 |
| 3 | 2408027 | 12P160TRS | STUD, THREADED RING | 72 |
| 4 | 6300240 | 12P160TRSN | NUT, THREADED RING STUD | 72 |
| 5 | 2408029 | 12P160PFS | STUD, POWER FRAME | 30 |
| 6 | 6300220 | 8P80TRSN | NUT, POWER FRAME STUD | 30 |
| 7 | 2408028 | 12P160LCS | STUD, LINER BUSHING | 18 |
| 8 | 6300180 | 12P160LCSN | NUT, LINER BUSHING STUD | 18 |
| 9 | 2408033 | 12P160DSUCS | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 |
| 10 | 6300281 | PEP55 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 |
| 11 | 2408015 | 12P160DMS | STUD, SPACER FLANGE | 16 |
| 12 | 6300240 | 12P160TRSN | NUT, SPACER FLANGE STUD | 16 |
| 13 | 6511416 | PEP70 | PIN, DOWELL | 6 |
| 14 | 1292141 | NATVGB | BUSHING,VALVE GUIDE | 6 |
| 15 | 1292140 | 12PVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
| 16 | 1540127 | 1540127 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 17 | 1292174 | NAT12PRETSEAL | RETAINER, VALVE & SEAL | 6 |
| 18 | 1292178 | NAT12PAWS | SCREW, ADJUSTING WEDGE | 6 |
| 19 | 6300182 | 12P160AWSN | NUT, WEDGE ADJUSTING SCREW | 6 |
| 20 | 1292171 | 12P160AWSW | WASHER, WEDGE ADJUSTING SCREW | 6 |
| 21 | G1292268 | 12P160LW | ASSEMBLY, WEDGE (INCLUDES ITEM # 20 WEDGE SPRING) | 6 |
| 22 | 1292181 | 12P160WS | SPRING, WEDGE | 6 |
| 23 | 1292176 | NAT12PFLG | RING, THREADED | 6 |
| 24 | 1292172 | NAT12PCAP | CAP, VALVE COVER (THREADED) | 6 |
| 25 | 2410031437 | 2410031437 | SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER | 4 |
| 26 | 1292253 | NAT12PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 27 | 2410031433 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 1292252 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
| 28A | 1292717 | 1292717 | BACK UP RING, DISCHARGE CONNECTOR | 2 |
| 29 | 7006685 | 7006685 | CAPSCREW, DISCHARGE SPACER FLANGE | 16 |
| 30 | 700030711 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 31 | 7919050 | 7919050 | WASHER, DISCHARGE CONNECTOR SCREW | 16 |
| 32 | 1292266 | PP6021260 | PLATE, WEAR | 3 |
| 33 | 1292165 | 12PLCA | BUSHING, LINER | 3 |
| 34 | 1292166 | 12PLC | ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 33A, 33B, 33C, 33D, 33E, & 33F) | 3 |
| 34A | 700049110 | 700049110 | CAPSCREW, LINER CLAMP | 6 |
| 34B | | | ** (OPTIONAL) LOCK WASHER 5/8" | 6 |
| 34C | 6309140 | 6309140 | NUT, LINER CAPSCREW | 6 |
| 34D | 1292169 | 1292169 | PIN, CONNECTOR | 6 |
| 34E | G1292168P | G1292168P | CONNECTOR, LINER CLAMP | 6 |
| 34F | 6571620 | 6571620 | PIN, SPRING | 12 |
| 35 | 1292257 | 1292257 | SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 36 | 1540851 | 1540851 | SEAL, SUCTION MANIFOLD | 3 |
| 37 | 700048511 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 38 | 1292246 | | SPACER, STUDDED DISCHARGE | 2 |
| 39 | 1292258 | | SEAL, SPACER TO FLUID END | 2 |
| NATIONAL 14-P-220 (7500 PSI) W/ FAST CHANGE VALVE COVERS FLUID END MODULE & ACCESSORIES |
| ITEM # | OEM PART # | DESCRIPTION | QTY PER PUMP |
| | 80718020 | ASSY, COMPLETE FLUID END W/ VALVE SERVICE & SUCTION MANIFOLD | 1 |
| 1 | 1295601 | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) | 3 |
| 2 | 1295604 | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) | 3 |
| 3 | 2408049 | STUD, VALVE COVER | 84 |
| 4 | 6300240 | NUT, VALVE COVER STUD | 84 |
| 5 | 2408027 | STUD, POWER FRAME | 30 |
| 6 | 6300240 | NUT, POWER FRAME STUD | 30 |
| 7 | 2408047 | STUD, LINER BUSHING | 18 |
| 8 | 6300200 | NUT, LINER BUSHING STUD | 18 |
| 9 | 2408048 | STUD, SUCTION TO DISCHARGE MODULE | 18 |
| 10 | 6300320 | NUT, SUCTION TO DISCHARGE MODULE STUD | 18 |
| 11 | 2408014 | STUD, DISCHARGE FLANGE | 12 |
| 12 | 6300180 | NUT, DISCHARGE FLANGE STUD | 12 |
| 13 | 1295262 | SPACER, STUDDED DISCHARGE (NOT SHOWN) INCLUDED ITEM# 11 AND 12 | 2 |
| 14 | 1295258 | SEAL, DISCHARGE SPACER (NOT SHOWN) | 2 |
| 15 | 7006609 | CAPSCREW, DISCHARGE SPACER FLANGE | 24 |
| 16 | 1295176 | RING, THREADED F/C | 6 |
| 17 | 1295172 | CAP, VALVE COVER (THREADED) F/C | 6 |
| 18 | 1292353 | PULLER, SEAL RETAINER | 6 |
| 19 | 1295174 | RETAINER, SEAL | 6 |
| 20 | 1540163 | SEAL, VALVE COVER | 6 |
| 21 | 1292140 | HOLDER, VALVE GUIDE INSERT | 6 |
| 22 | 1292141 | INSERT, VALVE GUIDE | 6 |
| 23 | 1540021 | SEAL, SUCTION MANIFOLD | 3 |
| 24 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 2410031440 | SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER | 4 |
| 26 | 1295253 | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 27 | 2410031438 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 1295252 | CONNECTOR, DISCHARGE | 2 |
| 28A | 1295175 | RING, DISCHARGE CONNECTOR BACK UP | 4 |
| 29 | 7619050 | WASHER, DISCHARGE CONNECTOR CAPSCREW (NOT SHOWN) | 16 |
| 30 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 31 | 6511416 | PIN, DOWELL | 6 |
| 32 | 1295266 | PLATE, WEAR | 3 |
| 33 | 1295165 | BUSHING, LINER | 3 |
| 34 | 1295166 | CLAMP COMPLETE, LINER (INCLUDES ITEMS 34A, 34B, 34C, 34D, 34E, 34F) | 3 |
| 34A | 1295167 | CLAMP, LINER | 3 |
| 34B | 700049110 | CAPSCREW, LINER CLAMP | 6 |
| 34C | 6309140 | NUT, LINER CAPSCREW | 6 |
| 34D | 1292169 | PIN, LINER CLAMP | 6 |
| 34E | G1292168P | CONNECTOR, LINER CLAMP | 6 |
| 34F | 6571620 | PIN, SPRING | 12 |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 | | |
| FLUID END MODULE & ACCESSORIES | | |
| ITEM # | TSC PART # | DESCRIPTION |
| 01 | TS-205PZL029D | FLUID END MODULE STUDDED (INCLUDES 1-9 ) |
| 02 | TS-79L188 | STUD, FRAME & LINER CLAMP |
| 03 | TS-50B36 | NUT (FOR ABOVE) |
| 04 | TS-79L73 | STUD, FRAME |
| 05 | TS-50AQ30 | NUT (FOR ABOVE) |
| 06 | TS-79AL6 | STUD, VALVE COVER |
| 07 | TS-50B34 | NUT (FOR ABOVE) |
| 08 | TS-202PZL110 | STUD, DISCHARGE MANIFOLD |
| 09 | TS-50B34 | NUT (FOR ABOVE) |
| 10 | TS-2011861 | RING, VALVE COVER GASKET EXPANDER |
| 11 | TS-2011862(G-749) | GASKET, VALVE COVER |
| 12 | TS-2007674 | BUSHING, VALVE GUIDE |
| 13 | TS-2011860 | COVER, VALVE |
| 14 | TS-2011699 | RING, VALVE COVER THREADED |
| 15 | TS-2011857 | CAP, VALVE COVER LOCK |
| 16 | TS-2011701 | PLATE, RETAINER |
| 17 | TS-2011700 | GUIDE, VALVE SUCTION |
| 18 | TS-95W2 | WASHER, LOCK 1/2" 316SS |
| 19 | TS-655EE06S | SCREW 1/2"x1 3/4" 316SS HX HD C/S |
| 20 | TS-25AL35 | GASKET, DISCHARGE MANIFOLD |
| 21 | TS-25G41 | GASKET, SUCTION MANIFOLD |
| 22 | TS-1PV14 | CLAMP, LINER |
| 23 | TS-2011706 | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) |
| BOMCO F1600 FLUID END SPARES & ACCESSORIES (All Parts are Available) | Return to Index |
| | | | | | |
| ITEM # | Bomco PART # | NOV PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| FLUID END MODULE SPARES |
| 1 | AH160201010400 | | DISCHARGE MODULE | 3 | OK |
| 2 | AH160201010500 | | SUCTION MANIFOLD | 1 | OK |
| 3 | AH1602010106 | | VALVE COVER | 3 | OK |
| 4 | AH1602010107 | | WEAR PLATE | 3 | OK |
| 5 | AH1602010108 | | DISCHARGE MANIFOLD | 1 | OK |
| 6 | AH16020101100 | | SUCTION MODULE | 3 | OK |
| 7 | AH160201011100 | | PISTON | 3 | OK |
| 8 | AH160201011200 | | VALVE GUIDE | 6 | OK |
| 9 | AH1602010114 | | SEAL, MODULE | 3 | OK |
| 10 | AH1602010114 | | O RING, DISCHARGE MANIFOLD | 3 | OK |
| 11 | AH1602010115 | | GASKET, WEAR PLATE | 3 | OK |
| 12 | AH1602010116B1 | | GASKET SEAL, LINER | 3 | OK |
| 13 | AH160201011700 | | LINER | 3 | OK |
| 14 | AH1301010518 | | LINER, LOCK | 3 | OK |
| 15 | AH1301010510 | | GASKET, VALVE COVER | 6 | OK |
| 16 | 5301012000070007 | | O-RING 200X7 | 3 | OK |
| 17 | AH00000102 | | SPRING, VALVE | 6 | OK |
| 18 | AH160201011900 | | VALVE ASSY | 6 | OK |
| 19 | 530301011850070007 | | O-RING 185X7 | 3 | OK |
| 20 | AH130101051900 | | CLAMP, PISTON ROD | 3 | OK |
| 21 | AH1301010516 | | PISTON ROD | 3 | OK |
| 22 | AH1301010520 | | END COVER, LINER | 3 | OK |
| 23 | AH130101051500 | | LINER LOCK | 3 | OK |
| 24 | AH1301010514 | | FLANGE, LINER | 3 | OK |
| POWER GEAR END SPARES |
| 1 | AH36001.02.20.00 | 7602-020137 | Main bearing | 2 | OK |
| 2 | AH37001-01.01/01C | 6316-0042-00 | Main bearing end cover | 2 | OK |
| 3 | AH37001-01.02 | 6317-0177-00 | Main bearing sleeve(R) | 1 | OK |
| 4 | AH36001-02.03 | | Seal ring | 2 | OK |
| 5 | AH36001-02.04 | 6316-0070-00 | Inner snap ring | 1 | OK |
| 6 | AH37001-01.03 | 6316-0034-00 | Outer snap ring | 3 | OK |
| 7 | AH37001-01.04 | 6316-0023-00 | Connecting rod | 3 | OK |
| 8 | AH36001-02.07/AH3602-02.03 | 6316-0071-00 | Fixing ring(Ⅰ) | 1 | OK |
| 9 | AH36001-02.08A.00 | 6316-0021-01 | CRANKSHAFT | 1 | OK |
| 10 | AH36001-02.09/AH36002-02.05 | 6316-0076-00 | Fixing ring(Ⅱ) | 1 | OK |
| 11 | AH37001-01.05D.00 | 6316-0030-00 | Bull Gear | 1 | OK |
| 12 | AH36001-02.11A | | Bolt M39×3-69×130 | 12 | OK |
| 13 | AH36001-02.12 | 6316-0091-00 | Spacer main bearing | 2 | OK |
| 14 | AH37001-01.06 | 6317-0028-00 | Main bearing sleeve(L) | 1 | OK |
| 15 | AH37001-01.07 | 6316-0032-00 | | 3 | OK |
| 16 | AH36001-02.15 | 6316-0031-00 | | 3 | OK |
| 17 | AH36001-02.16C | 6316-0077-00 | Main bearing bolt | 6 | OK |
| 18 | AH37001-01.08.00 | 7602-021268 | Bearing, Eccentric | 3 | OK |
| 19 | AH37001-01.09.00 | 7602-020137 | Bearing, Main | 2 | OK |
| 20 | Pinion shaft | 6316-0027-00 | Pinion shaft | 1 | OK |
| 21 | Wear plate | 6301-0002-00 | Wear plate | 2 | OK |
| 22 | End cover | 6317-0103-00 | End cover | 2 | OK |
| 23 | Seal gasket | 7502-0840-00 | Seal gasket | 2 | OK |
| 24 | Seal gasket | 7502-0841-00 | Seal gasket | 2 | OK |
| 25 | | 6317-0024-00 | | 3 | OK |
| 26 | Oil seal | 7602-213118 | Oil seal | 2 | OK |
| 27 | AH36001-04.01A | 6316-0022-00 | Crosshead | 3 | OK |
| 28 | AH36001-04.02 | 6316-0181-00 | Top guidance | 3 | OK |
| 29 | AH36001-04.05 | 6397-0544-00 | Stuffing box | 3 | OK |
| 30 | AH36001-04.08.00A | 7602-213276 | Double lips oil seal | 6 | OK |
| 31 | AH36001-04.10 | 6316-0093-00 | Sheet | 3 | OK |
| 32 | AH36001-04.11 | 6316-0028-00 | Crosshead extension rob | 3 | OK |
| 33 | AH36001-04.12A | 6316-0087-00 | Crosshead pin | 3 | OK |
| 34 | AH36001-04.13 | 6397-0546-00 | Locking spring | 3 | OK |
| 35 | AH36001-04.15 | | Washer | 3 | OK |
| 36 | AH36001-04.17 | 6316-0182-00 | Low guidance | 3 | OK |
| 37 | AH36001-04.18 | 6316-0026-00 | Baffle & crosshead pin | 3 | OK |
| MISSION "L" MODULE FOR NATIONAL 12-P-160 (NEW STYLE) FLUID END MODULE & ACCESSORIES |
| | | | | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | 8476-4A | FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22) | 3 |
| 1 | 8476-6S | FEM12PSUCSWNS | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 |
| 2 | 8476-5D | FEM12PDISSWNS | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 |
| 3 | 4018-17 | 12PDSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-95 | 2408029 | STUD, POWER END | 30 |
| 6 | | 6300220 | NUT, POWER END STUD | 30 |
| 7 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 8 | | 6300240 | NUT, THREADED RING STUD | 72 |
| 9 | /8488-5 | 6511416 | PIN, DOWELL | 6 |
| 10 | 4017-65 | PEP75 | CAPSCREW, LINER RETAINER FLANGE | 18 |
| 11 | /8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 13 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 14 | 6576 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 15 | 4676-6A | 12PVCASSYSWNS | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 |
| 15a | | 12PVCSWNS | PLUG, VALVE COVER | 6 |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 |
| 18 | P-119 | 7207119 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4776R | 12PVGASWNS | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
| 20 | 4700-I | PZ789VGI* | BUSHING, VALVE GUIDE | 6 |
| 21 | 4016-98 | 50C125KFCYB | SCREW, VALVE GUIDE | 12 |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 |
| 24 | /8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 |
| 25 | /2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER AND DISCHARGE CONNECTOR | 4 |
| 26 | /8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | /2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR(W /LOCKWASHER) | 16 |
| 29 | /8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) | 4 |
| MISSION "L" MODULE FOR IDECO T-1300/T-1600 FLUID END MODULE & ACCESSORIES |
| | | | | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | 8407-7A | FEMT1316ASSYSW | ASSY, FLUID END MODULE COMPLETE (INCLUDES ITEMS: 1 - 22) | 3 |
| 1 | 8407-7D | FEMT1316DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-11) | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 5, 6) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | 0-7601-0630-17 | NUT, DISCHARGE TO SUCTION MODULE STUD AND POWER FRAME STUD | 18 |
| 5 | /4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | 6300200 | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | 80711011 | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 9 | | 0-7601-0630-24 | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | /8488-5 | 6511416 | PIN, DOWELL | 6 |
| 11 | 2988 | 1290344 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 12 | /8407-10 | T1316WPSW | PLATE, LINER WEAR | 3 |
| 13 | 6407 | T1316LRFLGSW | FLANGE, LINER RETAINER | 3 |
| 14 | 6507 | T1316LLNSW | NUT, LINER LOCK | 3 |
| 15 | P-129 | 7207129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 16 | 4016-99 | PEP73 | CAPSCREW, VALVE GUIDE | 12 |
| 17 | 4700-I | PZ789VGI* | BUSHING, VALVE GUIDE | 6 |
| 18 | 4775-2R | EMSF1000VGASW | GUIDE, VALVE (INCLUDES ITEM 18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | PLUG, VALVE (INCLUDES ITEMS 17-19) | 6 |
| 20 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 21 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 22 | 568-339 | 99609339 | GASKET, DISCHARGE MANIFOLD | 3 |
| 23 | 568-447 | 99609447 | GASKET, SUCTION MANIFOLD | 3 |
| 24 | 4017-59 | PEP84 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | | PEP65 | WASHER, LOCK | 24 |
