| CONTINENTAL EMSCO FB-1300, FB-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: EMSCO INDEX | |
| 1 | | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 |
| 1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
| 2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
| 3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
| 4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
| 5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
| 6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
| 12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
| 16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 23 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |
| EMSCO | | | FB-1600 | | | | 7 x 12 | |

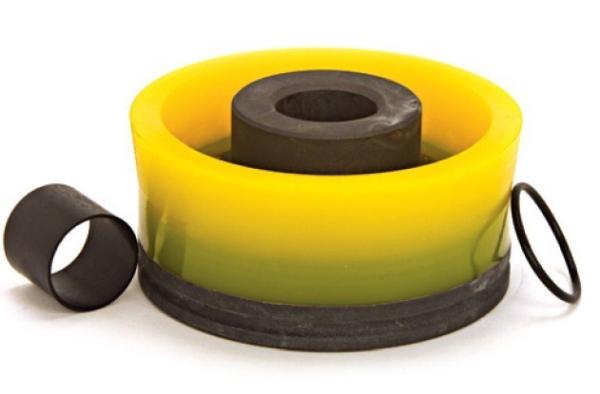

| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | | | BLUE LIGHTNING | GREEN DUO | WHITE LIGHTNING | SUPREME | WHITE LIGHTNING | SUPREME |
| 4" | 07499400 | 05499400 | 07916800 | 07211001 | MB40-15 | 1502052 | | 012180170 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07499450 | 05499450 | 07916800 | 07211001 | MB44-15 | 1502054 | 012180197 | 012180196 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07499500 | 05499500* | 07916800 | 07211001 | MB50-15 | 1502056 | 012180254 | 012180253 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07499550 | 05499550* | 07916800 | 07211001 | MB54-15 | 1502058 | 012180338 | 012180337 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07499600 | 05499600* | 07916800 | 07211001 | MB60-15 | 1502060 | 012180395 | 012180394 | 015180269 | 015180268 |
| 6 1/4" | | 05499625* | 07916800 | 07211001 | MB62-15 | 1502061 | 012180494 | 012180493 | 015180285 | 015180284 |
| 6 1/2" | 07499650 | 05499650* | 07916800 | 07211001 | MB64-15 | 1502062 | 012180536 | 012180535 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07499700 | 05499700* | 07916800 | 07211001 | MB70-15 | 1502064 | 012180619 | 012180618 | 015180343 | 015180342 |
| | | | | | | | | | | |
| | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |

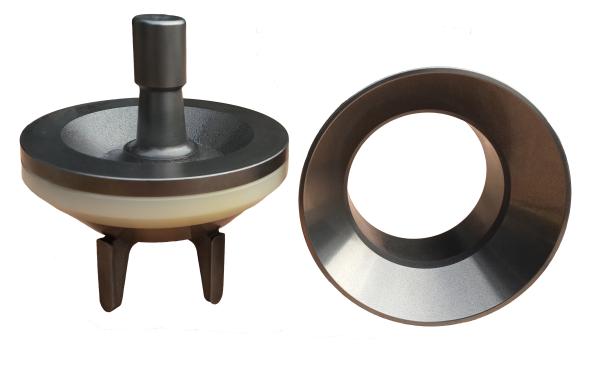

| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | OEM URETHANE | L STYLE | L STYLE URETHANE | L STYLE W.L. |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916741 | 07211006 | 07207129 | 07211007 | 07213007 |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | | 07916801 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Wear Plate | 07916800 | 07211001 | 1290344 | 07211023 | 07213023 |
| SEAT | 9702504 | 9702504 | 061101507 | | Liner Retention Systems | OEM | MISSION L |
| SPRING | 055213417 | 055213417 | 055413397 | 2 1/2 guide | Blak-JAK LOK-CEL | 80500105 | 80500106 |
| SPRING-Stainless | | | 055403257 | | Blak-JAK Hydra-Cell | | |
| INSERT-Urethane | 9705228 | PFO7I | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | EMSFEMFB1300CA | FEMFB13ASSYSW |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | FEMFB13DISSW |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | Wear Plate Puller L module | Suction Module Studded | | FEMFB13SUCSW |
| Puller Head | 8401985 | 8401985 | 181235300 | MSK2015 | One Piece OEM Style Studded | EMSFEMFB1300 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assy | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp Std. | Clamp W/Flush | Pony Rod Seal |
| 07913077 | 1 Piece | | 07208502 | 1551703 | | | 005402052 | PP601316 | 80701023 | 07209110 |
| 07913077 | 2 Piece | 2095002 | 07208502 | HT204A | 2145B | 10305203 | 005402052 | PP601316 | 80701023 | 07209110 |
National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
| MISSION "L" MODULE FOR EMSCO FB-1300, FB-1600 | | | | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| | | FEMFB13ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1 - 27) | 3 |
| 1 | 8490-1D | FEMFB13DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS:1, 3-11) | 3 |
| 2 | 8490-2S | FEMFB13SUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 2, 5, 6, & 27) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789GPFSN | NUT, THREADED RING STUD | 72 |
| 7 | 4016-9 | EMSFB13PFSSW | STUD, POWER FRAME | 18 |
| 8 | | EMSF1000PFSN | NUT, POWER FRAME STUD | 18 |
| 9 | 4017-36 | PEP80 | CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) | 24 |
| 10 | 4017-46 | FB1300DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 14 | 8422-3 | EMSF1000ARSW | RING, LINER RETAINER PILOT | 3 |
| 15 | 8490-3 | EMSFB13WPSW | PLATE, LINER WEAR | 3 |
| 16 | 6490-3 | EMSFB13LRPSW | FLANGE, LINER RETAINER | 3 |
| 17 | 6590-1 | EMSFB13LLSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4016-99 | PEP73 | CAPSCREW, VALVE GUIDE | 12 |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 21 | 4775-2R | EMSFB13VGASW | GUIDE, VALVE (INCLUDES ITEMS 20, 21) | 6 |
| 22 | 4675-2A | EMSFB13VCASW | PLUG, VALVE COVER (INCLUDES ITEMS 19-22) | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 568-343 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 18 |
| | 6278-25 | HT204A | ROD, PISTON (INCLUDES 10305203 STUD) NOT SHOWN | 3 |
| | 6284-1 | 2145B | ROD, SUB (NOT SHOWN) | 3 |
| | 1290-2 | 10305203 | STUD, CONNECTING (NOT SHOWN) | 3 |
| | | 07924530 | MODULE SEAL KIT: (KIT INCLUDES TWO VALVE COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, WEAR PLATE GASKET.) | 3 |
| CONTINENTAL EMSCO FB-1300, FB-1600 | | | | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| 1 | 0-6316-0325-00 | EMSFEMFB1300CA | FLUID END MODULE COMPLETE ASSY. (ITEMS 1-22, 24- 28) | 3 |
| 1A | 0-6316-0357-00 | EMSFEMFB1300 | FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 4A, 5, 6, 7, & 28) | 3 |
| 2 | | EMSFB13LCS | STUD, MODULE TO LINER CLAMP | 36 |
| 3 | 0-7601-0610-18 | PEP53 | LINER CLAMP STUD NUT | 36 |
| 4 | 0-7507-2201-00 | EMSFB13PFS | POWER FRAME STUD | 18 |
| 4A | 0-7507-2210-00 | EMSFB13TRS | STUD, MODULE TO CYLINDER | 18 |
| 5 | 0-7601-0630-17 | EMSF1000PFSN | NUT (FOR ABOVE) | 48 |
| 6 | 0-7507-2108-00 | EMSF1000DMS | STUD, MODULE TO DISC. MANIFOLD | 12 |
| 7 | 0-7601-0630-24 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 0-6316-0354-00 | EMSFB13LVGA | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 9 | 0-6316-0096-00 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 10 | 0-6316-0360-00 | EMSFB13BOLT | LOCKBOLT, LOWER VALVE GUIDE | 3 |
| 11 | 0-6316-0363-00 | EMSFB13AR | ALIGNMENT RING | 3 |
| 12 | 0-6316-0369-00 | 07916801 | GASKET, HEAD SEAL | 3 |
| 13 | 0-6316-0364-90 | EMSFB13CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 14 | 0-6316-0361-00 | EMSFB13CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 15 | 0-6316-0362-00 | EMSFB13CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 16 | 0-6316-0092-00 | 07916741 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 17 | 0-7501-0051-00 | PEP79 | SCREW, RETAINER UPPER) | 12 |
| 18 | 0-6397-0603-00 | EMSRETAINER | PLATE, RETAINER (UPPER) | 3 |
| 19 | 0-6397-0575-00 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 20 | 0-6316-0039-00 | EMSFB13CAP | COVER, VALVE POT | 3 |
| 21 | 0-6316-0373-00 | 07916800 | GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 22 | 0-6316-0365-00 | EMSFB13WP | PLATE, WEAR | 3 |
| 23 | 0-6316-0373-00 | 07916800 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 24 | 0-6316-0366-00 | EMSFB13LTR | RING, LINER THREADED | 3 |
| 25 | 0-6316-0367-20 | EMSFB13LL | LINER LOCK | 3 |
| 26 | 0-7602-1600-25 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 27 | 0-7602-1600-61 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 28 | 0-7601-0333-30 | | SUCTION MANIFOLD CAPSCREW (NOT SHOWN) | |
| | | | | |
| | | 07924504 | MODULE SEAL KIT: CONSISTING OF SUCTION MANIFOLD O RING, DISCHARGE MANIFOLD O RING, CYLINDER HEAD GASKET, VALVE COVER GASKET, & WEAR PLATE GASKET | 3 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| | 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
| | | | |
| | 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | |
| | |
| | | | |
| | | | |
| SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING |
| PISTONS LINERS | LINER SEALS |
| SIZE | FAIL-SAFE | DUAL-DURO® | BLACK CAT | GRAYLOY® | ZIRCONIA | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 76BBC | 1376G06 | | 2930-06 | 2930-06U |
| 4 1/4" | 77BFS | 77BDD | 77BBC | 1376G07 | | 2930-07 | 2930-07U |
| 4 1/2" | 78BFS | 78BDD | 78BBC | 1376G08 | 1376ZIR08 | 2930-08 | 2930-08U |
| 4 3/4" | 79BFS | 79BDD | 79BBC | 1376G09 | 1376ZIR09 | 2930-09 | 2930-09U |
| 5" | 81BFS | 81BDD | 81BBC | 1376G1 | 1376ZIR1 | 2930-1 | 2930-1U |
| 5 1/4" | 82BFS | 82BDD | 82BBC | 1376G2 | | 2930-2 | 2930-2U |
| 5 1/2" | 83BFS | 83BDD | 83BBC | 1376G3 | 1376ZIR3 | 2930-3 | 2930-3U |
| 5 3/4" | 84BFS | 84BDD | 84BBC | 1376G4 | 1376ZIR4 | 2930-4 | 2930-4U |
| 6" | 85BFS | 85BDD | 85BBC | 1376G5 | 1376ZIR5 | 2930-5 | 2930-5U |
| 6 1/4" | 86BFS | 86BDD | 86BBC | 1376G6 | 1376ZIR6 | 2930-6 | 2930-6U |
| 6 1/2" | 87BFS | 87BDD | 87BBC | 1376G7 | 1376ZIR7 | 2930-7 | 2930-7U |
| 6 3/4" | 88BFS | 88BDD | 88BBC | 1376G8 | | 2930-8 | 2930-8U |
| 7" | 89BFS | 89BDD | 89BBC | 1376G9 | 1376ZIR9 | 2930-9 | 2930-9U |
| 7 1/4" | 91BFS | 91BDD | 91BBC | 1376G10 | 1376ZIR10 | 2974-11 | 2974-11U |
| 7 1/2" | 92BFS | 92BDD | 92BBC | 1376G11 | | 2974-11 | 2974-11U |
SOUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 5000 PSI | A-1700-PT / A-1400-PT | 7-1/2” X 12” / 10” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| | 8488-1A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39) | |
| 1 | 1388-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2974-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) | 3 |
| 3 | 8488-4 | WEARPLATE | 3 |
| 4 | 2974-1 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1290HW25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290W2 | PISTON ROD CONNECTING STUD (WITH WATER HOLE) | 3 |
| 10 | 1290HW1 | SUB ROD | 3 |
| 11 | 1290CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4018-94 | ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G90 | PONY ROD | 3 |
| 13 | | VALVE | 6 |
| 14 | | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | | VALVE SPRING | 6 |
| 16 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS) | 1 |
| | 4475-1A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24) | |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-1A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U) | 6 |
| 21 | 4775R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 23 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 25 | 4016-96 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 12 |
| 26 | 4017-4 | LINER RETAINER FERRY HEAD CAP SCREW | 24 |
| 27 | 6488-1 | LINER RETAINER FLANGE | 3 |
| 28 | 6588-1 | LINER RETAINER NUT (FOR LARGE BODY LINER) | 3 |
| 28A | 8488-7 | LINER RETAINER SET SCREW | 9 |
| 29 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) | 18 |
| 30 | 4018-70 | SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER) | 24 |
| 31 | 8588-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 32 | 80102003 | SUCTION MANIFOLD GASKET | 3 |
| 33 | 8488-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 35 | 8488-5 | DOWEL PIN | 6 |
| 36 | 2988 | MODULE GASKET | 1 |
| 37 | 8388A | DISCHARGE MANIFOLD | 3 |
| 38 | 568-345 | DISCHARGE MANIFOLD GASKET | 12 |
| 39 | 4016-3 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT) | |
SOUTHWEST 8488-25A FLUID END FOR
OILWELL A-1700-PT/A-1400-PT
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 PSI | A-1700-PT / A-1400-PT | 7-1/2” X 12” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| | 8488-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36) | |
| 1 | 1388-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2974-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE) | 3 |
| 3 | 8488-28 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 9 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1290HW25 | PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290W2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 1290HW1 | SUB ROD | 3 |
| 11 | 1290CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4018-94 | ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G90 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | THREADED FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) | 6 |
| 21 | 4788R-25 | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 25 | 4020-5 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 12 |
| 26 | 6588-1 | LINER RETAINER NUT | 3 |
| 27 | 8488-7 | LINER RETAINER CAPSCREW | 9 |
| 28 | 6488-25 | LINER RETAINER FLANGE | 3 |
| 29 | 4016-80 | LINER RETAINER SOCKET HEAD CAP SCREW | 24 |
| 30 | 4020-4 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-70 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8588-50A | SUCTION MANIFOLD | 1 |
| 33 | 80102003 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8488-26 | SUCTION MODULE | 3 |
| 35 | 8488-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8388-25A | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 39 | 568-445 | “O” RING – WEAR PLATE O.D. RETAINER | 3 |
| 40 | 2932 | PISTON BUSHING (1 5/8 TO 1 ½ DIA.) | 3 |
| | | | |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| | 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | GARDNER DENVER PZ11/10 | 6 ¾” X 11” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| | 8477-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39) | |
| 1 | 1367Y-XX 1367AY-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX) LINER 6 ¼” THRU 6 ¾” | 3 |
| 2 | 2930-XXU** 2974-XXU** | LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾” | 3 |
| 3 | 8477-29 | ALIGNMENT RING | 3 |
| 4 | 8477-30 | WEARPLATE (REPLACES WEARPLATE NO. 8477-28) | 3 |
| 5 | 2988U** | WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL | 9 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 7 | 568-225 | PISTON O-RING | 3 |
| 8 | 6278-25 | PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 10 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 11 | 6279-1 | SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) | 3 |
| 12 | 1277CW | ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) | 3 |
| 12A | 1200120 | SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 12B | 4018-96 | BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12C | 1200H30 | HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) | 3 |
| 13 | 1200G77 | PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) | 3 |
| 14 | | VALVE | 6 |
| 15 | | VALVE INSERT | 6 |
| 16 | | VALVE SPRING | 6 |
| 17 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 |
| 18 | 4488-25 | VALVE COVER FLANGE | 6 |
| 19 | 4588-25 | SCREW GLAND | 6 |
| 20 | 4688-25 | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) | 6 |
| 21 | P115 | HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) | 6 |
| 22 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 26 | 4019-46 | POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 27 | 6477-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-45 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 29 | 6577-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-44 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4017-77 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8577-25 | SUCTION MANIFOLD | 1 |
| 33 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8477-26 | SUCTION MODULE | 3 |
| 35 | 8477-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8377-27 | DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) | 1 |
| 38 | 4019-45 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 12 |
