FB1300/1600 Mud Pump
| "L" MODULE FOR EMSCO FB-1300, FB-1600 | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION |
| | | FEMFB13ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1 - 27) | 3 |
| 1 | 8490-1D | FEMFB13DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS:1, 3-11) | 3 |
| 2 | 8490-2S | FEMFB13SUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 2, 5, 6, & 27) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789GPFSN | NUT, THREADED RING STUD | 72 |
| 7 | 4016-9 | EMSFB13PFSSW | STUD, POWER FRAME | 18 |
| 8 | | EMSF1000PFSN | NUT, POWER FRAME STUD | 18 |
| 9 | 4017-36 | PEP80 | CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) | 24 |
| 10 | 4017-46 | FB1300DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 14 | 8422-3 | EMSF1000ARSW | RING, LINER RETAINER PILOT | 3 |
| 15 | 8490-3 | EMSFB13WPSW | PLATE, LINER WEAR | 3 |
| 16 | 6490-3 | EMSFB13LRPSW | FLANGE, LINER RETAINER | 3 |
| 17 | 6590-1 | EMSFB13LLSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | 4016-99 | PEP73 | CAPSCREW, VALVE GUIDE | 12 |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 21 | 4775-2R | EMSFB13VGASW | GUIDE, VALVE (INCLUDES ITEMS 20, 21) | 6 |
| 22 | 4675-2A | EMSFB13VCASW | PLUG, VALVE COVER (INCLUDES ITEMS 19-22) | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 568-343 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 18 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000
Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600
Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7
Emsco F-800/F-1000 Mission L Gardner Denver PZ-8
Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9
Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11
Emsco FC-2200 Mission L Ideco T-1300/T-1600
Gardner Denver PAH Mission L National 9-P-100
Gardner Denver TEE Mission L National 10-P-130
Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160
Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New Style"
Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell A-850-PT/A-1100-PT
Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT
Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth TPK-1300/TPK-1600
Ideco T-500
Ideco T-800/T-1000
Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working Pressure)
National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI Working Pressure)
National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI Working Pressure
National 9-P-100 Tapr-Lok
National 9-P-100 Fast Change
National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change
National 12-P-160 Tapr-Lok
National 12-P-160 Fast Change
National 12-P-160 7500 PSI
National 14-P-220
Oilwell A-850/1100/1400/1700-PT
National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
| MISSION "L" FOR NATIONAL 12-P-160 (7500 PSI WORKING PRESSURE) | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES (INCLUDING DISCHARGE MANIFOLD) |
| ITEM # | MISSION PART # | DESCRIPTION |
| | 80704032 | FLUID END ASSEMBLY COMPLETE INCLUDES ITEMS (1-27) ENOUGH FOR 1 PUMP | 1 |
| 1 | 80704000 | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1,9,10,13,14,18,19,20,& 27) | 3 |
| 2 | 80704001 | MODULE, SUCTION STUDDED (INCLUDES ITEMS 2,3,4,18,&19) | 3 |
| 3 | 80704002 | STUD, (DISCHARGE TO SUCTION MODULE) | 24 |
| 4 | PEP55 | NUT, HEAVY HEX | 24 |
| 5 | 80704003 | THREADED RING | 6 |
| 6 | 80704004 | THREADED CAP | 6 |
| 7 | 80704005 | VALVE COVER (INCLUDES 11,12,& 17) | 6 |
| 8 | 80704006 | DISCHARGE MANIFOLD (7500 PSI WORKING PRESSURE) | 1 |
| 9 | 80702011 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | IDT800TRSN | NUT,HEX HEAVY | 12 |
| 11 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 12PVGASW | GUIDE, VALVE | 6 |
| 13 | 8P80TRSN | NUT, POWER FRAME STUD | 30 |
| 14 | PEP75 | CAPSCREW, LINER RETAINER | 18 |
| 15 | 12PLASW | RETAINER, LINER FLANGE | 3 |
| 16 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 17 | 7007303 | SCREW, VALVE GUIDE | 12 |
| 18 | 6300240 | NUT, HEAVY HEX FOR THREADED RING | 72 |
| 19 | 80700014 | STUD, THREADED RING | 72 |
| 20 | PEP70 | PIN, DOWELL | 6 |
| 21 | 1290344 | SEAL, DISCH TO SUC & WEARPLATE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 22 | 07207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 23 | 99609235 | SEAL, DISCHARGE MANIFOLD | 3 |
| 24 | 1540851 | SEAL, SUCTION MANIFOLD | 3 |
| 25 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 3 |
| 26 | PP6021260SW | WEARPLATE | 3 |
| 27 | NAT12P160PFS | STUD, POWER FRAME | 30 |
| MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | |
| | 8404-25A | | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) | 3 |
| 1 | 8404-26 | | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 |
| 2 | 8404-27 | | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 |
| 3 | 4019-61 | | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4017-33 | | STUD, POWER END | 30 |
| 6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
| 7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 9 | 8488/5/1- | 6511416 | PIN, DOWELL | 6 |
| 10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
| 11 | 8490-28 | | PLATE, LINER WEAR | 3 |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
| 14 | 6490-25 | | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 15 | 6590-25 | | NUT, LINER RETAINER | 3 |
| 16 | 4690-25A | | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 |
| 17 | | | PLUG, VALVE COVER | 6 |
| 18 | 4488-25 | | RING, THREADED (THREADED FLANGE) | 6 |
| 19 | 4588-25 | | CAP, THREADED (SCREW GLAND) | 6 |
| 20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 21 | 4788R-25 | | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
| 22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
| 23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
| 24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 8376-25MOD | | MANIFOLD, DISCHARGE | 1 |
| 27 | 2988 | 1290344 | SEAL, DISCHARGE MANIFOLD | 3 |
| 28 | 8590/6/1- | | SUCTION MANIFOLD | 1 |
| Item | Description | Part Number | Type of pump |
| 1 | Suction Manifold | T270001037 T028500429 | 12T1600 mud pump |
| 2 | Crosshead | T885001035-2 | 12T1600 mud pump |
| 3 | Crankshaft | T840001054 | 12T1600 mud pump |
| 4 | Bull Gear | T207001063 | 12T1600 mud pump |
| 5 | Pinion Shaft | T348001061 | 12T1600 mud pump |
| 6 | Connecting Rods | T237001057 | 12T1600 mud pump |
| 7 | Discharge Module | T669201195 | 12T1600 mud pump |
| 8 | Suction Module | T066920306 | 12T1600 mud pump |
| 9 | Connector, Discharge | T007601020 | 12T1600 mud pump |
| 10 | Bushing, Discharge | T000301034 | 12T1600 mud pump |
| 11 | Flange | T474001057 | 12T1600 mud pump |
| 12 | Valve Cover | T536001111- | 12T1600 mud pump |
| 13 | End Plate | T551001033 | 12T1600 mud pump |
| 14 | Seal | T041003953 | 12T1600 mud pump |
| 15 | Wear Plate | | 12T1600 mud pump |
| 16 | 10“-150# Blind Flange | T940001090 | 12T1600 mud pump |
| 17 | Liner 7-1/2" | 01917452 | 12T1600 mud pump |
| 18 | Liner 7" | 01917450 | 12T1600 mud pump |
| 19 | Liner 6-3/4" | 01917449 | 12T1600 mud pump |
| 20 | Liner 6-1/2" | 01917448 | 12T1600 mud pump |
| 21 | Liner 6-1/4" | 01917447 | 12T1600 mud pump |
| 22 | Liner 5-1/2" | 01917446 | 12T1600 mud pump |
| 23 | Liner 5" | 01917639 | 12T1600 mud pump |
| 24 | Pistons | | 12T1600 mud pump |
| 25 | Valves & Seats | | 12T1600 mud pump |
| 26 | Liner Gaskets | | 12T1600 mud pump |
| Item | Description | Part No. |
| | Complete Assembly | 8490-2A |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| 1 | | FEMPZ789CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-22) | 3 | OK |
| 1A | 200PZL029F | FEMPZ789 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-9) | 3 | OK |
| | 205PZL029D | | | | OK |
| 1B | | 80721012 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-9) | | OK |
| 2 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 | OK |
| 3 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 48 | OK |
| 4 | 79L73 | PZ789GPFS | STUD, FRAME | 12 | OK |
| 5 | 50AQ30 | PZ789PFSN | NUT, FRAME STUD | 12 | OK |
| 6 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 | OK |
| 7 | 50B34 | PZ789TRSN | NUT, VALVE COVER STUD | 48 | OK |
| 8 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 | OK |
| 9 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 | OK |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 | OK |
| 11 | 2011862 | 7916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | OK |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 | OK |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 | OK |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED (2 1/2" THICK) | 6 | OK |
| 14A | | PZ789HFLG | RING, HEAVY VALVE COVER THREADED (3" THICK) | 6 | OK |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 | OK |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 | OK |
| 17 | 2011700 | PZ789LVG | GUIDE, LOWER VALVE SUCTION | 3 | OK |
| 18 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 | OK |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 | OK |
| 20 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 | OK |
| 21 | 25G41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 | OK |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 | OK |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 | OK |
| 24 | 75A74N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 | OK |
| 25 | | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 | OK |
| | | 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | OK |

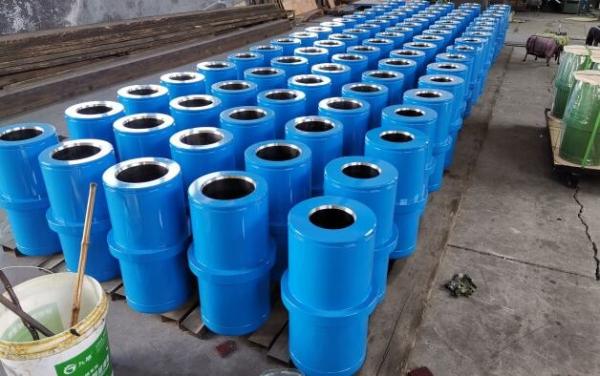

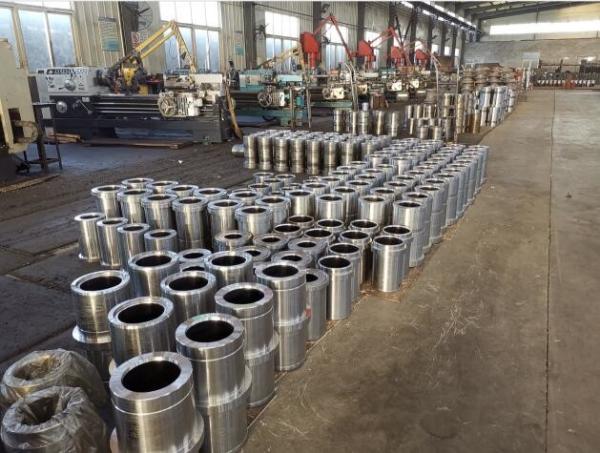

| Liners, Pistons and Valves |
| 1 | 202PZL482A | PZ7/8/9 | FLUID VALVE ASSY | | OK |
| 2 | 202PZL039 | PZ7/8/9 | SEAT, THREE WEB | | OK |
| 3 | 2010512 | PZ7/8/9 | INSERT, VALVE | | OK |
| 4 | 201PZG456 | PZ7 | LINER 4-1/2" | | OK |
| 5 | 200PZG456 | PZ7 | LINER 5" | | OK |
| 6 | PY13995 | PZ7 | LINER 5.5" | | OK |
| 7 | PY13960 | PZ7 | LINER 6" | | OK |
| 8 | PY13965 | PZ7 | LINER 6.5" | | OK |
| 9 | PY13970 | PZ7 | LINER 7" | | OK |
| 10 | 206PZJ456 | PZ8/9 | LINER 4" | | OK |
| 11 | 205PZJ456 | PZ8/9 | LINER 4-1/2" | | OK |
| 12 | 204PZJ456 | PZ8/9 | LINER 5" | | OK |
| 13 | 203PZJ456 | PZ8/9 | LINER 5.5" | | OK |
| 14 | 202PZJ456 | PZ8/9 | LINER 6" | | OK |
| 15 | 201PZJ456 | PZ8/9 | LINER 6.5" | | OK |
| 16 | 2067PZJ456 | PZ8/9 | LINER 7" | | OK |
| | | | | | |
| GARDNE DENVER PZ7/8/9 POWER END SPARES |
| 1 | 66D13 | PZ-7 | MAGNETIC PLUG | | OK |
| 2 | 12W75 | PZ-7 | PINION BEARING (JACK SHAFT BEARING) | | OK |
| 3 | 12BA20 | PZ-7 | MAIN BEARING (ECCENTRIC) | | OK |
| 4 | 12BA18 | PZ-7 | BEARING, CONROD-ECCENTRIC | | OK |
| 5 | 74D18 | PZ-7 | RING RETAINER FOR CON ROD BEARING | | OK |
| 6 | 12BA19 | PZ-7 | BEARING ROLLER, CROSSHEAD PIN | | OK |
| 7 | PZ838 | PZ-7 | PIN LOCK | | OK |
| 8 | 200PZG309 | PZ-7 | CROSSHEAD SLIDE | | OK |
| 9 | 200PZG005 | PZ-7 | CROSSHEAD | | OK |
| 10 | 200PZG189 | PZ-7 | PIN-CROSSHEAD | | OK |
| 11 | 202PZG168 | PZ-7 | PLATE RETAINER, CROSSHEAD PIN | | OK |
| 12 | 300PZG839 | PZ-7 | ROD EXTENSION | | OK |
| 13 | 300PZL362 | PZ-7 | SEAL HOUSING -OIL STOP HEAD | | OK |
| 14 | 301PZL362 | PZ-7 | SEAL HOUSING -OIL STOP HEAD | | OK |
| 15 | 20011872 | PZ-7 | SEAL OIL | | OK |
| 16 | 25BC69N | PZ-7 | GASKET | | OK |
| 17 | SFXK840 | PZ-7 | BAFFLE | | OK |
| 18 | 40L17 | PZ-7 | GAUGE OIL LEVEL SIGHT | | OK |
| 19 | 27H11 | PZ-7 | GAUGE, OIL TEMPERATURE | | OK |
| 20 | 26C18 | PZ-7 | FILTER-OIL | | OK |
| 21 | 200PZG309 | PZ-7 | SLIDE-crosshead | | OK |
| 22 | 60DD39 | PZ-7 | SEAL, Oil | | OK |
| 23 | 200PZG309 | PZ-7 | PZ7 GUIDE, CROSSHEAD | | OK |
| 24 | 60DD39 | PZ-7 | PZ7 OIL SEAL | | OK |
| 25 | 200 PZG2555 | PZ-7 | ECCENTRIC | | OK |
| 26 | 200PZG280 | PZ-7 | GEAR-DRIVEN | | OK |
| 27 | 200PZG003 | PZ-7 | CONNECTING ROD | | OK |
| 28 | 200PZG069 | PZ-7 | MANIFOLD SUCTION | | OK |
| 29 | 200PZG071 | PZ-7 | MANIFOLD- DISCHARGE | | OK |
| 30 | 2012507 | PZ-8 | JACKSHAFT | | OK |
| 31 | 2009633 | PZ-8 | SEAL–OIL | | OK |
| 32 | 2012503 | PZ-8 | ECCENTRIC | | OK |
| 33 | 2012508 | PZ-8 | GEAR–DRIVEN | | OK |
| 34 | 2012506 | PZ-8 | CONNECTING ROD | | OK |
| 35 | 200PZH005 | PZ-8 | CROSSHEAD | | OK |
| 36 | 200PZH189 | PZ-8 | PIN–CROSSHEAD | | OK |
| 37 | 12W58 | PZ-8 | BEARING–ROLLER, Jackshaft | | OK |
| 38 | 12GF38 | PZ-8 | BEARING–ROLLER, Eccentric | | OK |
| 39 | 12W85 | PZ-8 | BEARING, Connecting Rod to Eccentric | | OK |
| 40 | 12BA44 | PZ-8 | BEARING–ROLLER, Crosshead Pin | | OK |
| 41 | 1PO183 | PZ-8 | ROD–EXTENSION | | OK |
| 42 | 2009634N | PZ-8 | GASKET, Oil Stop Head | | OK |
| 43 | 2012513 | PZ-8 | HEAD–OIL STOP | | OK |
| 44 | 1PZ371 | PZ-9 | JACKSHAFT | | OK |
| 45 | 60G242 | PZ-9 | SEAL–OIL | | OK |
| 46 | 2013705 | PZ-9 | ECCENTRIC | | OK |
| 47 | 1PZ180 | PZ-9 | GEAR–DRIVEN | | OK |
| 48 | PZ417 | PZ-9 | CONNECTING ROD | | OK |
| 49 | 200PZJ005 | PZ-9 | CROSSHEAD | | OK |
| 50 | PZ189 | PZ-9 | PIN–CROSSHEAD | | OK |
| 51 | PZ183 | PZ-9 | ROD–EXTENSION | | OK |
| 52 | 1PZ226 | PZ-9 | HEAD–OIL STOP | | OK |
| 53 | 12W60 | PZ-9 | BEARING–ROLLER, Jackshaft | | OK |
| 54 | 12GF36 | PZ-9 | BEARING–ROLLER, Eccentric | | OK |
| 55 | 12W84 | PZ-9 | BEARING, Connecting Rod to Eccentric | | OK |
| 56 | 12AM3 | PZ-9 | BEARING–ROLLER, Crosshead Pin | | OK |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 W/ WEAR PLATE FLUID END MODULE & ACCESSORIES |
| | | | | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | | FEMPZ789WPCA | ASSY, COMPLETE FLUID END MODULE W/ WEAR PLATE & SEAL (INCLUDES ITEMS 1-25) | 3 |
| 1 | | FEMPZ789WP | MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-25) | 3 |
| 2 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 3 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 48 |
| 4 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 5 | 50AQ30 | PZ789PFSN | NUT, FRAME STUD | 12 |
| 6 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 7 | 50B34 | PZ789TRSN | NUT, VALVE COVER STUD | 48 |
| 8 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 9 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 7916749 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED (2 1/2" THICK) | 6 |
| 14A | | PZ789HFLG | RING, HEAVY VALVE COVER THREADED (3" THICK) | 6 |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, LOWER VALVE SUCTION | 3 |
| 18 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | | PZ910WPINTL | PLATE, WEAR | 3 |
| 24 | | 20100019 | SEAL, WEAR PLATE | 3 |
| 25 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| 26 | 75A74N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 27 | | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK | 24 |
| | | 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 |
