| Part Inquiry for LEWCO-W2215 Cameron Mud Pump |
| Item | Part Number | Description | Qty. | Unit |
| 1 | ES331 | LINER WASH PUMP PACKING | 18 | Ea |
| 2 | EG199 | API ring gasket (BX-169SS) | 27 | Ea |
| 3 | EG197 | API ring gasket (BX-152SS) | 3 | Ea |
| 4 | EG163 | suction manifold gasket | 15 | Ea |
| 5 | B105281 | suction dampener/desurger | 3 | Ea |
| 6 | 108-0609 | stroke counter | 12 | Ea |
| 7 | 108-1054 | heat exchanger-liner wash | 3 | Ea |
| 8 | 108-1055 | heat exchanger-lube oil | 3 | Ea |
| 9 | 108-0764 | low presure switch | 3 | Ea |
| 10 | ES452 | low presure switch | 3 | Ea |
| 11 | 108-1324 | low presure switch | 3 | Ea |
| 12 | 108-1225 | v-belt | 6 | Ea |
| 13 | EG195 | mud pressure gauge | 3 | Ea |
| 14 | EG170 | crank case cover gasket | 888 | inch |
| 15 | A162209 | inspection cover gasket | 3 | Ea |
| 16 | A164103 | main bearing cover gasket | 6 | Ea |
| 17 | C164404 | cross head cover gasket | 6 | Ea |
| 18 | A164185 | inspection cover gasket (large) | 3 | Ea |
| 19 | 108-1095 | breather cap | 3 | Ea |
| 20 | A164191 | stroke counter bracket gasket | 3 | Ea |
| 21 | B164202 | eccentric bearing | 9 | Ea |
| 22 | EB119 | main (spherical roller) bearing | 6 | Ea |
| 23 | B164206 | main bearing shim set | 6 | Ea |
| 24 | A167244 | eccentric bearing shims | 6 | Ea |
| 25 | EB120 | pinion (cylinderical roller) bearing | 6 | Ea |
| 26 | ES194 | oil seal | 6 | Ea |
| 27 | A164505 | pinion bearing carrier gasket | 6 | Ea |
| 28 | B164402 | wrist pin bearing | 6 | Ea |
| 29 | C164323 | piston rod clamp | 18 | Ea |
| 30 | B164407 | baffle disc | 9 | Ea |
| 31 | A164453 | crosshead shim set | 9 | Ea |
| 32 | B164425 | diaphragm plate gasket | 9 | Ea |
| 33 | ES211 | stuffing box seal | 36 | Ea |
| 34 | A164415 | stuffing box gasket | 9 | Ea |
| 35 | E0175 | o-ring ( 2/343) | 9 | Ea |
| 36 | E0301 | o-ring ( 2/442) | 9 | Ea |
| 37 | A164705 | valve cover seal | 18 | Ea |
| 38 | A167708 | valve guide bushing | 36 | Ea |
| 39 | A167702 | wear plate seal | 18 | Ea |
| 40 | 816406 | wear plate seal | 9 | Ea |
| 41 | EV116 | valve spring | 36 | Ea |
| 42 | EV190 | valve seat | 36 | Ea |
| 43 | EV178 | valve | 36 | Ea |
| 44 | EL238 | liner (5") | 36 | Ea |
| 45 | EL220 | liner (5 1/2") | 36 | Ea |
| 46 | EL221 | liner (6") | 36 | Ea |
| 47 | EL222 | liner (6 1/2") | 36 | Ea |
| 48 | EL223 | liner (7") | 36 | Ea |
| 49 | EL224 | liner (7 1/2") | 36 | Ea |
| 50 | EL240 | liner (8") | 36 | Ea |
| 51 | EP159 | piston (5") | 36 | Ea |
| 52 | EP160 | piston (5 1/2") | 36 | Ea |
| 53 | EP117 | piston (6") | 36 | Ea |
| 54 | EP118 | piston (6 1/2") | 36 | Ea |
| 55 | EP150 | piston (7") | 36 | Ea |
| 56 | EP151 | piston (7 1/2") | 36 | Ea |
| 57 | EP152 | piston (8") | 36 | Ea |
| 58 | EP165 | piston (5") | 36 | Ea |
| 59 | EP114 | piston rubber(5 1/2") | 36 | Ea |
| 60 | EP115 | piston rubber (6") | 36 | Ea |
| 61 | EP116 | piston rubber (6 1/2") | 36 | Ea |
| 62 | EP147 | piston rubber (7") | 36 | Ea |
| 63 | EP148 | piston rubber(7 1/2") | 36 | Ea |
| 64 | EP149 | piston rubber (8") | 12 | Ea |
| 65 | EG132 | liner gasket (5") | 36 | Ea |
| 66 | EG138 | liner gasket (5 1/2") | 12 | Ea |
| 67 | EG139 | liner gasket(6") | 36 | Ea |
| 68 | EG140 | liner gasket(6 1/2") | 36 | Ea |
| 69 | EG136 | liner gasket(7") | 36 | Ea |
| 70 | EG142 | liner gasket (7 1/2") | 36 | Ea |
| 71 | EG144 | liner gasket (8") | 12 | Ea |
| 72 | EP194 | lube oil pump | 3 | Ea |
| 73 | 108-0054 | relief valve, 15 psi | 3 | Ea |
| 74 | 108-1088 | relief valve, 65 psi | 3 | Ea |
| 75 | 108-0135 | check valve | 3 | Ea |
| 76 | 108-1257 | flow switch | 6 | Ea |
| 77 | EG105 | pressure gauge, 0-60 psi | 6 | Ea |
| 78 | EG145 | pressure gauge | 6 | Ea |
| 79 | EV215 | charging valve | 6 | Ea |
| 80 | ES175 | stud 2.25 8UN 8.50 B7 | 36 | Ea |
| 81 | EM132 | heavy hex nut 8UN A194-2H | 36 | Ea |
| 82 | 002-1666 | hex bolt 1.000 8NC 2.00 G8 | 3 | Ea |
| 83 | 002-1544 | lock washer 1.000" | 3 | Ea |
| 84 | 108-0620 | stabilizer plate L-2010 | 3 | Ea |
| 85 | 108-0619 | stabilizer L-20 | 3 | Ea |
| 86 | EN137 | havy hex nut 1.125 7NC A194-2H | 24 | Ea |
| 87 | EC181 | bottom flange cap screw | 24 | Ea |
| 88 | 108-0656 | seal 429 BUNA 70 | 3 | Ea |
| 89 | ES174 | stud 1.125 7NC 6.5 B7 | 24 | Ea |
| 90 | EO190 | charging valve o-ring | 6 | Ea |
| 91 | 108-0065 | ring gasket BX-155S | 3 | Ea |
| 92 | B310066 | charging valve hose assembly | 3 | Ea |
| 93 | 108-0618 | buna-N bladder ( standard) | 6 | Ea |
| 94 | 108-1194 | hydrogenated nitrile bladder
(high temperature mud) | 6 | Ea |
| 95 | 108-1195 | Urthane bladder ( oil based mud) | 6 | Ea |

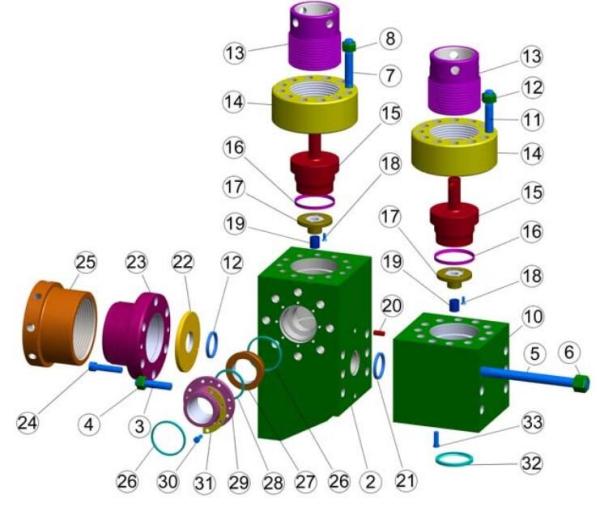

| OILWELL A-850PT A-1100PT, A-1400PT,& A-1700PT |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | Return To: Oilwell Index | |
| | | OWFEMA8517PTCA | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 10300181 | OWFEMA8517PT | FLUID END MODULE (STUDDED) -(INCLUDES ITEMS 1, 2-4, 5) | 3 |
| 2 | 4001892 | OWA8517PTDMS | STUD, DISCHARGE MANIFOLD | 12 |
| 3 | 75511754 | OWA8517PTDMSN | NUT 1 3/8-8 SF HVY HX | 12 |
| 4 | 49002837 | OWA8517PTPFS | STUD, FRAME 1 3/4-8 x 7 1/2 | 12 |
| 5 | 75510126 | PEP55 | NUT 1 3/4 -8 | 12 |
| 6 | 20100008 | 077170074203 | GASKET, LINER | 3 |
| 7 | 10300184 | PP602850 | PLATE, WEAR | 3 |
| 8 | 10300183 | OWA8517PTLA | ADAPTER, LINER | 3 |
| 9 | 10300185 | OWA8517PTLSR | RING, LINER SPACER | 3 |
| 10 | 10303092 | OWA8511PTLAN | NUT, LINER ADAPTER - FLA850-PT,A-1100PT | 3 |
| 10A | 10300182 | OWA1417PTLAN | NUT, LINER ADAPTER - FLA1400-PT, A-1700PT | 3 |
| 11 | 202000004 | OWVGI | BUSHING, VALVE GUIDE | 6 |
| 12 | 75632234 | | CAPSCREW 5/8-11X 1-1/4 SELF LOCKING HX HD HT | 24 |
| 13 | 10300004 | OWLV | GUIDE, VALVE | 6 |
| 14 | 10300011 | 077270076000 | GASKET, VALVE COVER | 6 |
| 15 | 10300005 | OWA8517PTCAP | COVER, VALVE | 6 |
| 16 | 99-609-345 | 99609345 | O RING (4 3/8 X 4 X 3/16 | 3 |
| 17 | 10300201 | 10300201 | GASKET | 3 |
| | 10300186 | OWA1417PTLCS | SLEEVE, LINER CENTERING F/A-1400/1700 PUMPS | |
| | 10303091 | OWA8511PTLCS | SLEEVE, LINER CENTERING F/A-850/1100PT PUMPS | |
| 18 | | | CAPSCREW, SUCTION MANIFOLD | |

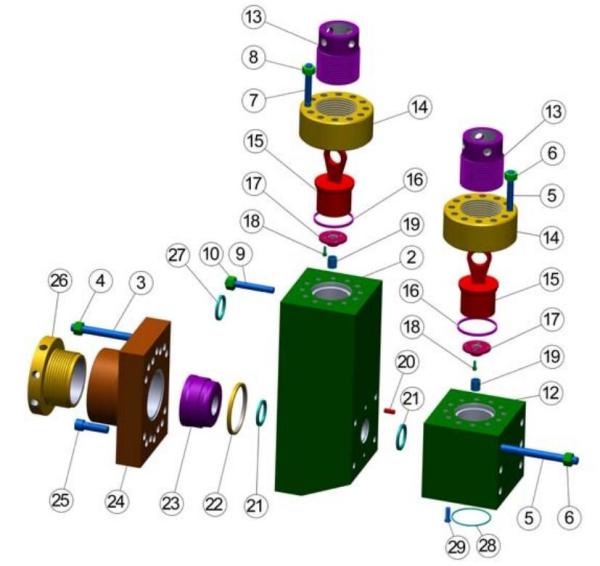

| GARDNER DENVER PZ-7, PZ-8, PZ-9 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO GARDNER DENVER INDEX | |
| 1 | | FEMPZ789CA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23) | 3 |
| 1A | 200PZL029F | FEMPZ789 | FLUID END MODULE STUDDED - (INCLUDES 1-9 & 24) | 3 |
| | 205PZL029D | | | |
| 02 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 03 | 50B36 | PZ789LCSN | NUT (FOR ABOVE) | 24 |
| 04 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 05 | 50AQ30 | PZ789GPFSN | NUT (FOR ABOVE) | 12 |
| 06 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 07 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 48 |
| 08 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 09 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 077670074900 | GASKET, VALVE COVER | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED | 6 |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, VALVE SUCTION | 3 |
| 19 | 95W2 | PZLVGAWASHER | WASHER, LOCK 1/2" 316SS | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 077070074701 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 078070028300 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| 24 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |

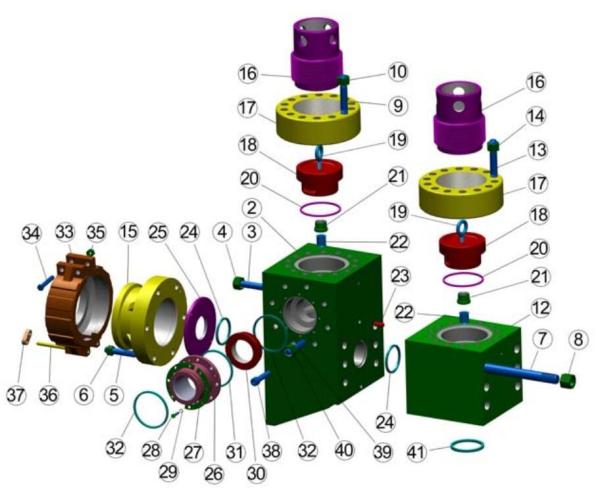

| MISSION "L" MODULE FOR PZ-10, PZ-11 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO GARDNER DENVER INDEX | |
| | | FEMPZ1011ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-26) | 3 |
| 1 | 8477-1D | FEMPZ1011DISSW | DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11) | 3 |
| 2 | 8477-2S | FEMPZ1011SUCSW | SUCTION MODULE, STUDDED - (INCLUDES ITEMS 2, 5, 6, 12 & 24) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-35 | PZ1011GPFSSW | STUD, POWER FRAME (SHORT) | 24 |
| 8 | | PZ789LCSN | NUT, POWER FRAME STUD | 48 |
| 9 | 4018-34 | PZ1011LCSSW | STUD, LINER RETAINER (LONG) | 24 |
| 10 | 4017-5 | PZ789DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 3 |
| 14 | 2930-08 | TOM JORDAN | SEAL, WEAR PLATE | 3 |
| 15 | 8477-3 | PZ1011WPSW | WEAR PLATE | 3 |
| 16 | 6477 | PZ1011LC | LINER RETAINER FLANGE | 3 |
| 17 | P-129 | 07207129 | VALVE COVER SEAL | 6 |
| 18 | 4018-88 | PEP73 | VALVE GUIDE SCREW | 12 |
| 19 | 4775R | OWA17VGASW | VALVE GUIDE (INCLUDES ITEMS 19, 23) | 6 |
| 20 | 4675-1A | OWA17VCASSYSW | VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23) | 6 |
| 21 | 4475 | OWA17FLGSW | THREADED FLANGE | 6 |
| 22 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 23 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 24 | 4017-77 | | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | AJO-449R | 077070074701 | DISCHARGE MANIFOLD GASKET | 3 |
| 26 | 8014G520 | 078070028300 | SUCTION MANIFOLD GASKET | 3 |
| | | PPHT304 | PISTON ROD ASSEMBLY 3 PIECE CLAMP STYLE | 3 |
| | | PPHT204A | PISTON ROD | 3 |
| | | PPHT204E | SUB ROD | 3 |
| | | 10305203 | STEEL CONNECTING STUD | 3 |
| MISSION "L" MODULE FOR T-1300/T-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO IDECO INDEX | |
| | 8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
| 9 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
| 12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
| 13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
| 14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
| 15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
| 16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
| 20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
| 23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | | PEP65 | LOCK WASHER | 24 |
| MISSION "L" MODULE FOR A-1400-PT-A-1700PT |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | Return To: Oilwell Index | |
| | 8488-1A | FEMA17ASSYSW | FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS 1-27) | |
| 1 | 8488-1D | FEMA17DISSW | DISCHARGE MODULE - (INCLUDES ITEMS 1, 4-11, 12, 13) | 3 |
| 2 | 8488-2S | FEMA17SUCSW | SUCTION MODULE, (INCLUDES ITEMS 2, 11, 12, 13, 27) | 3 |
| 3 | 6488-1 | OWA17LRPLATESW | LINER RETAINER PLATE | 3 |
| 4 | 4017-4 | PEP68 | ALLEN HEAD CAPSCREW 1 1/4"-7X 3 1/2" | 24 |
| 5 | 4016-3 | OWA17DMSSW | DISCHARGE MANIFOLD STUD | 12 |
| 6 | | EMSF1000TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 7 | 4016-96 | OWA17PFSSW | STUD, POWER FRAME | 12 |
| 8 | | PEP55 | NUT, POWER FRAME STUD | 12 |
| 9 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 6 |
| 10 | | EMSF1000PFSN | NUT, FOR ABOVE STUD | 6 |
| 11 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 24 |
| 12 | | PZ789LCSN | NUT, THREADED RING STUD | 24 |
| 13 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 14 | 2988 | 1290344 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 15 | 2974-1 | 077170074203 | SEAL, WEAR PLATE | 3 |
| 16 | 8488-4 | PP602850 | WEAR PLATE | 3 |
| 17 | 6588-1 | OWA17LLNSW | LINER LOCK NUT | 3 |
| 18 | P-129 | 07207129 | VALVE COVER SEAL | 6 |
| 19 | 4018-88 | PEP73 | RETAINER SCREW, VALVE COVER | 12 |
| 20 | 4775R | OWA17VGSW | VALVE GUIDE | 6 |
| 21 | 4675-1A | OWA17VCASSYSW | VALVE COVER PLUG - (INCLUDES ITEMS 19-22) | 6 |
| 22 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 23 | 4475 | OWA17FLGSW | THREADED FLANGE | 6 |
| 24 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 25 | 80102003 | 10300201 | SUCTION MANIFOLD GASKET | 3 |
| 26 | 568-345 | 99609345 | DISCHARGE MANIFOLD GASKET | 3 |
| 27 | 4018-70 | 75634382 | SUCTION MANIFOLD CAPSCREW | 24 |
| 28 | 8488-7 | PEP90 | LINER RETAINER SETSCREW | 9 |
| NATIONAL 9-P-100 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | | FEMNAT9PCA | FLUID END MODULE COMPLETE ASSEMBLY | |
| 1 | 1293240 | FEMNATDIS9P | FLUID END MODULE DISCH. (STUDDED) (INCLUDES ITEMS 1, 3-6, 9, 10, 31, 31A) | 3 |
| 2 | 1290338 | FEMNATSUC8P9P | FLUID END MODULE SUCTION. (STUDDED) - (INCLUDES ITEMS 2-4 & 35) | 3 |
| 3 | 2408019 | 8P80TRS | STUD, THREADED RING 1 3/8 X 7 1/4 TP TPR LK | 72 |
| 4 | 6300220 | 8P80TRSN | NUT 1 3/8 | 72 |
| 5 | 2408030 | 9P100PFS | STUD, FRAME 1 1/4 X 6 TOP TAPER LK | 24 |
| 6 | 6300200 | PZ789LCSN | NUT (FOR ABOVE) 11/4 HEAVY HX | 24 |
| 7 | 2402560 | 8P80DMS | STUD,1 1/4-7 X 6 1/4 TOP TAPER LK | 16 |
| 8 | 6300200 | PZ789LCSN | NUT 1 1/4-7 HEAVY HEX | 16 |
| 9 | 2408034 | 8P80DSUCS | STUD, DISCHARGE TO SUCTION 1/2X19 1/8 | 18 |
| 10 | 6300241 | | NUT, 1 1/2 8 UN-3A HEAVY HEX NUT | 18 |
| 11 | 6511416 | PEP70 | PIN, DOWELL 7/8 X 2 (STANDARD DOWELL) | 6 |
| 12 | 1292141 | NATVGB | BUSHING, VALVE GUIDE | 6 |
| 13 | 1292140 | NATVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
| 14 | 1540126 | 077970076800 | GASKET, VALVE COVER | |
| 15 | 1290174 | NAT8PRETSEAL | SEAL, RETAINER | 6 |
| 16 | 1290178 | NATAWS | SCREW, ADJUSTING WEDGE | 6 |
| 17 | G-1290376 | 8P80LW | WEDGE ASSEMBLY IND. WEDGES G-1290179-P | 6 |
| 18 | 1290181 | 8P80WS | SPRING, WEDGE | 6 |
| 19 | 1290308 | NAT8PFLG | RING, THREADED | 6 |
| 20 | 1290307 | NAT8PCAP | CAP, VALVE COVER (THREADED0 | 6 |
| 21 | 1290315 | 8PAWSW | WASHER | 6 |
| 22 | 6300160 | 8PAWSN | NUT- 1-8UNC HEAVY HEX | 6 |
| 23 | 2410031427 | 2410031427 | SEAL, DISHARGE CONNECTOR & ADAPTER | 4 |
| 24 | 1290343 | NAT8PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 25 | 2410031348 | 2410031348 | DISCHARGE CONNECTOR SEAL | 2 |
| 26 | 1290342 | NAT8PDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | 2410031427 | 2410031427 | SEAL, DISCHARGE CONNECTOR | 2 |
| 28 | 700030510 | | CAPSCREW, 1/2 X 1/2 LG GR5 HX HD | 16 |
| 29 | 1290357 | PP602000 | PLATE, WEAR | 3 |
| 30 | 1293165 | 9PLCA | LINER BUSHING | 3 |
| 31 | 2408018 | | STUD, LINER BUSHING 1 1/4 X 6 TOP TAPER LK | 18 |
| 31A | 6300200 | PZ789LCSN | NUT, 1 1/4-7 HEAVY HEX FOR ABOVE | 18 |
| 32 | 1293166 | 9PLC | CLAMP, LINER | 3 |
| 32A | 7000448 | 9P100LCS | 3/4 X 4 GR 5 CAD PLT HEX HD CAPSCREW | 6 |
| 32B** | ** | | ** LOCK WASHER,(OPTIONAL) 3/4 LW | 6 |
| 32C | 6309120 | | NUT (FOR ABOVE) 3/4 LOCKNUT | 6 |
| 32D | 1290169 | | PIN, LINER CLAMP | 6 |
| 32E | G-1290087-P | | PIN CONNECTER | 6 |
| 32F | 6571420 | | PIN, 7/32 X 1-1/4 SPRING SLOT | 12 |
| 33 | 1290344 | | SEAL, MODULE | 6 |
| 34 | 1590051 | | SEAL, SUCTION MANIFOLD | 3 |
| 35 | 7000483-11 | | SCREW, 7/8 X 2-1/2 GR. 5 CAD PLATED HEX CAP | 24 |
| MISSION "L" MODULE FOR T-1300/T-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO IDECO INDEX | |
| | 8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
| 9 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
| 12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
| 13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
| 14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
| 15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
| 16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
| 20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
| 23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | | PEP65 | LOCK WASHER | 24 |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | | FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) | 3 |
| 1 | 8476-6S | FEM12PSUCSWNS | SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) | 3 |
| 2 | 8476-5D | FEM12PDISSWNS | DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-6A | 12PVGASWNS | PLUG (INCLUDES ITEMS 15, 19, 20, & 21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-119 | 07207119 | VALVE COVER PLUG SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 80852292 | 1292258 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 29 | 4018-18 | 700030711 | DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) | 16 |
| 30 | 8376-3 | 1292175 | BACKUP RING-(DISCHARGE CONNECTOR) | 4 |
| 31 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3 | 16 |
| MISSION "L" MODULE FOR NATIONAL12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8476-2S | FEM12PSUCSW | SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) | 3 |
| 2 | 8476-1D | FEM12PDISSW | DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-2A | 12PVCSW | PLUG (INCLUDES ITEMS 15, 19-21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-107 | 07207107 | VALVE COVER SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE RETAINER SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 2976-3 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 29 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| 30 | 8376-3 | | DISCHARGE FLANGE STUD | 16 |
| 32 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | | |
| 1 | | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 |
| 1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
| 2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
| 3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
| 4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
| 5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
| 6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
| 12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
| 16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 23 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |
| | | 07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 |
| | |
| CONTINENTAL EMSCO F-800, F-1000 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: EMSCO INDEX | |
| 1 | | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 |
| 1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
| 2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
| 3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
| 4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
| 5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
| 6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
| 12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
| 16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 23 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |
| | | 07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 |
| | |

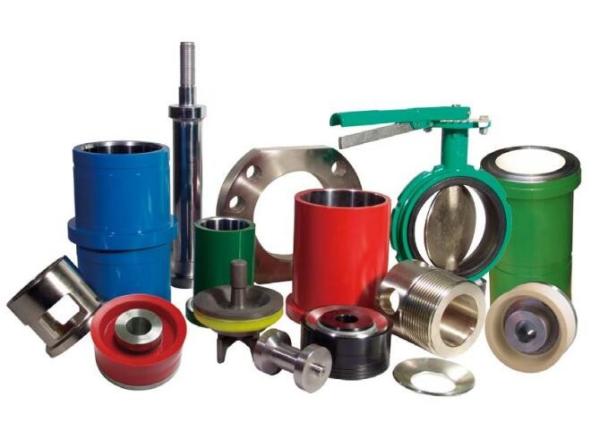

Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

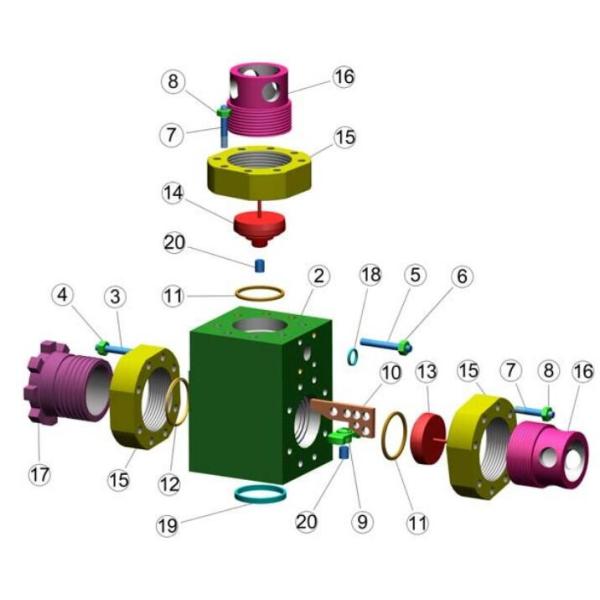

F800/1000 Mud Pump
| Item | P/N | Description | Qty. | Price$ | Weight |
| 1 | 0-6999-0086-02 | Fluid Module Studded, (incl. Items 2-8) | 3 | | 685 |
| 2 | 0-6999-0086-02 | Fluid Module , Only | 3 | 3349 | 640 |
| 3 | 0-7507-2108-00 | Stud, 1 1/4 | 12 | 8.2 | 0.56 |
| 4 | 0-7601-0630-24 | Nut, 1 1/4 - 8 Hvy. Hex | 12 | 2.3 | 0.11 |
| 5 | 0-7507-2205-00 | Stud, 1 1/2 | 18 | 9 | 0.6 |
| 6 | 0-7601-0630-17 | Nut, 1 1/2 - 8 Hvy. Hex | 18 | 2.5 | 0.13 |
| 7 | 0-7507-2150-00 | Stud, 1 3/8 | 30 | 8.6 | 0.57 |
| 8 | 0-7601-0630-26 | Nut, 1 3/8 - 8 Hvy. Hex | 30 | 2.3 | 0.12 |
| 9 | 0-6319-0026-00 | Liner Cage | 3 | 178.8 | 10 |
| 10 | 0-6999-0089-00 | Thread Ring | 3 | 279.6 | 46.8 |
| 11 | 0-6319-0031-00 | Cylinder Head | 3 | 272 | 38.4 |
| 12 | 0-6319-0027-00 | Valve Cover | 3 | 275 | 41.5 |
| 13 | 0-6319-0090-00 | Cylinder Head Plug | 3 | 149.6 | 13.6 |
| 14 | 0-6397-0575-00 | Valve Guide, Upper | 3 | 5 | 0.22 |
| 15 | 0-6397-0603-00 | Retainer, Valve Guide | 3 | 15 | 0.32 |
| 16 | 0-7602-1610-46 | O-Ring, AN 6230-19 | 3 | 1 | 0.01 |
| 17 | 0-6319-0076-00 | Seal, Valve Cover | 3 | 5.8 | 0.13 |
| 18 | 0-7501-0051-00 | Screw, Valve Guide Retainer | 3 | 2.5 | 0.16 |
| 19 | 0-7602-1600-61 | O-Ring, Suction Manifold | 3 | 1.6 | 0.02 |
| 20 | 0-6319-0096-00 | Bushing, Lower Valve Guide | 3 | 0.5 | 0.01 |
| 21 | 0-6319-0089-00 | Locking Clip, Lower Valve | 3 | 6.5 | 0.31 |
| 22 | 0-6319-0087-00 | Lower Valve Guide | 3 | 65 | 3.2 |
| 23 | 0-7602-2200-32 | Liner Seal | 3 | 6.5 | 0.12 |

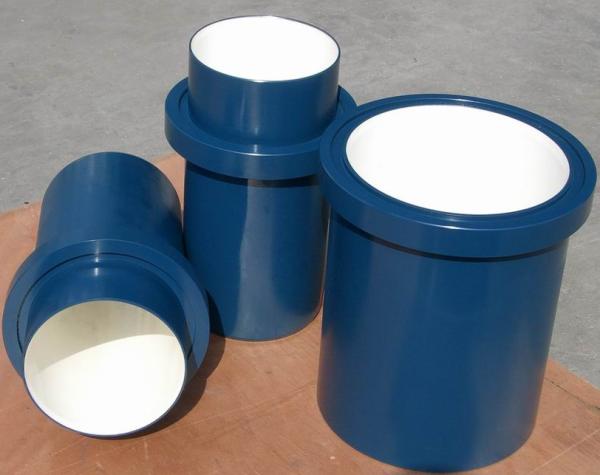

| 23 | PREM-2122-44 | Liner 4-1/2" | 3 | 215.6 | 60.2 |
| 24 | PREM-2122-50 | Liner 5" | 3 | 210 | 53.4 |
| 25 | PREM-2122-54 | Liner 5-1/2" | 3 | 204.3 | 45.5 |
| 26 | PREM-2122-60 | Liner 6" | 3 | 198.3 | 37.1 |
| 27 | PREM-2122-64 | Liner 6-1/2" | 3 | 190 | 28 |
| 28 | PREM-2122-66 | Liner 6-3/4" | 3 | 183.6 | 23 |
| 29 | 012180196 | Piston 4-1/2" | 3 | 39.8 | 3.6 |
| 30 | 012180253 | Piston 5" | 3 | 41.5 | 4.2 |
| 31 | 012180337 | Piston 5-1/2" | 3 | 45.3 | 5.7 |
| 32 | 012180394 | Piston 6" | 3 | 47.2 | 6.5 |
| 33 | 012180535 | Piston 6-1/2" | 3 | 55.2 | 7.6 |
| 34 | | Piston 6-3/4" | 3 | 58 | 8.5 |
| 35 | 9700285 | Valve Full Open 6FO-V1 | 6 | 38.2 | 4.3 |
| 36 | 9702547 | Seat 6S6 | 6 | 28.4 | 3.9 |
| 37 | HD6I | Valve Insert | 6 | 24.4 | 0.16 |
| 38 | 060152808 | Valve Cross arms | 6 | 29 | 4.4 |
| 39 | 061102653 | Seat Cross arms | 6 | 28.5 | 4.3 |
| 40 | | Valve Insert | 6 | 22.8 | 0.22 |
| 41 | 1551702 | Piston rod | 3 | 78 | 13.5 |
| 42 | PP601000 | Clamp | 3 | 72 | 8.6 |
| 43 | 07913070 | Pony rod | 3 | 235.7 | 48 |
