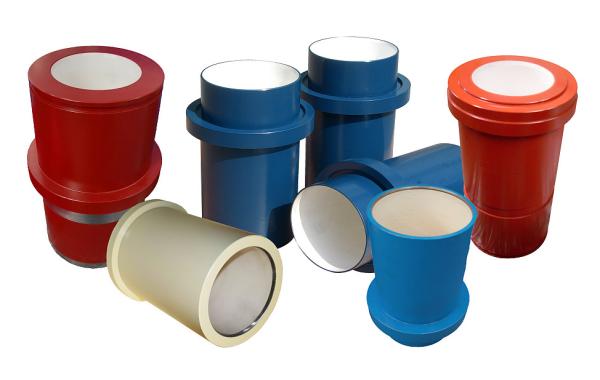

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Specifications
Brand Name :
Rongsheng, Southwest, NATIONAL OILWELL, MISSION
Model Number :
RS-F1600L, RS-F1300L mud pump
Certification :
API
Place of Origin :
CHINA
MOQ :
1 SET
Price :
1 to 3000 usd
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
20000 sets per month
Delivery Time :
Quantity in stock
Packaging Details :
Suotable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
Electric
Pressure :
High Pressure
Structure :
Piston Pump
Fuel :
Diesel
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
red and so on
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
can be accept
Condition :
new
Description

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump pistonRongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

序号

№

代号

Обозначение

名称

Наименование

 数量Ко-во
1 RS11309L.01.001

吸入缸

Всасывающий цилиндр

 3
2 RS11309.05.011

阀盖密封圈

Уплотнение крышки клапана

 6
3 RS11309.05.026

挡板

Отбойный щит

 6
4 BG05.002

螺栓 M10X20

БолтM10X20

 24
5 GB 4240

钢丝 %c1.6

Стальная проволока

 按需
6 RS11306.05.010

阀杆导向器(上)

Направляющая штока клапана (верхняя)

 6
7 RS11309A.05.012

阀盖

Клапанная крышка

 6
8 RS11314.05.015

吸排缸密封圈

Уплотнительное кольцо всасывающего и нагнетательного цилиндра

 3
9 RS11309.05.10.00

阀总成

Клапан в сборе

 6
10 RS11306.05.013

阀弹簧

Пружина клапана

 6
11 RS11309L.01.002

排出缸

Нагнетательный клапан

 3
12 RS11309.05.013

缸套密封圈

Уплотнение втулки

 6
13 RS11309A.05.014

耐磨盘

Изностсотйкий диск

 3
14 RS11309A.05.030

垫圈 39(Ⅱ)

Уплотнительное металлическое кольцо39(Ⅱ)

 12
15 RS11309L.01.005

双头螺栓M39X2-M39X3

Шпилька

 30
16 NG.05.001

螺母M39X3

Гайка

 30
17 RS11309.05.027

垫圈39

Прокладка

 18
18 RS11309.05.015

缸套法兰

Фланец

 3
19 RS11309A.05.01.002

双头螺栓M27X2-M27X195

Шпилька

 36
20 RS11309A.05.01.003

螺母M27

Гайка

 36
21 RS11309.05.016

缸套压盖

Нажимная крышка втулки

 3
22 RS11309.05.019

缸套锁紧环

Запорное кольцо втулки

 3
23 GB/T 3452.1

O形圈%c200X7

О-кольцо

 3
24 RS11309A.05.18.00

喷淋管总成

Трубы для подычи СОЖ

 1
25 RS11309A.05.21.00

卡箍总成

Хомут в сборе

 3
26 RS11309A.05.22.00

缸套端盖

Торцевая крышка втулки

 3
27 RS11309L.01.03.00

组装式活塞杆

Поршневой шток

 3
28 RS11309A.05.020

缸套

Втулка

 3
29 RS11305.04.36.1.01

密封圈

Уплотнительное кольцо

 3
30 RS-HS(G)."X"

活塞

Поршень

 3
31 RS11306A.05.15.00

活塞螺母

Гайка поршня

 3
32 GB/T 5782

螺栓 M22X65

Болт

 18
33 GB/T 3452.1

O型圈 %c185X7

О-кольцо

 3
34 RS11309L.01.04.00

吸入管

Всасывающая труба

 1
35 RS11309.05.25.00

垫片组

Группа шайбы

 4
36 GB/T 6170

螺母M27

Гайка

 36
37 GB/T 5782

螺栓M27X90

Болт

 36
38 GB/T14626

方头管塞DN40NPT

Трубная пробка

 1
39 GB/T 3452.1

O形密封圈%c345X

О-кольцо

 2
40 T05.04

吸入法兰(I)

Всасывающий фланец(I)

 1
41 T.05.002

吸入堵板

Глушка

 1
42 T05.05

吸入法兰(II)

Всасывающий фланец(II)

 1
43 RS11317.05.01.002

螺柱 M45X3X543

Винт

 18
44 RS11317.05.01.003

螺母 M45X3

Гайка

 18
45 RS11314.05.030

排出密封圈

Уплотнительное уольцо

 2
46 RS11317.05.09.00

连接法兰总成

Соединительный фланец

 2
47 RS11317.05.010

内六角螺钉 M39X3X75

Винт

 16
48 RS11314.05.031

衬套密封圈

Уплотнительное уольцо

 4
49 RS11317.05.011

连接法兰

Соединительный фланец

 2
50 RS11314.05.033

连接法兰密封圈

Уплотнительное уольцо соединительного фланца

 2
51 RS11314.05.034

衬套

Гильза

 2
52 RS11314.05.035

衬环

Гильщовое кольцо

 4
53 GB/T5782

螺栓 M14X50

Болт

 16
54 GB/T93

弹垫 14

Пружиная шайба

 16
55 GB/T22513

垫环 R44

Уплотнительное металлическое кольцо

 2

注:1,本表中第28项和第30项中缸套和活塞的规格为:130mm,140mm,150mm,160mm,170mm,180mm,190mm(仅F1600L)

Примечание : размер втулки и поршня в позции №28 и 30: 130mm,140mm,150mm,160mm,170mm,180mm,190mm(только для бурового насоса F1600L)

2,本表中所列数量均为整台泵的数量.

Количество в таблице для одного насоса.

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200

Romania: 3PN-1000, 3PN-1600, 3PN-2000

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

序号

№

代号

Обозначение

名称

Наименование

 数量Ко-во
1 RS11309A.04.001

十字头

Ползун

 1
2 RS11309.04.002

上导板

Верхняя направляющая

 1
3 RS11309.04.003

垫片组

Группа шайбы

 8
4 RS11309.04.004

调节垫片

Регулирующие шайбы

 2
5 RS11309.04.005

填料盒

Сальниковая коробка

 1
6 RS11309.04.006

油封环

Сальникоаое кольцо

 1
7 RS11309.04.007

双唇密封圈 5X6.25X0.625”

Уплотнительное кольцо

 2
8 RS11309.04.008

锁紧弹簧

Запорная прцужина

 1
9 RS11309.04.009

挡泥板

Грязьотбойный щит

 1
10 RS11309.04.010

中间拉杆

Контрошток

 1
11 RS11309A.04.011

十字头销

Полец ползуна

 1
12 RS11309.04.012

密封垫

Уплотнительная прокладка

 1
13 RS11309.04.013

下导板

нижняя направляющая

 1
14 RS11309.04.014

十字头销挡板

Отбойный щит пальца ползуна

 1
15 RS11309.04.015

十字头轴承

Подшипник ползуна
16 RS11306.04.004

管接头 NPT 3/8

Штуцер

 2
17 RS11309A.04.016

螺栓 M24X60

Болт

 2
18 RS11309A.04.017

螺栓 M24X70

Болт

 6
19 RS11306A.04.009

固定板

Фиксарующий щит

 8
20 RS11309A.04.018

螺栓 M24X65

Болт

 8
21

不锈钢丝 φ1.6

Нержевающая проволока

 按需
22 GB/T 3452.1

O型圈 125X7

О-кольцо

 1
23 GB/T 3452.1

O型圈 160X7

О-кольцо

 1
24 GB/T 3452.1

O型圈 190X3.55

О-кольцо

 1
25 GB/T 5783

螺栓 M10X25

Болт

 4
26 GB/T 93

弹性垫圈 10

Пружиная шайба 10

 4
27 GB/T 70.1

螺钉 M20X65

Винт

 8
28 242

螺纹厌氧锁固胶

Клей для крепления

 按需

注:本表中数量仅为一套十字头总成的数量,整台泵的数量需将表中数量乘3.

Количество в таблице для одного ползуна, на один буровой насос количество на три.

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

CONTINENTAL EMSCO FB-1300, FB-1600 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
1 0-6316-0325-00 EMSFEMFB1300CA FLUID END MODULE COMPLETE ASSY. (ITEMS 1-22, 24- 28) 3
1A 0-6316-0357-00 EMSFEMFB1300 FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 4A, 5, 6, 7, & 28) 3
2 EMSFB13LCS STUD, MODULE TO LINER CLAMP 36
3 0-7601-0610-18 PEP53 LINER CLAMP STUD NUT 36
4 0-7507-2201-00 EMSFB13PFS POWER FRAME STUD 18
4A 0-7507-2210-00 EMSFB13TRS STUD, MODULE TO CYLINDER 18
5 0-7601-0630-17 EMSF1000PFSN NUT (FOR ABOVE) 48
6 0-7507-2108-00 EMSF1000DMS STUD, MODULE TO DISC. MANIFOLD 12
7 0-7601-0630-24 IDT800TRSN NUT (FOR ABOVE) 12
8 0-6316-0354-00 EMSFB13LVGA GUIDE, LOWER VALVE (WITH BUSHING) 3
9 0-6316-0096-00 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
10 0-6316-0360-00 EMSFB13BOLT LOCKBOLT, LOWER VALVE GUIDE 3
11 0-6316-0363-00 EMSFB13AR ALIGNMENT RING 3
12 0-6316-0369-00 07916801 GASKET, HEAD SEAL 3
13 0-6316-0364-90 EMSFB13CYHPLG PLUG, CYLINDER HEAD 3
14 0-6316-0361-00 EMSFB13CYHFLG RING, THREADED CYLINDER HEAD 3
15 0-6316-0362-00 EMSFB13CYHCAP CAP, THREADED CYLINDER HEAD 3
16 0-6316-0092-00 07916741 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
17 0-7501-0051-00 PEP79 SCREW, RETAINER UPPER) 12
18 0-6397-0603-00 EMSRETAINER PLATE, RETAINER (UPPER) 3
19 0-6397-0575-00 EMSF1000UVGB GUIDE, UPPER VALVE 3
20 0-6316-0039-00 EMSFB13CAP COVER, VALVE POT 3
21 0-6316-0373-00 07916800 GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
22 0-6316-0365-00 EMSFB13WP PLATE, WEAR 3
23 0-6316-0373-00 07916800 GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
24 0-6316-0366-00 EMSFB13LTR RING, LINER THREADED 3
25 0-6316-0367-20 EMSFB13LL LINER LOCK 3
26 0-7602-1600-25 99609343 GASKET, DISCHARGE MANIFOLD 3
27 0-7602-1600-61 99609442 GASKET, SUCTION MANIFOLD 3

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Item Description Part No.
Complete Assembly 8476-A
1 Threaded Flange 4476
2 Screw Gland 4597
3 Plug Assembly w/Guide & Bushing 4676-2A
4 Valve Guide 4776
5 Valve Guide Bushing 4700-I
6 Valve Guide Screw 4016-98
7 Valve Cover Stud w/Nut 4015-54
8 Power End Stud w/Nut 4015-95
9 Liner Retainer Capscrew 4017-65
10 Liner Retainer Flange 6476
11 Liner Retainer Nut 6576
12 Suction Module Stud w/Nut 4018-17
13 Suction Module (Studded) 8476-2
14 Discharge Module (Studded) 8476-1
15 Dowel Pin 8488-5
16 Wear Plate 8476-3
17 Valve Cover Plug Seal P-107
18 Module & Wear Plate Seal 2988
19 Piston Rod 1286-32
20 Sub Rod 1286-1
21 Rod Clamp w/Spray System 1286-CW

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

MISSION "L" MODULE FOR GARDNER DENVER PZL W/ 7500 PSI SWFE QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # SW PART # MISSION PART DESCRIPTION
1 8477-27 DISCHARGE MODULE, STUDDED 3
2 8477-26 SUCTION MODULE,STUDDED 3
3 4019-44 STUD, DISCHARGE TO SUCTION MODULE 18
4 1-3/4-8 HH NUT, DISCHARGE TO SUCTION STUD 18
5 8488/5/1- 6511416 DOWELL PIN 3
6 8477-30 LINER WEAR PLATE 3
7 2988 1290344 WEAR PLATE AND MOD GASKET - RUBBER (SEE DATASHEET FOR ALT MATLS) 6
8 4019-46 STUD, POWER END 24
9 1-1/4-8 HH NUT, POWER END STUD 24
10 4019-45 STUD, LINER RETAINER 24
11 1-1/4-7 HH NUT, LINER RETAINER STUD 24
12 6477-25 LINER RETAINER FLANGE 3
13 6577-25 LINER RETAINER NUT 3
14 8477-29 RING. ALIGNMENT 3
15 4015/2/1- OWA17TRSSW STUD, THREADED RING 72
16 1-1/4-7 HH 6300200 NUT, THREADED RING STUD 72
17 4488-25 FLANGE, VALVE COVER 6
18 4588-25 THREADED CAP (SCREW GLAND) 6
19 4688-25 VALVE COVER ASSEMBLY (INCLUDES ITEM #'S 21,23 & 25) 6
20 VALVE COVER (PLUG) 6
21 P-115 7207115 VALVE COVER PLUG SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
22 4788-25R VALVE GUIDE (INCLUDES BUSHING) 6
23 4700-I PZ789VGI* BUSHING, VALVE GUIDE 6
24 4018-18 700030511 VALVE GUIDE SCREW 12
25 4017-77 700044111 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
26 8577-25 SUCTION MANIFOLD 1
27 AJO-245 SUCTION MANIFOLD SEAL 3
28 8377-27 DISCHARGE MANIFOLD (F0R SERIAL # 9223 AND ABOVE) 1
29 8377-25 DISCHARGE MANIFOLD (SERIAL # 9222 AND BELOW TO NOT RELOCATE DISC PIPING )
30 4019-45 STUD, DISCHARGE MANIFOLD 12
31 1-1/4 -7 HH NUT, DISCHARGE MANIFOLD STUD 12

Product tags

hydraulic co

,

vickers hydraulic pump pvb6rsy21

,

hydraulic pump vickers 16
Send your message to this supplier
Send Now

Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Ask Latest Price
Product Detail
Brand Name :
Rongsheng, Southwest, NATIONAL OILWELL, MISSION
Model Number :
RS-F1600L, RS-F1300L mud pump
Certification :
API
Place of Origin :
CHINA
MOQ :
1 SET
Price :
1 to 3000 usd
Contact Supplier
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston
Rongsheng RS-F1600L mud pump fluid end, Rongsheng F1600 mud pump liner, Rongsheng RS-F1300L mud pump piston

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member
6 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Rongsheng Mud Pumps
MachineU China Products Tools & Hardware Pumps & Parts Pumps
Contact Supplier
Submit Requirement
