Specifications
Brand Name :
SOUTHWEST, OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Model Number :
A1700PT
Certification :
API
Place of Origin :
China
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3000 per month
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
diesel
Pressure :
High Pressure,Low Pressure
Application :
Conveying mud and flushing fluids,mining,oil,Chemical
Structure :
Piston Pump
Fuel :
Diesel,Electric
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
blue,red and so on
Material :
Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
can be accept
Condition :
new
Description

www.premiumrigparts.com

GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE) QTY PER PUMP

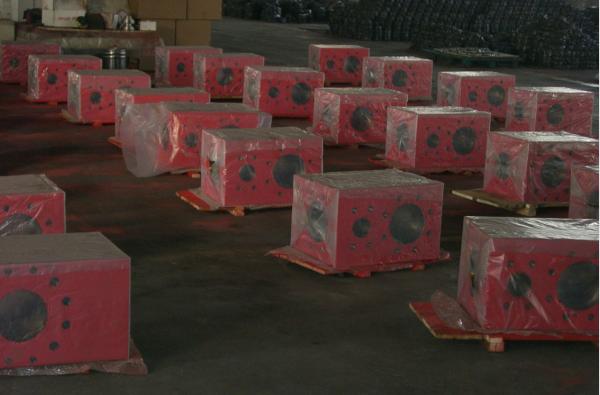

FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART #
FEMPZ101175CA FLUID END MODULE COMPLETE ASSEMBLY 3
1 300PZL2039 FEMPZ101175 FLUID END MODULE-STUDDED (INCLUDES ITEMS 2, 18-23) 3
2 50B36 IDT800TRSN NUT 168
3 303PZL316 SEAL, WEAR RING (WEAR PLATE) 3
4 300PZL483 GUIDE, VALVE (UPPER) 3
5 300PZL234 RING, WEAR (WEAR PLATE) 3
6 300PZL205 PZ1011LVGR75 RETAINER, VALVE GUIDE 3
7 300PZL316 SEAL, CYL. HEAD & VALVE COVER - RUBBER (SEE DATASHEET FOR ALT. MATERIALS) 6
8 301PZL147 PZ1011VC75 COVER-VALVE (UPPER) 3
9 15P27 BOLT, EYE 6
10 300PZL387 PZ1011FLG75 RING-THREADED 6
11 300PZL587 PZ1011CAP75 CAP, THREADED 6
12 25BE41 07923283 GASKET, SUCTION MANIFOLD 3
13 655EG10N SCREW, SUCTION MANIFOLD 24
14 302PZL316 GASKET, DISCHARGE MANIFOLD 3
15 300PZL229 BUSHING 12
16 300PZL147 PZ1011CYHPLG75 COVER, CYLINDER HEAD (LOWER) 3
17 301PZL483 GUIDE, VALVE (LOWER) 3
18 303PZL110 PZ1011LCS75 STUD, LINER CLAMP 36
19 300PZL110 PZ1011PFS75WP STUD, POWER FRAME (WEAR RING) 6
20 303PZL110 PZ1011PFS75 STUD, DISCHARGE MANIFOLD 6
21 301PZL110 PZ1011TRS75 STUD, THREADED RING 84
22 300PZL455 PZ1011LC75 CLAMP, LINER 3
23 300PZL234 PZ1011WP75 WEAR RING, (WEAR PLATE) 3

SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15”

ITEM P/ N DESCRIPTION QTY. REQ’D
8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)

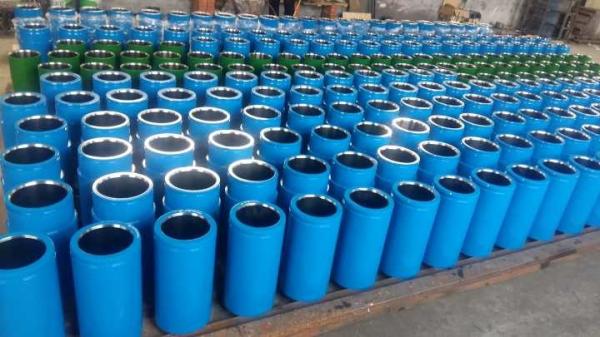

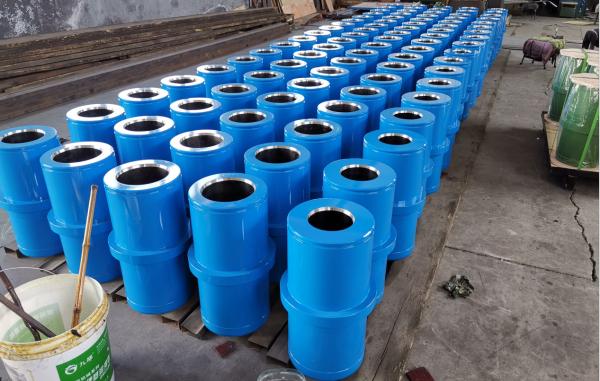

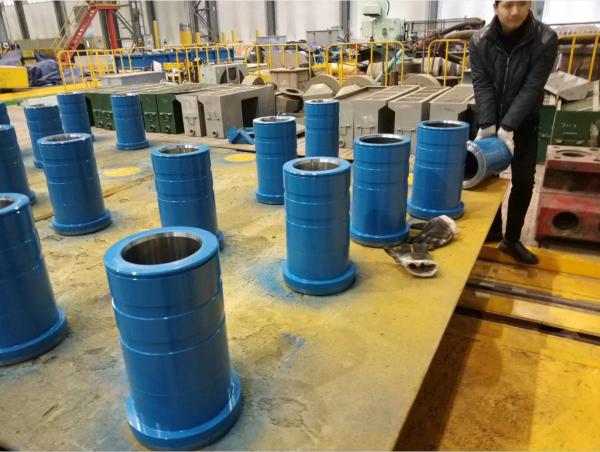

1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18

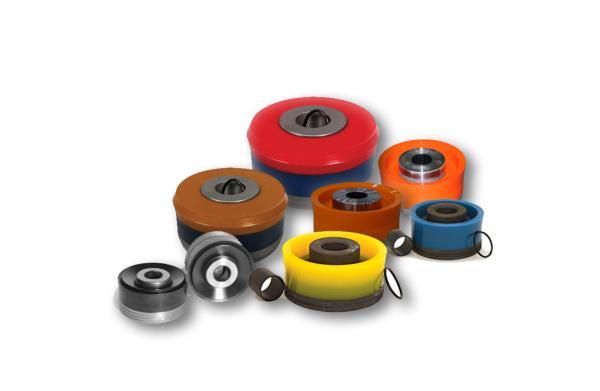

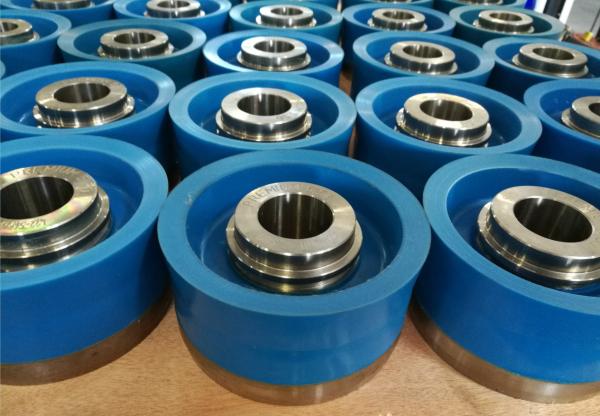

6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39 DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3

CONTINENTAL EMSCO FC-2200 QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART #
EMSFEMFC2200CA FLUID END MODULE COMPLETE ASSEMBLY
1 0-6323-0108-00 EMSFEMFC2200DIS DISCHARGE MODULE-STUDDED
2 0-6323-0109-00 EMSFEMFC2200SUC SUCTION MODULE-STUDDED
3 0-6323-0087-00 THREADED RETAINER
4 0-6323-0086-00 THREADED RING
5 0-6323-0083-00 VALVE POT COVER
6 0-6323-0103-00 VALVE GUIDE W/ BUSHING
7 0-6323-0126-00 HANDLER, VALVE POT
8 0-6323-0085-00 SUCTION MANIFOLD
9 0-6316-0105-95 FLANGE, SUCTION
10 0-6317-0074-95 FLANGE, BLIND
11 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI
12 0-6323-0097-00 WEAR PLATE
13
14 0-6323-0096-00 LINER THREAD RING
15 0-6323-0099-00 LINER LOCK
16
17 0-6323-0121-20 FEED PIPING ASSEMBLY
18 0-6323-0093-00 RETAINER, VALVE GUIDE
19 0-6323-0128-00 SEAL, F. E. MODULAR
20 0-6323-0127-00 WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
21
22 0-7602-1600-52 O-RING (SUCTION MANIFOLD)
23 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F. E.)
24 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F. E.)
25 0-7501-0051-00 SCREW, RETAINER
26 0-7602-5280-72 WIRE, SOFT IRON .06 X 144.00
27
28 0-7601-0331-39 SCREW, HEX HD 1" - 8 X 5.00
29 0-7601-0630-20 NUT, HEX 1" - 8
30
31 0-7601-0333-30 SCREW, HEX HD 7/8-9 X 2.50 GR 5

GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON

SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”

ITEM P/ N DESCRIPTION QTY. REQ’D
8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 VALVE 6
14 VALVE INSERT (IF REQUIRED) 6
15 VALVE SPRING 6
16 SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS
6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT 3

SOUTHWEST 8488-25A FLUID END FOR

OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI A-1700-PT / A-1400-PT 7-1/2” X 12”

ITEM P/ N DESCRIPTION QTY. REQ’D
8488-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 34, 35, & 36)
1 1388-XX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2974-XX LINER SEAL (ALSO AVAILABLE IN URETHANE) 3
3 8488-28 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL 9
5 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON O-RING 3
7 1290HW25 PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1290W2 PISTON ROD CONNECTING STUD 3
10 1290HW1 SUB ROD 3
11 1290CW ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1200120 PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) 3
11C 4018-94 ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G90 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT (IF REQUIRED) 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 THREADED FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, & 23 6
20 P115 HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) 6
21 4788R-25 VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 72
25 4020-5 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 12
26 6588-1 LINER RETAINER NUT 3
27 8488-7 LINER RETAINER CAPSCREW 9
28 6488-25 LINER RETAINER FLANGE 3
29 4016-80 LINER RETAINER SOCKET HEAD CAP SCREW 24
30 4020-4 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 18
31 4018-70 SUCTION MANIFOLD CAP SCREW 24
32 8588-50A SUCTION MANIFOLD 1
33 80102003 SUCTION MANIFOLD SEAL 3
34 8488-26 SUCTION MODULE 3
35 8488-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8388-25A DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) 18
39 568-445 “O” RING – WEAR PLATE O.D. RETAINER 3
40 2932 PISTON BUSHING (1 5/8 TO 1 ½ DIA.) 3

SOUTHWEST 7500 P.S.I. NATIONAL 12P-160 7-1/2” X 12”

ITEM P/N DESCRIPTION QTY. REQ’D
8476-25A FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38)
1 1376YXX LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) 3
3 8476-3 WEARPLATE 3
4 2988 WEARPLATE, AND DISCHARGE MANIFOLD SEAL 6
5 XX-BYY PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) 3
6 568-225 PISTON O-RING 3
7 1286-32 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD ELASTIC STOP NUT 3
9 1286-1 SUB ROD 3
10 1286CWY ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) 6
10A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
10B 1286CWYFP14 PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) 3
10C 4020-29 BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 12
11 1200G86 PONY ROD 3
12 SEE PAGE VALVE 6
13 SEE PAGE VALVE INSERT (IF REQUIRED) 6
14 SEE PAGE VALVE SPRING 6
15 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) 1
16 4488-25 THREADED FLANGE 6
17 4588-25 SCREW GLAND 6
18 4690-25A PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) 6
19 P115 HP VALVE COVER PLUG NITRILE SEAL 6
20 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
21 4700I VALVE GUIDE BUSHING 6
22 4018-88 VALVE GUIDE SCREW 12
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18
29 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 24
30 8576-50 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
31 AJO419R SUCTION MANIFOLD GASKET 3
32 8476-26S SUCTION MODULE 3
33 8476-27D DISCHARGE MODULE 3
34 8488-5 DOWEL PIN 6
35 8376-25MOD DISCHARGE MANIFOLD 1
36 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 18
37 LW500 LOCKWASHER 12
38 LW875 LOCKWASHER 24
39 9070012 PONY ROD SEAL 12
40 80491292 SPLASH GUARD 3
23 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) 72
24 4015-95 POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) 30
25 6476 LINER RETAINER FLANGE 3
26 4017-65 LINER RETAINER FERRY HEAD CAP SCREW 18
27 6576 LINER RETAINER NUT 3
28 4019-54 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) 18

GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON

SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12

Product tags

hydraulic piston pumps a11vlo190

,

hydraulic pump type ld25

,

gd505 hydraulic piston pump
Send your message to this supplier
Send Now

GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON

Ask Latest Price
Product Detail
Brand Name :
SOUTHWEST, OILWELL, GARDNER DENVERNATIONAL, EMSCO, DRILLMEC, GARDNER DENVER
Model Number :
A1700PT
Certification :
API
Place of Origin :
China
MOQ :
1 piece
Price :
1 to 500 usd
Contact Supplier
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON
GARDNER DENVER PZL-B 1600 HP (7500 PSI WORKING PRESSURE), Gardner Denver PZ10 MUD PUMP FLUID END MODULE, LINER, PISTON

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member
6 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Mud Pump Zirconia Liners
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
