Specifications
Brand Name :
Emsco, National, Southwest, Gardner Denver
Model Number :
FC2200
Certification :
API 7K
Place of Origin :
CHINA
MOQ :
1 piece
Price :
1 to 500 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3000 pieces per month
Delivery Time :
In stock
Packaging Details :
Suitable to shipment by sea and air
Usage :
Oil,Water,drill rig
Power :
Electric,diesel
Pressure :
High Pressure,Low Pressure
Application :
Sewage,mining,oil
Structure :
Piston Pump
Fuel :
Diesel,diesel engine and hydraulic motor for option
Standard or nonstandard :
Standard
Type :
Mud Pump
Color :
Green or per customer design
Material :
cast iron/stainless steel mud suction pump,Chrome alloy
Warranty :
12 Months
Product name :
Mud Pump
Oem :
Applicable
Condition :
new
Description

EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
NOV 7500 PSI FC-2200 9” X 15”

ITEM P/ N DESCRIPTION QTY. REQ’D
FLUID END MODULE COMPLETE ASSEMBLY 3
1 0-6323-0108-00 DISCHARGE MODULE-STUDDED 3
3 0-6323-0109-00 SUCTION MODULE-STUDDED 3
4 0-6323-0087-00 THREADED RETAINER 6
5 0-6323-0086-00 THREADED RING 6
6 0-6323-0083-00 VALVE POT COVER 6
7 0-6323-0103-00 VALVE GUIDE W/ BUSHING 6
8 0-6323-0126-00 HANDLER, VALVE POT 3
9 0-6323-0085-00 SUCTION MANIFOLD 1
10 0-6316-0105-95 FLANGE, SUCTION 2
11 0-6317-0074-95 FLANGE, BLIND 2
12 0-6323-0084-10 DISCHARGE MANIFOLD, 7500 PSI 1
13 0-6323-0097-00 WEAR PLATE 3
14 0-6323-0096-00 LINER THREAD RING 6
15 0-6323-0099-00 LINER LOCK 3
16 0-6323-0121-20 FEED PIPING ASSEMBLY 6
17 0-6323-0093-00 RETAINER, VALVE GUIDE 6
18 0-6323-0128-00 SEAL, F. E. MODULAR 2
19 0-6323-0127-00 WEAR PLATE LINER SEAL - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
20 0-7602-1600-52 O-RING (SUCTION MANIFOLD) 3
21 0-7602-1600-61 O-RING (SUCTION MANIFOLD TO F. E.) 3
22 0-7602-1600-30 O-RING (DISCHARGE MANIFOLD TO F. E.) 3
23 0-7501-0051-00 SCREW, RETAINER 6
24 0-7602-5280-72 WIRE, SOFT IRON .06 X 144.00 6
25 0-7601-0331-39 SCREW, HEX HD 1" - 8 X 5.00 72
26 0-7601-0630-20 NUT, HEX 1" - 8 24
27 0-7601-0333-30 SCREW, HEX HD 7/8-9 X 2.50 GR 5 48


EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pumpEMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

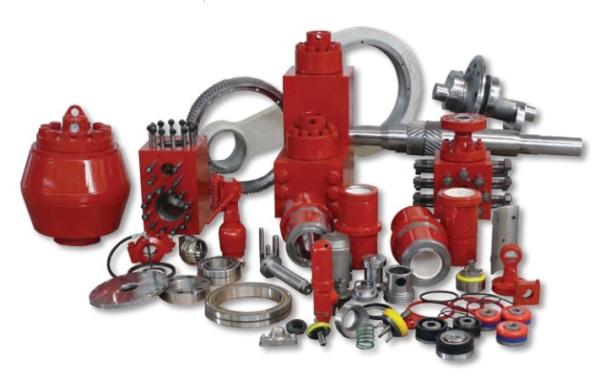

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
8404-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42)
1 1376YXX LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 2930-XX LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) 3
3 8490-28 LINER WEARPLATE (WITH 568-443 O-RING) 3
4 2988 WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) 6
5 XX-BYY PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) 3
6 568-225 PISTON SEAL 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (WITH WATER JACKET) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286CWYFP ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE 3
11C 4020-29 BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 SEE PAGE VALVE 6
14 SEE PAGE VALVE INSERT 6
15 SEE PAGE VALVE SPRING 6
16 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
17 4488-25 VALVE COVER FLANGE 6
18 4588-25 SCREW GLAND 6
19 4690-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 6
20 P115 HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) 6
21 4788-25R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
22 4700I VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) 6
23 4018-18 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 72

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 P.S.I. BOMCO F-1600 7 ½” X 12”

ITEM NO.

PART NO.

DESCRIPTION

 QTY. REQ’D
25 4017-33 POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) 30
26 568-443 WEARPLATE 'O' RING 3
27 6490-25 LINER RETAINER FLANGE 3
28 4019-51 LINER RETAINER CAPSCREW 36
29 6590-25 LINER RETAINER NUT 3
30 4019-61 SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAPSCREW 18
32 8590-6 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD 'O' RING 3
34 8404-26 SUCTION MODULE 3
35 8404-27 DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 8376-25MOD DISCHARGE MANIFOLD 1
38 4019-60 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) 18
39 2988 DISCHARGE MANIFOLD SEAL 3
40 6490-25P LINER RETAINER PULLER 1
41 LW875 LOCKWASHER 7/8 18
42 LW500 LOCKWASHER ½ 12
8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS

SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING
PISTONS LINERS LINER SEALS
SIZE FAIL-SAFE DUAL-DURO® BLACK CAT GRAYLOY® ZIRCONIA RUBBER URETHANE
4" 76BFS 76BDD 76BBC 1376G06 2930-06 2930-06U
4 1/4" 77BFS 77BDD 77BBC 1376G07 2930-07 2930-07U
4 1/2" 78BFS 78BDD 78BBC 1376G08 1376ZIR08 2930-08 2930-08U
4 3/4" 79BFS 79BDD 79BBC 1376G09 1376ZIR09 2930-09 2930-09U
5" 81BFS 81BDD 81BBC 1376G1 1376ZIR1 2930-1 2930-1U
5 1/4" 82BFS 82BDD 82BBC 1376G2 2930-2 2930-2U
5 1/2" 83BFS 83BDD 83BBC 1376G3 1376ZIR3 2930-3 2930-3U
5 3/4" 84BFS 84BDD 84BBC 1376G4 1376ZIR4 2930-4 2930-4U
6" 85BFS 85BDD 85BBC 1376G5 1376ZIR5 2930-5 2930-5U
6 1/4" 86BFS 86BDD 86BBC 1376G6 1376ZIR6 2930-6 2930-6U
6 1/2" 87BFS 87BDD 87BBC 1376G7 1376ZIR7 2930-7 2930-7U
6 3/4" 88BFS 88BDD 88BBC 1376G8 2930-8 2930-8U
7" 89BFS 89BDD 89BBC 1376G9 1376ZIR9 2930-9 2930-9U
7 1/4" 91BFS 91BDD 91BBC 1376G10 1376ZIR10 2974-11 2974-11U
7 1/2" 92BFS 92BDD 92BBC 1376G11 2974-11 2974-11U
NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC.

VALVES & SEATS (BOMCO F-1600)

TYPE

VALVE

INSERT

SPRING

STAINLESS SPRING

SEAT

PULLER HEAD

PULLER HEAD

STYLE
SOUTHWEST (Full Open) 773-1B N/A SW5710-110L N/A 873-1 SWTM3750 SPLIT JAW

FULL OPEN-ROUGHNECK

(Cast N Place Insert)

 SWND-6V2 N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(High Temp)

 SWND-6V2H N/A SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE

FULL OPEN-ROUGHNECK

(w/Replaceable Urethane Insert)

 SWND-6V1 SWND-6I SW5710-115 N/A SWND-6S4

SWTM27SXN

SWND-6PH

SPLIT JAW

PANCAKE
3 WEB DOUBLE ANGLE O-RING SWR0500119 SWR0515845 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D

3 J HOOK
3 WEB (High Temp) SWR0520586 SWR0520585 SWR0513744 SWR0514790 SWR0512436 SWTM3-7D
3 WEB STANDARD PLATE SWR0505038 SWR0504890 SWR0515575 SWR0514790 SWR0512436 SWTM3-7D
4 WEB SWU5B-EH SWUDD-6AB SW5710-115 N/A SW6ADD-B4 SWTM4-6 4 J HOOK

EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 7500 PSI FC-2200 9” X 15”

ITEM P/ N DESCRIPTION QTY. REQ’D
8494-25A FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1 6394GXX LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) 3
2 AJO524S LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE) 6
3 8494-54-1 LINER WEARPLATE BASE 3
4 8494-54-2 LINER WEARPLATE 3
5 4020-36 LINER WEARPLATE CAPSCREW 18
6 XX-BYY PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
7 568-225 PISTON SEAL 3
8 6293-33 PISTON ROD (WITH ELASTIC STOP NUT) 3
9 API-4ESN PISTON ROD NUT 3
10 6293-3 SUB ROD 3
11 6293-4 PISTON ROD CONNECTING STUD 3
12 6293CW ROD CLAMP 3
12A 1200H30 HOSE 3
12B 1200160 PIPE 3
12C 4019-92 ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS 6
13 6200G93 PONY ROD 3
14 SEE PAGE VALVE COMPLETE 6
15 SEE PAGE VALVE INSERT 6
16 SEE PAGE VALVE SPRING 6
17 SEE PAGE VALVE SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) 1
18 4476 VALVE COVER FLANGE 6
19 4597 SCREW GLAND 6
20 4609-25A PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24 6
21 P119 HP VALVE COVER PLUG NITRILE SEAL 6
22 4776R VALVE GUIDE (COMPLETE WITH BUSHING #4700I) 6
23 4700I VALVE GUIDE BUSHING 6
24 4016-98 VALVE GUIDE SCREW 12
25 4015-54 VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) 72
26 4020-42 POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) 24
27 6494-25 LINER RETAINER FLANGE 3
28 4020-43 LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT) 48
29 6594-25 LINER RETAINER NUT 3
30 4020-6 SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) 18
31 4020-27 SUCTION MANIFOLD CAPSCREW 18
32 SUCTION MANIFOLD 1
33 568-442 SUCTION MANIFOLD O-RING 3
34 8494-26S SUCTION MODULE 3
35 8494-27D DISCHARGE MODULE 3
36 8488-5 DOWEL PIN 6
37 2988 MODULE SEAL 3
38 4020-44 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT) 12
39 DISCHARGE MANIFOLD 1
40 568-349 DISCHARGE MANIFOLD O-RING 3


EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump


SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE MODEL OF PUMP SIZE OF PUMP
SOUTHWEST 5000 PSI FB1300/1600 7-1/2” X 12”

ITEM P/ N DESCRIPTION QTY. REQ’D
8490-2A FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39) 3
1 6390YXX LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX) 3
2 AJO428S LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane) 3
3 8490-3 WEARPLATE 3
4 2988 WEARPLATE AND MODULE SEAL (2988U Also available in urethane) 6
5 XX-BYY PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) 3
5A 2932 PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) 3
6 568-225 PISTON O-RING 3
7 6278-25 PISTON ROD (WITH ELASTIC STOP NUT) 3
8 API-4ESN PISTON ROD NUT 3
9 1290-2 PISTON ROD CONNECTING STUD 3
10 6284-1 SUB ROD 3
11 6274CWY ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C) 3
11A 1200H30 HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) 3
11B 1286-CWYFP14 PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END) 3
11C 4020-29 BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) 6
12 1200G74 PONY ROD 3
13 VALVE 6
14 VALVE INSERT (IF REQUIRED) 6
15 VALVE SPRING 6
16 SEAT 6
SWTM1700 HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
4475-2A SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24) 6
17 4475 THREADED FLANGE 6
18 4575 SCREW GLAND 6
19 4675-2A PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) 6
20 P129 HP VALVE COVER PLUG SEAL (P129U Also available in urethane) 6
21 4775-2R VALVE GUIDE (complete with bushing #4700I) 6
22 4700I VALVE GUIDE BUSHING 6
23 4016-99 VALVE GUIDE SCREW 12
24 4015-2 VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT) 72
25 4016-9 POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT) 18
27 6490-3 LINER RETAINER FLANGE 3
28 8422-3 LINER RETAINER PILOT RING 3
29 6590-1 LINER RETAINER NUT 3
30 4016-97 SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT) 18
31 4018-19 SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) 18
32 8590-6 SUCTION MANIFOLD (FRONT OR SIDE INLET) 1
33 568-442 SUCTION MANIFOLD SEAL 3
34 8490-2S SUCTION MODULE (STUDDED ONLY) 3
35 8490-1D DISCHARGE MODULE (STUDDED ONLY) 3
36 8488-5 DOWEL PIN 6
37 8390-50 DISCHARGE MANIFOLD 1
38 568-343 DISCHARGE MANIFOLD SEAL 3
39 4017-46 DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT) 12
40 ESN500 ELASTIC STOP NUT 12
41 LW875 LOCKWASHER 7/8 36
42 9070004 SINGLE LIP PONY ROD SEAL 3
43 9070005 DOUBLE LIP PONY ROD SEAL 3
44 9060012 SPLASH GUARD
8590-6BFA

BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD –

(8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS
6278-74 PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45 1388XX LINER 3
46 2974XX LINER SEAL 3
47 8490-20 LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL 3
48 8488-7 SET SCREW 12
49 6588-22-2 LINER NUT 3

EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160
FLUID END MODULE & ACCESSORIES
ITEM OEM PART MISSION PART DESCRIPTION QTY
# # # RETURN TO: NATIONAL INDEX
FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) 3
1 8476-6S FEM12PSUCSWNS SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) 3
2 8476-5D FEM12PDISSWNS DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) 3
3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
4 PEP55 NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H 18
5 4015-95 NAT12P160PFS STUD, POWER END 30
6 NAT8P80TRSN NUT, POWER END STUD (1 3/8"-6 2H) 30
7 8488-5 PEP70 DOWELL PIN 6
8 4017-65 PEP75 LINER RETAINER CAPSCREW, SOCKET HEAD 18
9 8476-3 PP6021260SW LINER WEAR PLATE 3
10 2988 1290344 WEAR PLATE AND MODULE GASKET 6
11 6476 12PLASW LINER RETAINER FLANGE (LINER BUSHING) 3
12 6576 12PLANSW LINER RETAINER NUT 3
13 4015-54 12PTRSSW STUD, THREADED RING 72
14 12P160TRSN NUT, THREADED RING STUD (1 1/2"-6 2H) 72
15 4676-6A 12PVGASWNS PLUG (INCLUDES ITEMS 15, 19, 20, & 21) 6
16 4476 12PFLGSW THREADED RING (THREADED FLANGE) 6
17 4597 12PCAPSW THREADED CAP (SCREW GLAND) 6
18 P-119 07207119 VALVE COVER PLUG SEAL 6
19 4776R 12PVGSWNS VALVE GUIDE (INCLUDES ITEMS 19-21) 6
20 4700-I PZ789VGI VALVE GUIDE BUSHING 6
21 4016-98 PEP73 VALVE GUIDE SCREW 12
22 4018-19 700048511 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
23 AJO-419R 1540851 SUCTION MANIFOLD GASKET 3
24 8376-2 NAT12PDSMA DISCHARGE ADAPTER 2
25 2976-2 2410031437 DISCHARGE ADAPTER SEAL 4
26 8376-1 NAT12PDSMC DISCHARGE CONNECTOR 2
27 2976-1 2410031433 DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL 2
28 80852292 1292258 DISCHARGE SPACER FLANGE SEAL 2
29 4018-18 700030711 DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) 16
30 8376-3 1292175 BACKUP RING-(DISCHARGE CONNECTOR) 4
31 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3 16

Product tags

sewage pump truck manufacturers

,

marine pump parts

,

diesel pump repair parts
Send your message to this supplier
Send Now

EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

Ask Latest Price
Product Detail
Brand Name :
Emsco, National, Southwest, Gardner Denver
Model Number :
FC2200
Certification :
API 7K
Place of Origin :
CHINA
MOQ :
1 piece
Price :
1 to 500 usd
Contact Supplier
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump
EMSCO FC2200 mud pump, EMSCO FB1600 mud pump, National EMSCO mud pump liner, Drillmec Mud pump, Texma, TSC mud pump

Qingdao National Premium Oilwell Machinery Co.,Ltd

Site Member
6 Years
shandong, qingdao
Since 2007
Business Type :
Manufacturer, Distributor/Wholesaler, Importer, Exporter, Seller
Main Products :
Mud Pump Chrome Liner, Mud Pump Zirconia Liners, Mud Pump Pistons
Total Annual :
1-5000000
Employee Number :
1~150
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products EMSCO Mud Pumps
MachineU China Products Machinery Energy & Mineral Equipment Oil Field Equipment Mud Pump
Contact Supplier
Submit Requirement
