Wrinkle Surface Pre-Painted Aluminium Coils Sheets For Roof And Curtain Wall

Pattern Designed Pre-painted Aluminum:

Dingang has developed brick,wood,stone,camouflage and special patterns of pre-painted aluminum decorative plate.It has the characteristics of vivid texture,easy-shaping,anticorrosion,energy conservation&environmental protection,easy installation and safety.It is excellent replacement of traditional stone and glass as decorative materials.

Pattern Designed Pre-painted Aluminum Specifications :

Alloy : AA1060,3003,3005,3105,5052 and etc
Temper : H16/ H24 ( All According Customers' Requirement )
Standard : ASTM,JIS,DIN,EN,ISO,GB And Etc
Thickness : 0.20 mm - 3.00mm
Width : 30 - 2650 mm
Thickness Paint Layer : ( PVDF ) more than 25 micron ; ( PE ) more than 18 micron
Interior Diameter : 405 mm,505 mm,150 mm etc

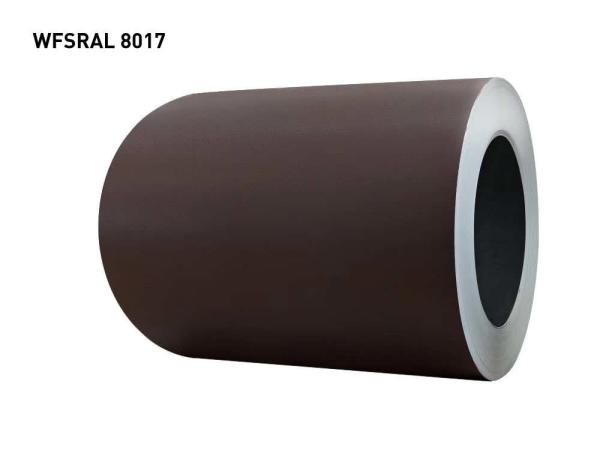

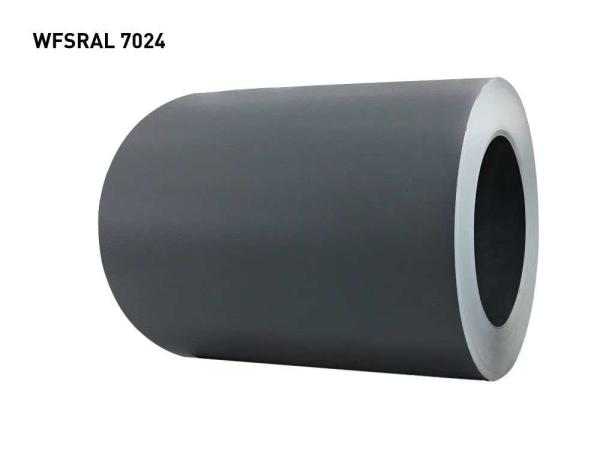

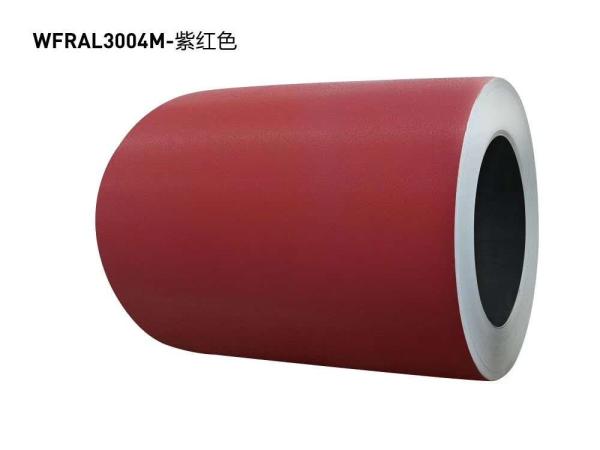

Color : Ral Color Code Or As Per Clients Requirements And Sample

Design Pattern: Wood,Marble,Stone Wrinkle and so on

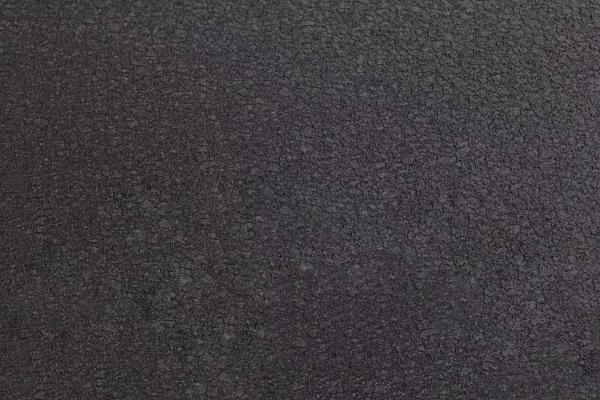

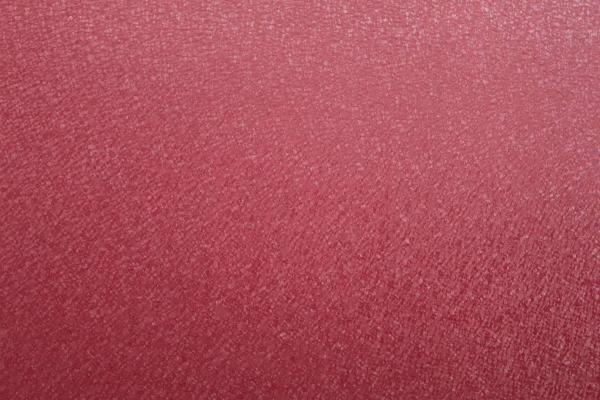

Surface: Wrinkle,Hairline and diamond-type
Coating Hardness : More Than 2H ( pencil hardness )
Impact Resistance : No Cracking And Peeling ( 50kg / cm , ASTMD - 2794 : 1993 )
Flexibility ( T-bend ) : No More Than 2T
MEK Resistance : More Than 100

3D Effect Grain Aluminum:

3D effect pre-painted metal material has the appearance of wood,hand feeling of the concave-convex formed by time and various textures.It has the advantages of thermal insulation,heat preservation,good leakproofness.Meanwhile,it has the characteristics of stable performance&anti-corrosion.

Coating Production Lines On Pattern Designed Pre-painted Aluminum:

Packing Of Pattern Designed Pre-painted Aluminum:

Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)

Wrinkle Surcee Pre-Painted Aluminium Coils Applications:

Metal Roofing Building & Roller Shutter Door & Building Wall Decoration

Roofing,Cladding,Shutter Door,Ceiling,Household Appliances,Container,Advertaisement and etc.
