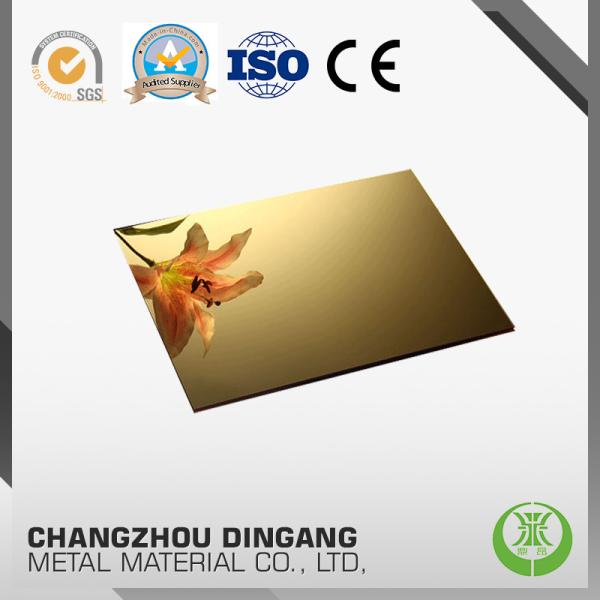

1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
Specifications
Brand Name :
Dingang - MAP
Model Number :
GB 2794-81-84
Certification :
SGS,BV,ITS
Place of Origin :
China
MOQ :
500 Kilograms
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Metric Tons/Per Month
Delivery Time :
Within 15-20 Days After Order Confirmed
Packaging Details :
Standard Seaworthy Packing With Wooden Pallet
Aluminum Alloy: :
AA1070, AA1085
Aluminum Thickness: :
0.17-1.50mm
Aluminum Types: :
Coil,Sheet,Strip Or Corrugated
Surface Treatment: :
Laminate, Polished, Anodized
Aluminum Width: :
30-1500mm (Usual:1000mm,1200mm,1250mm)
Useful Life: :
10 Years Indoor, 2 Years Outdoor Under Sunshine
Surface Reflectivity: :
Reach 86%,Diffuse Reflection Less Than 12%
Weight Of Pallet :
1~3 Metric Tons
Description

1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate

Introduction Of Aluminum Mirror Sheet

Aluminum mirror finish sheet, we also called it reflective aluminum sheet. The base material is bare aluminum sheet, and then we make a special treatment on the surface of aluminum sheet and stick a layer of high quality reflective material. The production are well and widely used in lights and lampshade, grille lamp line.

Specification:

■Standard: GB 2794-81-84

■Alloy: 1060, 1085, 3003, 5052, 8011 And Etc

■Thickness: 0.17-1.50mm

■Width: 30-1500mm (Usual:1000mm,1200mm,1250mm)

■Surface Treatment: Laminate, Polished, Anodized

■Useful Life: 10 Years Indoor, 2 Years Outdoor Under Sunshine

■Surface Reflectivity Reach 86%,Diffuse Reflection Less Than 12%

■Coil Weight: 1-3ton

Types of Mirror Aluminum:

No. Type Features Alloy/Temper
1 Laminate Stick a layer of high reflective vacuum zincification compound materials, strength of adhesive meets requirements of GB 2794-81-84 1060& 3003/H14/H18/H16/H24
2 Polished Surface treatment by polished 1060& 3003/H14/H18/H16/H24
3 Anodized 1-4 micron oxidation film 1085/H14/H18/H16/H24

1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
Mirror Aluminum Coil Mirror Aluminum Sheet

Anodized Mirror Aluminum:

Alloy

%

T.S

Rm/MPa

Y.S

Rp0.2/MPa

 Elongation

Total Reflectance

%

Diffuse Reflectance

%

 Iridescence Description
99.85 130 115 2 86 ≤12 1 Specular

This data sheet is as a guide only. Total reflectance is measured according to DIN5036-3. Guage tolerance is within 1/2 of AA standard. Protective tapes are recommended for all items.

Iridescence classification

1= low iridescence

2= very low iridescence

3= No Iridescence

Product Applications:

I. Lighting: Such as grille lamp, lampshade, grille, diffuser of fluorescent lam

II. Reflector plate of solar energy

III. Exterior of construction

IV. Interior decoration, such as aluminum buckle plate, ceiling, curtain wall

V. Elevator

VI. Nameplate,

VII. The face panel of household appliance, microwave oven, refrigerator, etc.

1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate

Packing:

Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)

1.00mm Thickness Aluminum Alloy 1085 1070 H14 Aluminum Mirror Sheet With Anodizing Process Used For Nameplate
