Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
Specifications
Brand Name :
Dingang
Model Number :
Color Coated Aluminum Coil
Certification :
SGS,ITS,BV
Place of Origin :
China
MOQ :
1000 Kgs / 1 Metric Ton
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
5000 Tons / Per Month
Delivery Time :
Within 35 Days After Order Confirmed And Down Paymetn Received
Packaging Details :
Seaworthy Packing With Wooden Pallet
Sample :
Freely
Alloy :
1060,1100,3003,3004,3105,5052 and etc
Paint Coating Type :
PE,Pvdf
Alloy Or Not :
Is Alloy
Craftsmanship :
Cold Drawn
Coated Layer :
2 top/2 back or 2 top/1back
Color :
Customized
Coil Inner Diameter :
Φ508mm orΦ610mm
Thickness Tolerance :
+/-0.01mm
Bending Resistance :
≥100mm
Description

Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets


The Alloy 3003 0.8mm Color Coated Aluminum Coil is an ideal material for solar panel mounting brackets, offering lightweight durability (0.8mm thickness) and excellent corrosion resistance due to its manganese-enhanced 3003 alloy composition . The coil features a PE/PVDF coating (16–32 μm thickness) in customizable colors (e.g., silver, woodgrain), providing UV resistance and long-term weatherproofing for outdoor applications . Its H12/H22 temper ensures balanced strength and formability for structural support . With a width range of 1,000–2,000mm , it simplifies installation while meeting strict mechanical requirements (e.g., peeling strength, impact resistance) for renewable energy systems . This eco-friendly solution aligns with sustainable energy infrastructure needs.


Key advantages include:

  1. Corrosion resistance ensures long-term durability
  2. Lightweight for easy installation and structural support
  3. Prepainted coating enhances weather resistance
  4. High formability enables complex bracket shaping
  5. UV-resistant surface maintains color stability
  6. Complies with ASTM standards for reliability
  7. Cost-effective solution for solar infrastructure

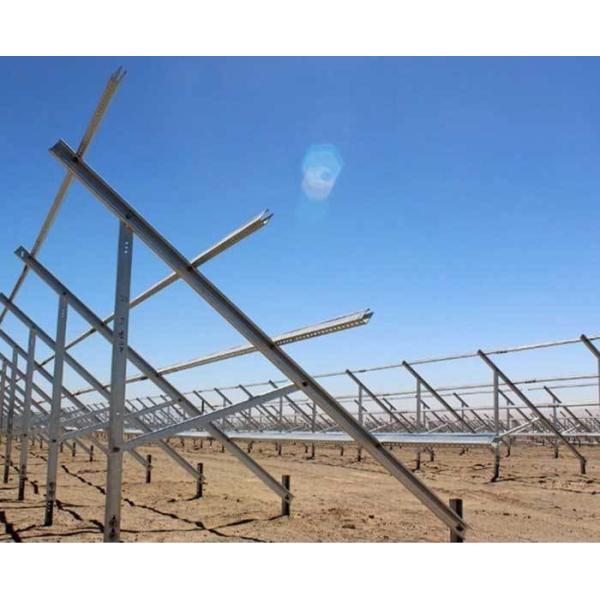

Application


Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets

About Prepainted Aluminum Coil


Prepainted aluminum coil, which is produced with aluminum sheet or (aluminum coil) and processed by coating with color. In common sense,

there are two kinds of prepainted aluminum coil-PVDF and PE, which are widely used in aluminum plate, aluminum veneer, aluminum

honeycomb panels,aluminum ceiling, shingles, scrap, pop-top, electronics.


PVDF coatings are known for their durability and weather resistance. They provide a smooth and glossy finish, making them suitable for

architectural applications. PVDF coated aluminum coils are available in a wide range of colors and are often used for exterior cladding,

roofing, and signage.


PE coatings offer good UV resistance and color retention. They are commonly used for interior applications where extreme weather

resistance is not required. PE coated aluminum coils are available in a variety of colors and are used for indoor decorations, ceiling panels, and more.




Product Parameters


Product Prepainted Aluminum Coil / Color Coating Aluminum Sheet
Thickness 0.2-3.0mm
Width 30-2750mm (ultra-wide color coating aluminum sheet in coil)
Material 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8011 etc
Temper O, H12, H14, H16, H18, H24, H26, H32, H34, etc
Inner Diameter 405mm,508mm,610mm
Color RAL, Pantone Color Or As Alient’s Demand
Coating thickness PVDF Paint Coating: Not Less Than 25um
PE Paint Coating Not Less Than 18um
Packing Wooden Pallets (Eye To Wall,Eye To Sky)
Payment Terms L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy.
MOQ 3 Tons Per Specification
Delivery Time Within 30-45 Days
Loading Port Shanghai
Application Aluminum/Roofing/ACP/Roller/Shutter/Window/Roller Shutter/Door/AluminumCeiling/AluminumGrilling/AluminumDownspoutSystem/Home Appliance’s Plate/Body tank of cold chain truck/High speed rail/Aluminum pull ring/Food packaging/Outer packing case of cap




Product Advantages

1.High flatness: the surface is flat and smooth, without obvious defects such as unevenness, wavy deformation, indentation or bulging.
2.Uniformity of colour: The colour is uniform and consistent, with no obvious colour difference.
3.Strong coating adhesion: good adhesion between the coating and the aluminium coil substrate makes it difficult for the coating to flake, peel or lose paint.
4.Good weather resistance: PVDF coatings have a colour stability of more than 20 years compared to 10-15 years for polyester coatings. 5.Strong corrosion resistance: The natural oxidation layer of aluminium combined with a protective coating such as PVDF ensures long term durability in harsh environments.
6.Malleability: complex bending and forming without cracking.

Product Show


Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets Alloy 3003 0.8mm Prepainted Aluminium Coil for Solar Panel Mounting Brackets
