Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding
Specifications
Brand Name :
WELLYOU
Place of Origin :
CHINA
MOQ :
1M2
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000M2 per month
Delivery Time :
15-30days
Packaging Details :
in bulk or wooden case
Type :
Plate,Sheet,Plate/Coil
Surface treatment :
customer request
Color :
Color / silver
Material :
Aluminum Material
Length :
Custom Length
Product Name :
solid aluminum sheet
Description

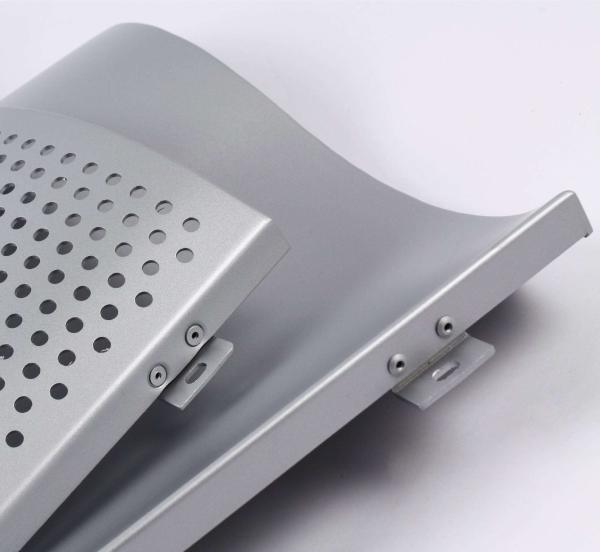

Water - Based Ceramic Solid Aluminum Sheet

Water-based ceramic sprayed aluminum sheet is aluminum after processing, after degreasing cleaning decontamination, and then chemical treatment into dense oxide film, and finally sprayed with a layer of water-based ceramic green paint, leveling baking made of architectural decoration with color spray Aluminum sheet. Its performance indicators are through the National Construction Engineering Materials Quality Supervision, Inspection and Testing Center.

Product specifications:

Aluminum dimensions: thickness 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Width:1000mm-1900mm length:≤ 6000mm

Finished products size: Machinable molding length ≤ 6000mm, width ≤ 1500mm, height ≤ 1.9mm.

Special Size: Conventional circular plate forming radius ≥ 150mm Special can make modle.

Punching hole punching aperture ≤ 80mm hole shape, size, spacing can be customized according to customer requirements.

Water - Based Ceramic Solid Aluminum Sheet Alloy 1100H24 3003h24 Curtain Wall Cladding

Product Advantage
01
The product has a wider range of gloss 5 to 95, the surface evenness better.
02
The product has a higher coating pencil hardness, up to 5H or more (no scratches), with excellent scratch resistance, abrasion resistance.
03
A-class fire performance, high temperature does not produce toxic fumes.
04
High temperature, acid corrosion, high weathering and self-cleaning function.
05
Repairable new material, specially is suitable in the rail transit system.
Product Application

Comparison Of Water Sprayed Solid Aluminum Sheet And Ceramic Steel

Category Water Sprayed Solid Aluminum Sheet Ceramic Steel
Colour Colorful Color limited
Coating method Air,electrostatic spraying High temperature sintering
Baking temperature 250~260℃ 250~260℃ 800~1000 ℃
Cost of production High Especially high
Corrosive resistance The same life with the building Difficult to repair,easy to rust
Sales price 300~500RMB/M2 1000RMB/M2about

Comparison of waterborne paint and solvent-borne paint fluorocarbon sprayed solid aluminum sheet coationgs

Category Waterborne paint Solvent-borne fluorocarbon paint
Condition water soluble type Solvent type
VOC% ＜200/ L ≥500/ L
Dry ℃/min 200~220/20~30 220~280/20~30
Emission Limited items Limited items
Luster60G High light about 80 ° High light about 80 °
Hardness 5H H
Flammability resistance A1 B
Hazardous classification of tobacco production AQ1 ZA
