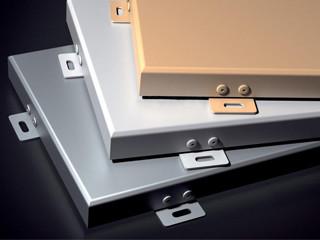

Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet
Specifications
Brand Name :
WELLYOU
Place of Origin :
CHINA
MOQ :
1M2
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000M2 per month
Delivery Time :
15-30days
Packaging Details :
in bulk or wooden case
Type :
Plate,Sheet,Plate/Coil
Surface treatment :
customer request
Color :
Color / silver
Material :
Aluminum Material
Length :
Custom Length
Product Name :
solid aluminum sheet
Description
Fluorine Silicon Sprayed Solid Aluminum Sheet

Fluorine silicon sprayed solid aluminum sheet is the real stone grain reflection to the aluminum sheet, solid aluminum sheet to achieve realistic decorative effect of stone. The products used in the paint, including primer, Caesar top paint, varnish are water-based high fluorine fluorine-resistant coating system.

Product specifications:

Aluminum dimensions: thickness 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Width :1000mm-1900mm length: ≤ 6000mm

Finished products size: Machinable molding length ≤ 6000mm, width ≤ 1500mm, height ≤ 1.9mm.

Special Size: Conventional circular plate forming radius ≥ 150mm Special can make modle.

Punching hole punching aperture ≤ 80mm hole shape, size, spacing can be customized according to customer requirements.

Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet

Color choice

Fluorine Silicon Sprayed Aluminum Sheet Metal , Aluminum Cladding Sheet

Test item Requirements of standard Result
Film thickness

Average≥40μm

Min≥34μm

Average45μm

Min38μm
Dry-film hardness ≥1H 2H
Gloss value Gloss value＜30 Gloss Tolerance±5

Gloss value26.9-31.2

average28.6
30≤Gloss value＜70 Tolerance±7
Gloss value≥70 Tolerance±10
both the aluminum should be no crack. Coating without loss and craze both the aluminum no crack. Coating without loss and craze

Film adhesion

 Drying adhesion Class0 Class0
Wet adhesion Class0 Class0
Boiling water adhesion Class0 Class0
Hydrochloric acid resistance No change No change
Nitric acid resistance No changes such as blistering,△E≤5.0 No changes such as blistering, △E=5.0
Mortar resistance No change No change
Solvent resistance No base exposed No base exposed
Salt spray resisitance(4000h) No lower than grader 1 Class1
Humidity resistance(4000h) No lower than grader 1 Class1
(4000h)artificial weathering Colour retention △E≤3.0 0.6
Gloss retention ≥70% 89%
Others No lower than grader 0 Class0

Product Advantage
01
Fluorocarbon coating aluminum sheet has all the physical and chemical properties and advantages.
02
Realistic stone pattern effect, bump effect, enriches the individual selection of the stone pattern by the curtain wall designer.
03
Siloxane bond cross-linked, with high adhesion and high weathering properties.
04
This product with water as a solvent, reducing the operation of the health of workers harm.
05
Paint only need a lower drying temperature can be cured, lower energy consumption.
06
Light weight, fire, easy to install features, aluminum recyclable.
