Specifications
Brand Name :
HUIYI
Model Number :
ASTMB209
Certification :
ISO9001
Place of Origin :
China
MOQ :
25tons each thickness
Price :
Negotiation
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 tons per month
Delivery Time :
15-35days
Packaging Details :
water proof paper & plastic film & protective steel sheet & protecting plate of inner & side panel & outside and inside diameter ring & metal band strapping & circumferential bands in steel
Product Name :
Single-Sided Aluminum Foil
Application :
Apartment
Type :
Insulation Material For Building
Material :
Aluminum foil, Kraft Paper, Scrim
Width :
4ft
Length :
125ft
Area :
500sqft
Roll Core :
38MM
Description

Single-Sided Aluminum Foil Insulation Paper Insulation Foil Roof Insulation

Single Sided Aluminum Foil Insulation Paper For Roof

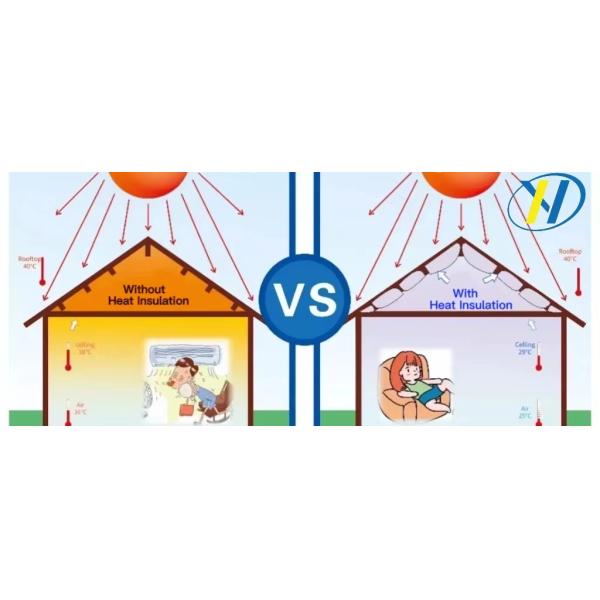

The material provides excellent insulation: reflects up to 97% of radiant energy in addition to resisting other types of heat
transfer from conduction,convection,and radiation.The side of metalized PET/Alu forms an effective barrier against moisture,air
currents and vapors.It is economical solution in many field.

Specifications

Application

Apartment, Construction

Materia

Aluminum foil,Kraft Paper,Scrim
Adhesive

Sollvent acrylic or water acrylic or rubber adhesive

Thickness

15, 30, 40, 50 Micron

Package

Cut roll : printed core and shrink wrapping +carton

Log roll: cardboard wrapping + carton +pallet

Jumbo roll: plastic film + corrugated board wrapping + wooden case.

Technical Data Sheet

Property
Unit
Value
Test Method
Total Thickness
(Backing+Adhesive)
Micron
150
PSTC-33 / ASTM D3652
Peel Adhesion
N/25mm
15
PSTC-1 / ASTM D3330
Tack Rolling Ball
cm
20
PSTC-6 / ASTM D3121
Tensile Strength
N/25mm
250
PSTC-31 / ASTM D3759
Elongation
%
5.0
PSTC-31 / ASTM D3759
Service Temperature
-10 ~ +120
----
Applying Temperature
+10 ~ +40
----

Alu foil introduction:

Aluminium foil has anti - leakage, fresh, anti - counterfeiting, anti - theft, anti - moisture and other functions, but also has a good antibacterial ability. It ’s an ideal material for packaging products. capacitor making field, construction field, ornament field, printing field and household packing, the main products of our company as follows: cigarette foil, golden foil paper, food foil, capacitor foil, medical foil, beer foil, housing foil and soft packing foil for aluminum foil manufacturer.

The manufacturing process of alu foil :

Single Sided Aluminum Foil Insulation Paper For Roof

Mechanical properties of Alu foil :

Thickness (mm) Tensile Strength(Mpa) Elongation %
0.009-0.0099 45-100 ≥0.5
≥0.010-0.011 50-110 ≥1.0
>0.011-0.012 50-110 ≥1.5
>0.012-0.013 50-110 ≥1.7
>0.013-0.014 50-110 ≥1.8
>0.014-0.016 50-110 ≥2.0
>0.016-0.018 50-110 ≥2.2
>0.018-0.020 50-110 ≥2.5
>0.020-0.022 50-110 ≥2.8
>0.022-0.025 50-110 ≥3.0

Chemical components of Alu foil :

Alloy Si Fe Cu Mn Mg Zn Ti Others Al
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 - 0.1 0.08 Rem

Here are the loading and application picutres of alu foil:

Single Sided Aluminum Foil Insulation Paper For Roof

Single Sided Aluminum Foil Insulation Paper For RoofSingle Sided Aluminum Foil Insulation Paper For Roof

Alu foil features :

Aluminum foil has a clean, sanitary and shiny appearance, it can be integrated with many other packaging materials packaging materials, and aluminum foil surface printing effect is better than other materials.

Alu foil advantage :


1. The surface of the aluminum foil is extremely clean and hygienic, and no bacteria or microorganisms can grow on its surface.


2. Aluminum foil is a non-toxic packaging material, it can be in direct contact with food without any worries that can endanger human health.


3. Aluminum foil is a tasteless and odorless packaging material, which will not cause any peculiar smell to the packaged food.


4. No matter in high temperature or low temperature, there will be no grease penetration in aluminum foil.


5. If the aluminum foil itself is not volatile, it and the packaged food will never dry or shrink.


6. Aluminum foil has good plasticity, so it can be used to package products of various shapes. Various shapes of containers can also be arbitrarily formed.


7. Aluminum foil is an opaque packaging material, so it is a good packaging material for products exposed to sunlight, such as margarine.

FAQ:

1. If you want to get a quotation ,what information need be provided to you?
A: Size(Width*Length*Thickness), color and the quantity demand and any other needs.

2. When can I get price after I send an enquiry?

A: We can guarantee that you can have the price as soon as possible
