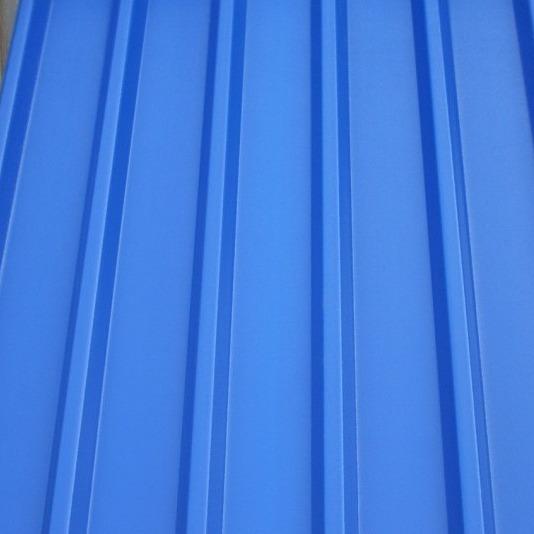

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
Specifications
Brand Name :
HUIYI
Model Number :
SPCC ， SPCD ， SPCE ， DX51 / 52 / 53 / 54D + Z Q195 / 215 / 235 And etc
Certification :
SGS,BV,ISO9001
Place of Origin :
China
MOQ :
25 tons each thickness
Price :
negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000 tons per year
Delivery Time :
20-35days
Packaging Details :
Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet
Production name :
G550 Roofing prepainted Galvalume metal for building material
Color :
Red,Green,Blue,Grey,White,Brown,Black,Yellow，Maroon，Orange ,etc.
Paint Brand :
Akzo Nobel,Dulux,Nippon,PPG,Local
Front Paint Coating :
11-35um
Back Paint Coating :
5-20um
AL-ZN Coating :
AZ30-AZ150
Corrugated width :
680mm or other required size
Thickness :
0.12--1.5mm
Coil ID :
508/610mm
Surface treatment :
Coated, Galvanized, Printing ,galvalume
Application :
Roofing, transportation, Building Construction, Boiler Plate
Standard :
GB, ASTM, JIS, AISI, BS
Description

G550 Roofing PPGL prepainted galvalume steel coil for building material

Specification of prepainted galvalume steel coil :

■ Grade : SPCC , SPCD , SPCE , DX51 / 52 / 53 / 54D + Z , Q195 / 215 / 235 And Etc

■ Coating Thickness : Min. Single Side - 30 g / sqm Max. Single Side - 200 g / sqm

■ Top Painting : 11 - 35 micrometer,based on customers' requirements

■ Back Painting : 5 - 10 micrometer,based on customers' requirements

■ Surface Finished Color : According To RAL Standard or customers' samples

Characteristics of prepainted galvalume steel coil :

Color Coated Steel Feature Excellent Decorativeness , Bendability , Corrosion Resistance, Coating Adhesion And Color Fastness .

They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation , Conservation Of Energy And Resistance To Contamination .

Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti - Scratch Qualities , Can Be Produced In Various Colors , And Has Credible Quality And Can Be Mass - Produced Economically.

Common roofing size based on prepainted galvalume steel coil as below:

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing

Here comes some coil sizes of prepainted galvalume steel coil we exported to other countries as below:

SHANGHAI HUIYI INTERNATIONAL CO.,LTD
Room 710,No.188,ChangYi Road,Baoshan District,Shanghai,China.
WOODEN PPGL EXPORTING SIZES
Size Zinc Coating Paint coating Color Paint Brand Application Export Countries
0.18x914 AZ30-AZ60 15-20um

white,red,blue,green,

grey,yellow,brown,ral colors and etc

Akzo nobel ,Nippon,Dulux,PPG,

wanbo,zhengniang,

wente and etc

 Roofing metal,roller shutter doors,cold storage door cold bed,warehouse,factory, household electrical appliances and etc.

Singapore,Malaysia, Thailand,Brunei,

Dubai,

The Philippines, Ukraine
0.20x914 AZ30-AZ60 15-20um
0.22x914 AZ30-AZ60 15-20um
0.28x914 AZ30-AZ60 15-20um
0.30x914 AZ30-AZ60 15-20um
0.32x914 AZ30-AZ60 15-25um
0.36x914 AZ30-AZ60 15-25um
0.38x914 AZ60-AZ80 15-25um
0.40x914 AZ60-AZ80 15-25um
0.46x914 AZ60-AZ80 15-25um
0.47x914 AZ60-AZ80 15-25um
0.40x1220 AZ60-AZ150 20-30um
0.48x1220 AZ60-AZ150 20-30um
0.50x1220 AZ60-AZ150 20-30um
0.54x1220 AZ60-AZ150 20-30um
0.60x1220 AZ60-AZ150 20-30um
0.80x1220 AZ80-AZ150 20-30um
1.00x1220 AZ80-AZ150 20-30um

Here comes loading pictures of prepainted galvalume steel coil roofing sheets as below:

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing

G550 680mm Blue Color Coated Prepainted galvalume Steel Coil Roofing
