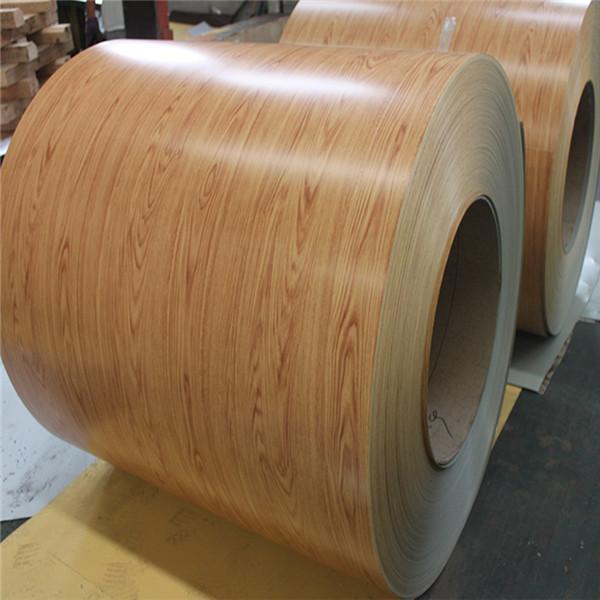

JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
JIS Color Coated PPGL Coil 600mm-1500mm 1000-12000mm
Specifications
Place of Origin :
Shandong,China
Brand Name :
rigang
Model Number :
Color coated steel coil
Packaging Details :
PVC+ waterproof paper + strong sea-worthy wooden package
If you need samples, we can provide them free of charge
Supply Ability :
5000 Ton/Tons per Month
MOQ :
3 Tons
Price :
Discuss
Certification :
MTC ISO9001
name :
PPGL Coil
Standard :
GB, JIS
Type :
Steel Coil,
Technique :
Hot Rolled, Prepainted
Surface Treatment :
Coated
Width :
600mm-1500mm
Length :
1000-12000mm
Tolerance :
±3%
Processing Service :
Punching, Polishing
Application :
building.
Description

JIS Prepainted PPGL Coil for building , 600mm-1500mm Width PPGL

PRODUCT DESCRIPTION

PPGL Stand For?

  1. The full name of PPGL is pre-painted galvalume steel, also known as color coated steel.
  2. PP is short for pre-painted;
  3. GL is short for galvalume;

Product Description

Grade CGCC,CGCH,G550,DX51D,DX52D,DX53D
Thickness 0.12-4.0mm
Width 600-1500mm
Length 1000-12000mm
Zinc Coating Z40-600 g/m2
Coating Thickness Top-15-35, Back 5-15
Color RAL Color
Surface

Matt,High gloss,Color with two sides,Wrinkle,

Wooden color,Marble
Coil Weight 2-5tons
Chemical Composition
Grade C≤ Mn P≤ S≤ Si≥ Cr≤ Cu≤ Mo≤ Ni≤ V≤
A 0.25 0.27-0.93 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08
C 0.35 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08

How To Choose PPGL?

When choosing PPGL steel coils, thickness, and color are usually considered.

You also need to pay attention to the mechanical properties of the substrate, such as yield strength.

The weight of the zinc coating of the galvanized steel sheet, the painting performance of PPGL (thickness,

powder resistance, durability) and the type of painting, etc.
